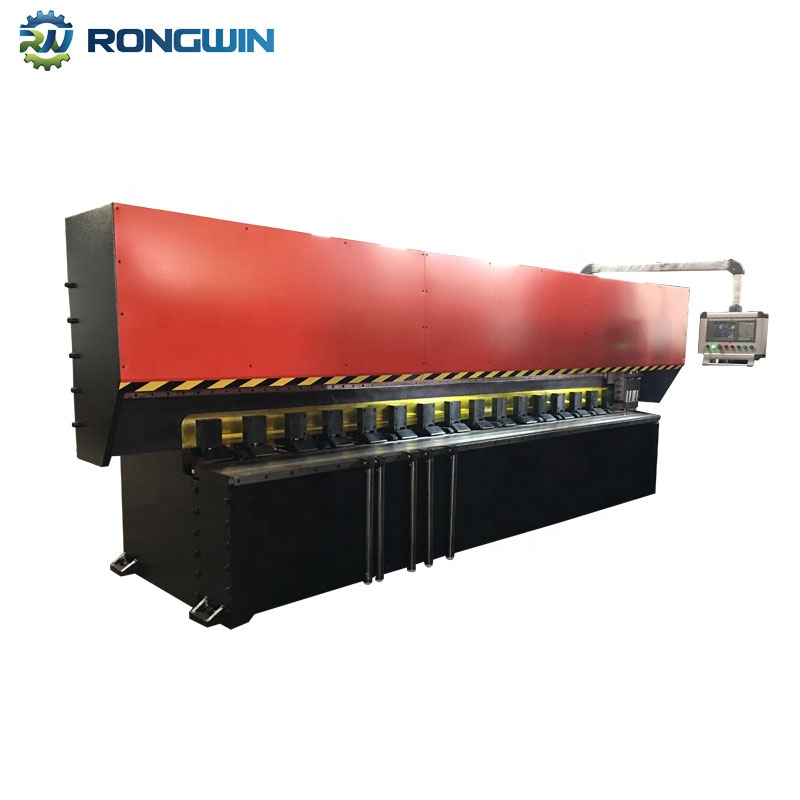

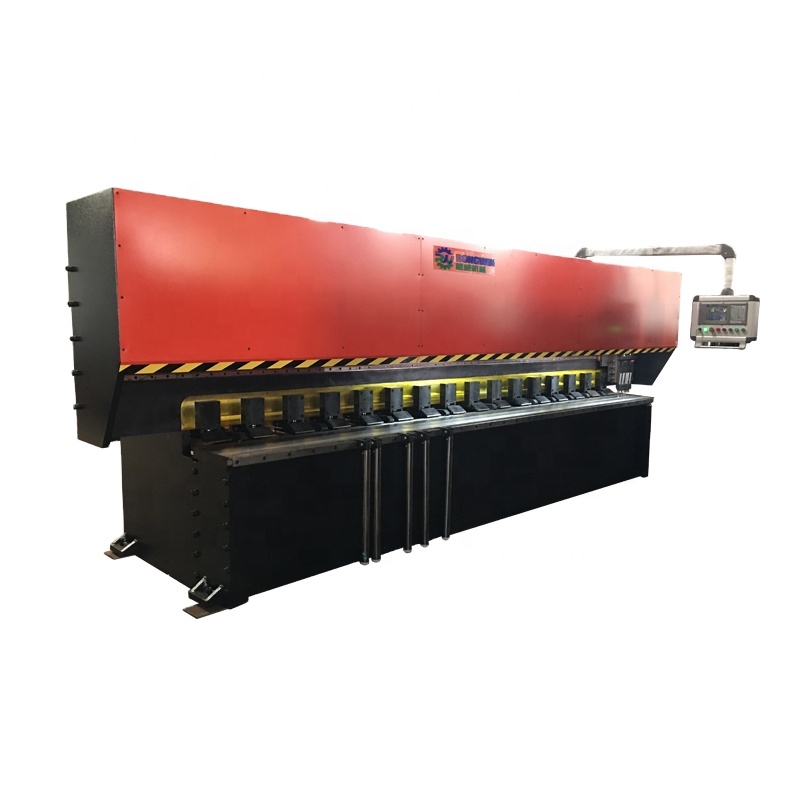

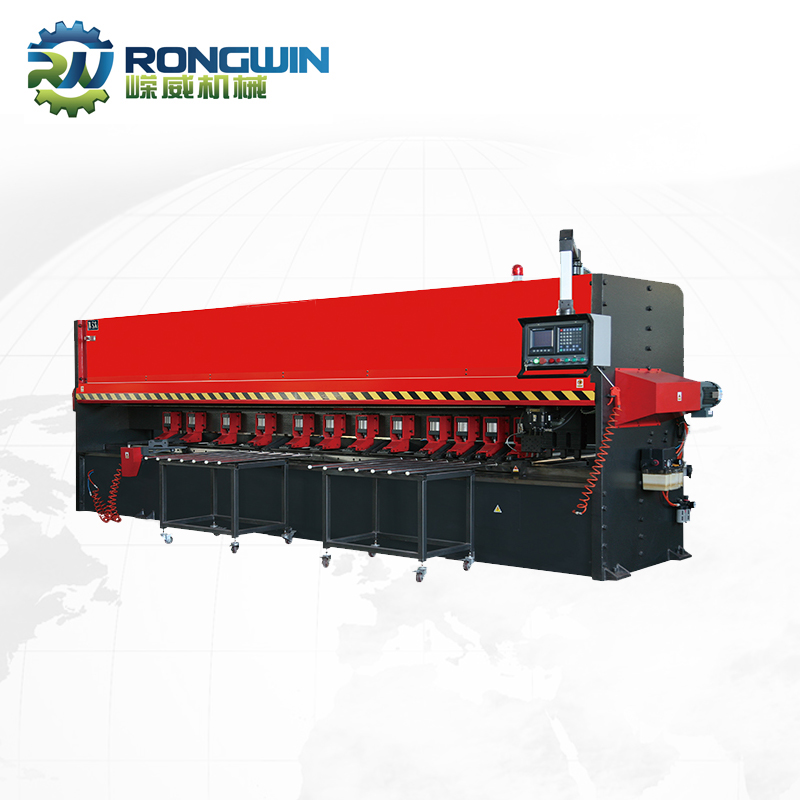

V Grooving Machine

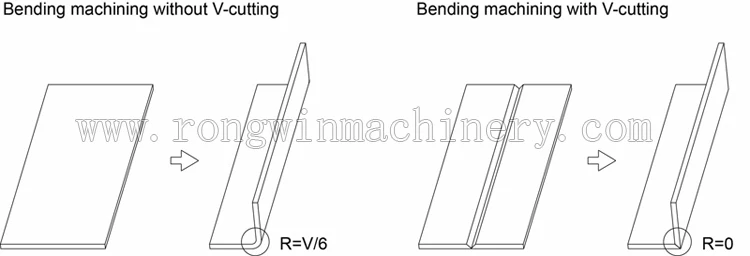

Product Description Rongwin vertical style CNC hydraulic V grooving machine is widely used in the sheet metal V groove,U-groove and other irregular groove processing,which is including stainless steel,aluminum,aluminum plate,copper,iron,plastic,wood,acrylic panels and other special plates.Particularly,it is can applicable to the V-groove processing of sheet metal before bending.Our CNC V grooving machine (V slotting machine, planer, stainless steel V-slot machine) is suitable for industries that require high-precision processing of plates, such as elevators, mounting materials, stainless steel processing, household appliances, and prop display. It is designed and manufactured according to the special needs of the middle and high-end decoration industry, elevator manufacturing and other industries. It can perform V-shaped grooves on stainless steel sheets, iron plates, copper plates and other materials. New metal sheet groovers such as Special special accessories can also perform work such as grinding, polishing, and wire drawing on thin metal sheets and profiles.

Products feature

1,Our machine use structure design,Overall rigidity,small deformation.2,This machine beam is fixed,has feeding system,worktable levelness is within ±0.03mm.
3Blade rack move right and left by synchronous belt,V-cutting process is very stable,and the cutting surface is smooth.

Machine specification

Series No.	Items	Specification
1	Model	Vertical style 1500×4000
2	Metal thickness the machine can work	0.4-6mm
3	Metal Length *Width	1500x4000mm
4	V cutting speed	5M-70M/min
5	Back feeding device moving	0.5-20M/min
6	X axis minimum setting unit	0.01mm
7	X axis Positioning accuracy	±0.02mm
8	Y axis minimum setting unit	0.01mm
9	Y axis Positioning accuracy	±0.02mm
10	Z axis minimum setting unit	0.01mm
11	Z axis Positioning accuracy	±0.02mm
12	X axis motor power	1.5KW
13	Y axis motor power	3KW
14	Z axis motor power	0.4KW
15	Workbench flatness	±0.01mm
16	Material Feeding style	Backside feeding
17	Worktable style	Bolted style
18	V cutting blades quantity	5 pieces of white steel
19	Max depth for one time V cutting	1.2mm

CNC system and other configuration
Series No.	Items	Make brand
1	Ball screw	Taiwan HIWIN brand
2	Linear guide	Taiwan HIWIN brand
3	Angular Contact Ball Bearings	Japan NSK
4	Servo motor	Taiwan HUST brand
5	Electric components	Schneider brand
6	Servo driver	Taiwan HUST brand
7	CNC operating system	Taiwan HUST brand

Detailed Images

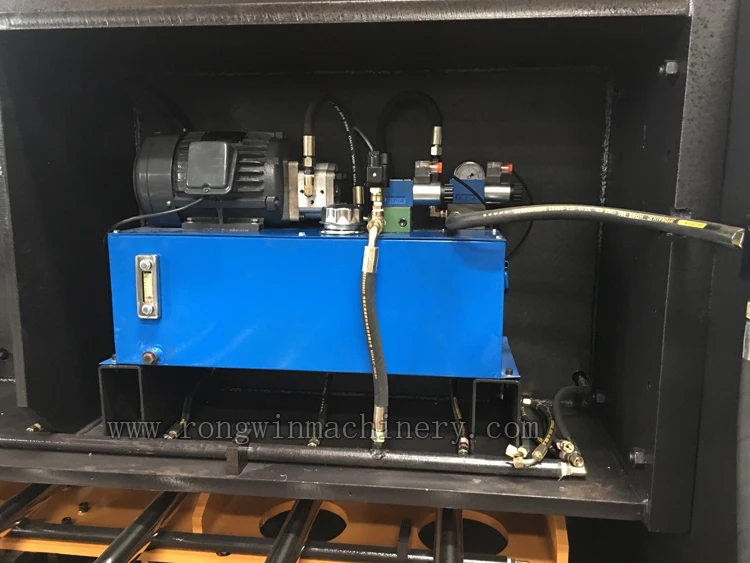

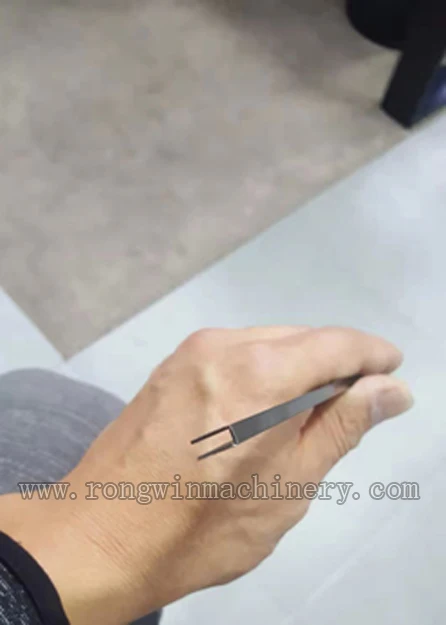

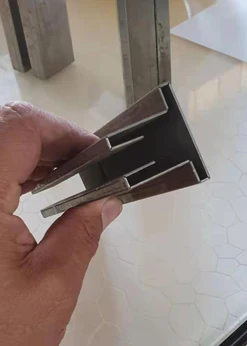

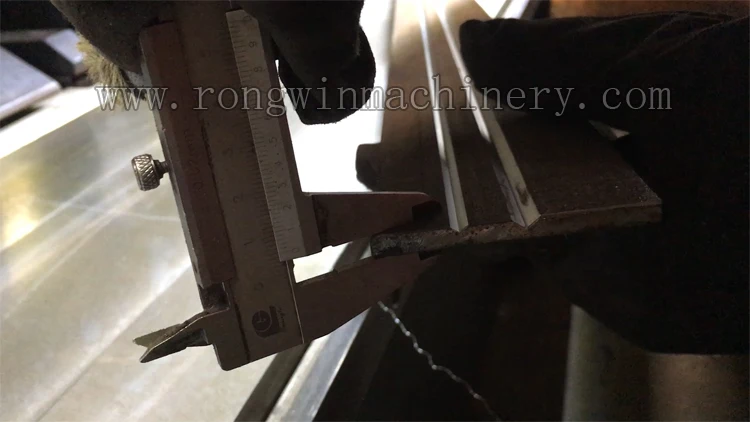

Rongwin hydraulic style V grooving machine can do V grooving on the high thickness which is more than 5 mm.

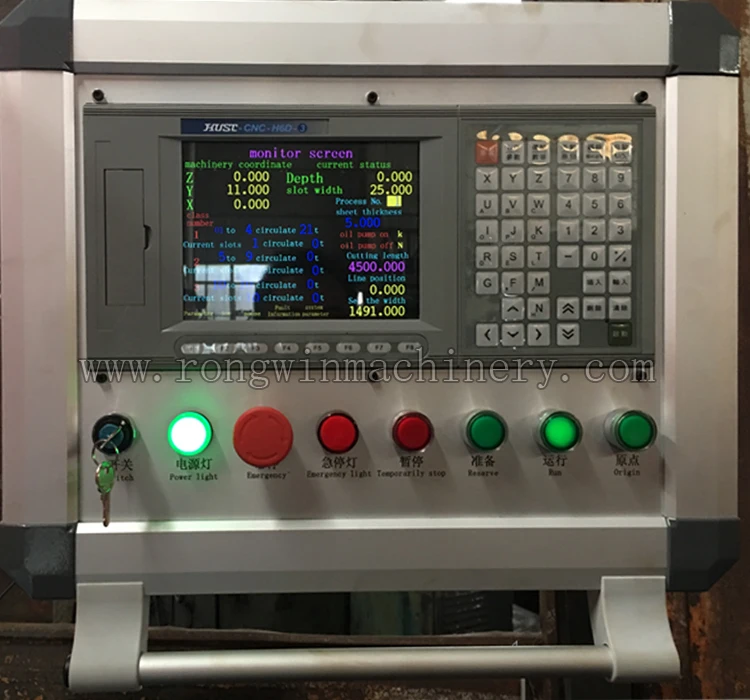

Taiwan HUST brand CNC controller

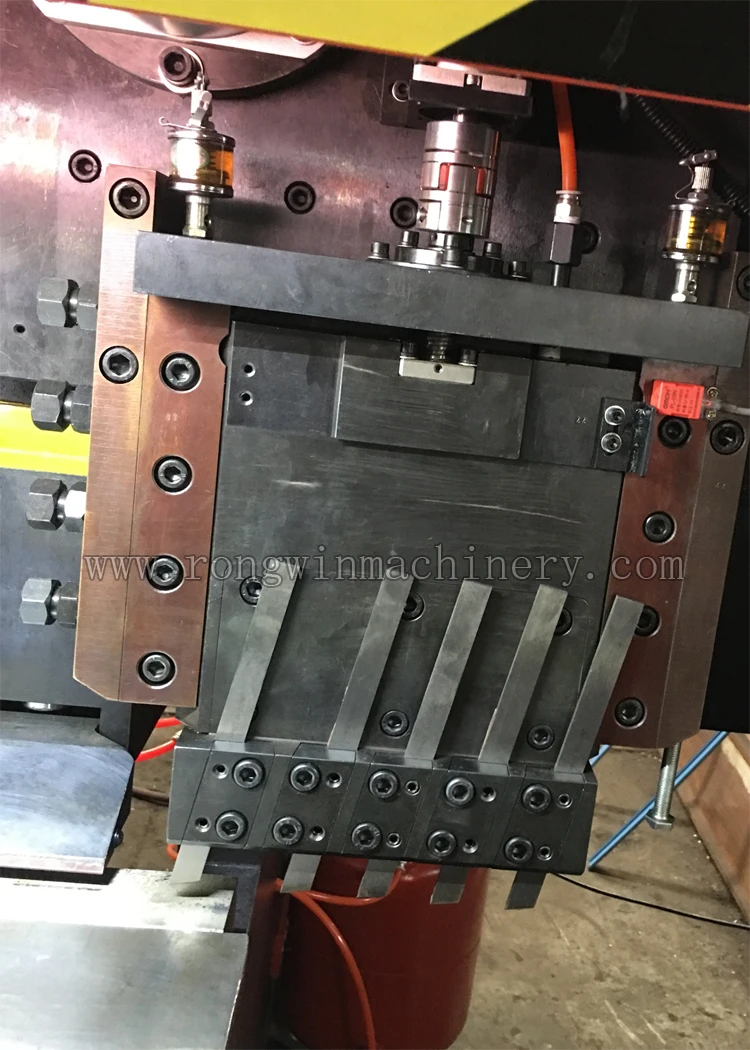

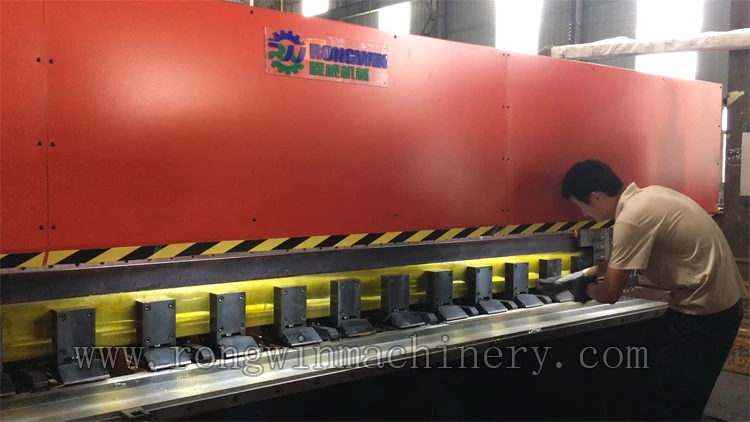

The knife holder can install 5 HSS blades

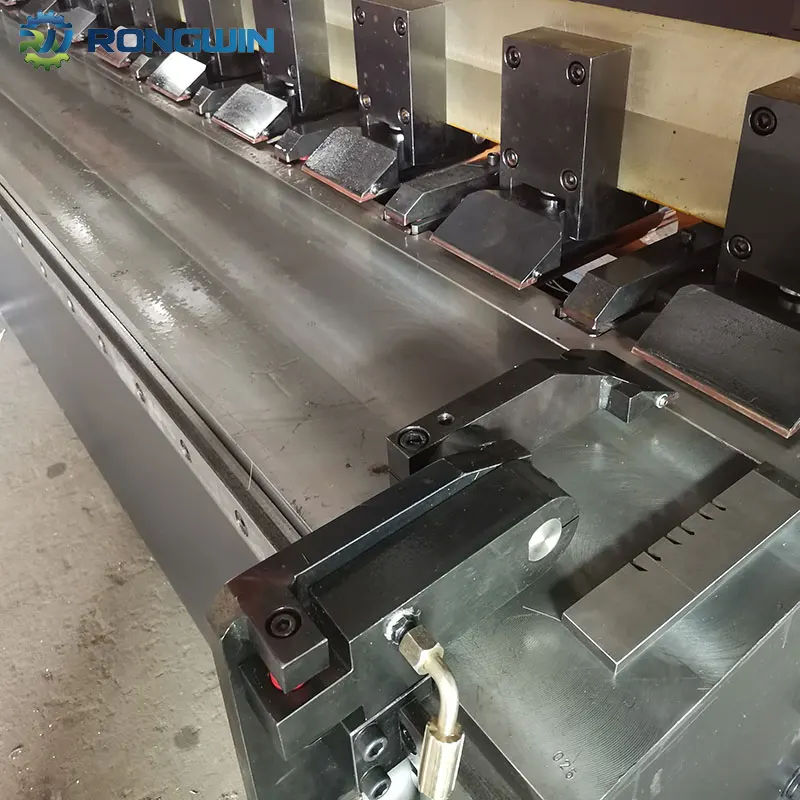

Side positioning presser foot
