types of power press machine | Power Press Machine

Application Scope

Rongwin's press brake manufacturer is widely used in multiple industries and fields.Guided by the actual needs of customers, Rongwin provides comprehensive, perfect and quality solutions based on the benefit of customers.

Product Comparison

Rongwin carries out strict quality monitoring and cost control on each production link of press brake manufacturer, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.Compared with products in the same category, Rongwin's press brake manufacturer has the following outstanding features.

Company Advantages
1. We have special team to take charge of design for mechanical power press .
2. The product stands out for its fatigue resistance. It can withstand a given number of cycles and work continuously without a break or any wear and tear.
3. The product is not prone to accumulate dust and particles. It is designed with a protective housing for parts and other precision components to avoid dust deposition.
4. Owing to the professional service, the customers of Rongwin has been our long term partners.
5. Customer service in Nanjing Rongwin Machinery Technology Co.,Ltd. grows out of the belief that 'the customer is always right. '

Company Features
1. Nanjing Rongwin Machinery Technology Co.,Ltd. is a customer-focused company focused on manufacturing types of power press machine . Over the years, our company has been continuously developing and expanding the scope and updating capabilities.
2. Without the introduction of high-tech c type power press methods, mechanical power press could not have been so popular in the market.
3. With the excellent service, Rongwin Machinery is highly valued by customers at home and abroad. Call! In today's global competition, Rongwin's vision is to become a globally famous types of power press brand. Call!

RONGWIN

PRUODUCT DISCRIPTION

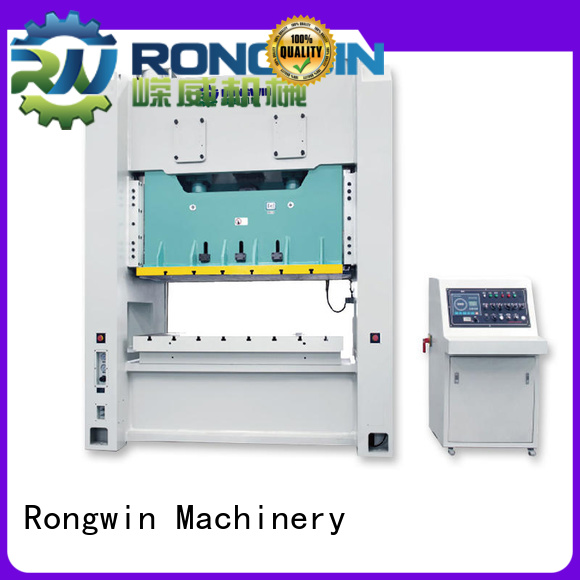

Product Name:H frame Power Press Machine

Also called:Stamping Mechanical Punch Press Machines/Straight Side Double-crank Press/Double crank power press machine/CNC straight side Double crank press

	Model	JH36-160	JH36-200	JH36-250	JH36-315	JH36-400	JH36-500	JH36-630
1	Nominal Capacity	160Ton	200Ton	250Ton	3150Ton	400Ton	500Ton	630Ton
2	Force happen position	5mm	7mm	7mm	8mm	9mm	13mm	13mm
3	Slider stroke	200 mm	250 mm	280 mm	280 mm	280 mm	320 mm	320 mm
4	Stroke times	30-45Times/Min	25-45Times/Min	20-40Times/Min	20-35Times/Min	20-35Times/Min	18-25Times/Min	18-25Times/Min
5	Max closing height	450mm	500mm	550mm	550mm	600mm	700mm	700mm
6	Closing height adjustment	100mm	110mm	120mm	120mm	130mm	130mm	150mm
7	Poles distance	1880mm	2190mm	2800mm	2800mm	2900mm	3100mm	3100mm
8	Distance from Worktable to ground	900mm	1000mm	1100mm	1085mm	1120mm	1140mm	1250mm
9	Worktable size (Left to Right)	1800mm	2150mm	2500mm	2500mm	2800mm	3000mm	3000mm
10	Worktable size (Front to Back)	760mm	940mm	1000mm	1000mm	1000mm	1200mm	1200mm
11	Slider base size (Left to Right)	1600mm	1850mm	2480mm	2480mm	2500mm	2700mm	2700mm
12	Slider base size(Front to Back)	650mm	750mm	900mm	900mm	950mm	1100mm	1100mm
13	Machine side mouth size (Up to down)	450mm	600mm	600mm	600mm	700mm	750mm	750mm
14	Machine side mouth size (Front to Back)	700mm	700mm	900mm	900mm	1050mm	1100mm	1100mm
15	Dimension (UD×LR×H)	2700×2380×3280mm	2790×2460×4075mm	3600×2755×4462mm	3700×3065×4510mm	3820×3350×4735mm	4330×3500×5585mm	4330×3500×5700mm
16	Motor Power	15KW-4P	22KW-4P	37KW-4P	37KW-4P	45KW-6P	55KW-4P	75KW-4P
17	Machine weigh	25500KG	35000KG	42000KG	45000KG	52000KG	62000KG	80000KG

Rongwin has specialized in metal working machinery and spare parts for 12 years
