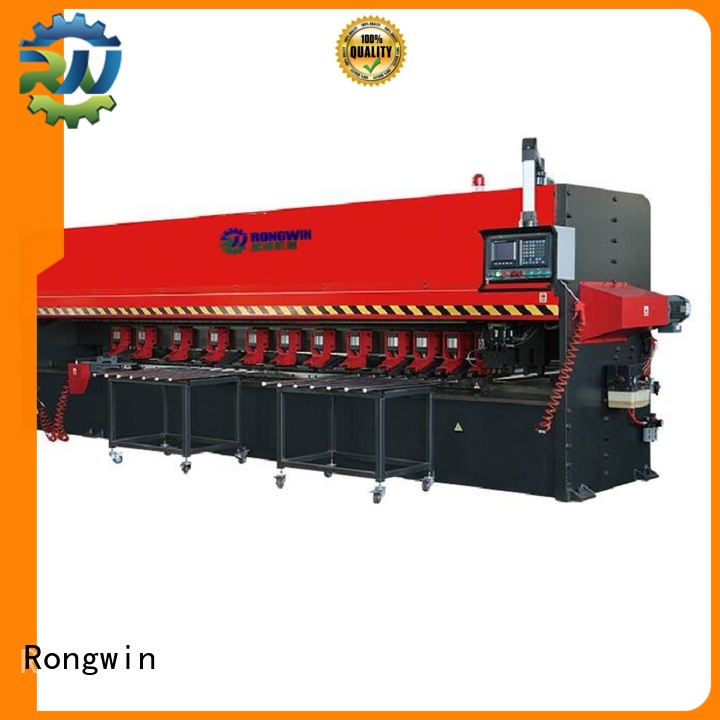

style cut grooving machine for stainless steel Rongwin
Rongwin has made it known to every family.
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享
Application Scope
hydraulic metal shear manufacturers produced by Rongwin is applied to the following industries.Rongwin has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
Company Advantages
1. cut grooving machine is well equipped and ensures longer functional life.
2. With an LCD screen, the product provides more clear and bright images, which help users write more fluently and perfectly reflect the writing style.
3. I's ok that sample first for testing before you place order for v cutting machine .
4. v cutting machine is offered which will help customers improve cut grooving machine competitiveness.

Company Features
1. Rongwin has made it known to every family.
2. Nanjing Rongwin Machinery Technology Co.,Ltd. employees a high quality new product development, design, testing and analyzing staff.
3. Nanjing Rongwin Machinery Technology Co.,Ltd. is committed to serving the best interests of our customers. We strive to pursue excellence. We set high personal and company standards and then constantly try to surpass them. That is how we deliver on our commitment to Innovation, Design, and Sustainability. Check it!

Max cutting width

1250mm

Max cutting length

3200mm

Max V-cutting thickness

4.0mm(Plate flatness<3.0mm)

Min V-cutting thickness

0.3mm

Back feeding device max moving range

1250mm

Back feeding device moving resolution

0.01mm

Back feeding device max moving speed

800-2000mm/Min

Blade rack max move range(up and down)

50mm

Blade rack move resolution(up and down)

0.01mm

Max moving range of slide rack (left and right)

3500mm

Slide rack max moving speed

30m/min

Straightness error on 4000mm length range

±0.05mm

Distance between V-groove and edge

12mm

Positioning precision

±0.05mm

Blade rack max stroke

100mm

Worktable height

660mm

Machine dimension

5100 x 2400 x 2300(mm)

Machine weight

9000KG

Features:

1 Our machine use structure design,Overall rigidity, small deformation.
2 This machine beam is fixed , has feeding system,worktable levelness is within ±0.03mm.

3 Blade rack move right and left by synchronous belt, V-cutting process is very stable,and the cutting surface is smooth.

CNC controller

Taiwan HUST-H4-2 axes CNC system

Servo motor

Japan YASKAWA Brand 0.85kw,0.85KW Large inertia servo motors

Inverter

Japan  Mitsubishi,Power: 3.7kw

Main axes motor

Germany SEW,Power:3.0kw

Proximity Switch

Germany Turk 1805

Four: Machine delivery time

The machine is our standard machine, and it is in stock, we can ship the machine immediately .
