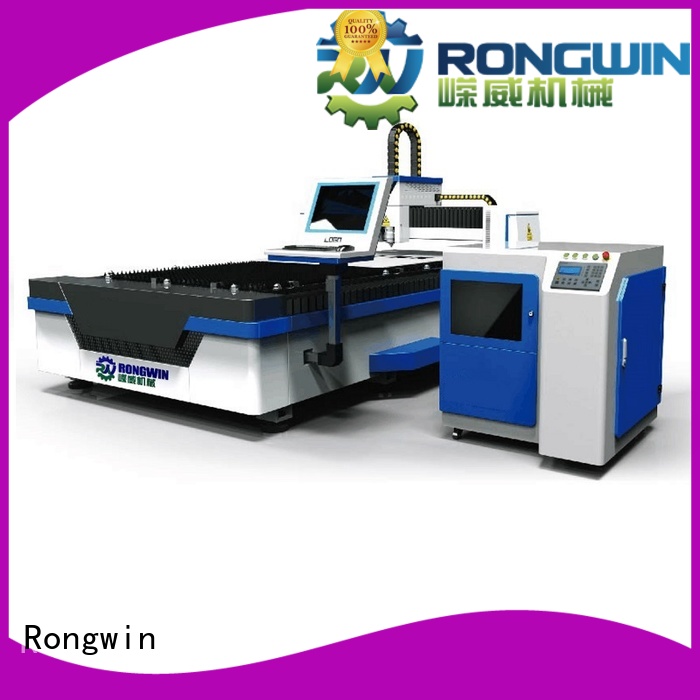

1000w laser cutting machine | Fiber Laser Cutting Machine

Product Details

To better learn about fiber laser cutting machine, Rongwin will provide detailed pictures and detailed information in the following section for your reference.Rongwin's fiber laser cutting machine is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.

Company Advantages
1. Rongwin steel laser cutting machine is delicately designed and manufactured to meet international standards.
2. With accuracy and safety, the product is qualified to use.
3. Nanjing Rongwin Machinery Technology Co.,Ltd. keeps continually researching and developing better steel laser cutting machine with higher performance.
4. Nanjing Rongwin Machinery Technology Co.,Ltd. has been committed to the exploration and development of steel laser cutting machine .

Company Features
1. Nanjing Rongwin Machinery Technology Co.,Ltd. overpasses other steel laser cutting machine manufacturers and suppliers in China because of the quality and price.
2. Situated in an advantageous geographical setting, the factory is close to some crucial transportation hubs. This enables the factory to save a lot in transportation cost and shorten delivery time.
3. Always following the vision of cheap laser cutting machine , Rongwin aims to be the leading manufacturer in this industry. Ask online! There is no doubt that Nanjing Rongwin Machinery Technology Co.,Ltd. will do everything possible to better serve our customers. Ask online! Nanjing Rongwin Machinery Technology Co.,Ltd. holds the business concept of 1000w laser cutting machine . Ask online!

RONGWIN

PRUODUCT DISCRIPTION

Motor and drive is Japan Yaskawa , linear guide rail is Taiwan Hiwin
Intelligent automatic oiling device greatly improves the service life oftransmission parts.
The guide rail and rack are calibrated by precision collimating instrument , and the precision is achieved ± 0.03mm
Using the Japanese intelligent gas group design , can automatically adjust pressure , automatic ventilation , pressure detection.
The whole machine is tempered at high temperature , the internal stress is eliminated with the furnace cooling , and the imported gantry milling finishing , ensure normal use of 20 years without deformation .

Configuration for Fiber Laser Cutting Machine
Fiber Laser Source	GW,American Brand
Servo Motor for X,Y,Z axis	4 set of JAPAN Fuji brand
Laser Head	Auto-Raytool Cutting head , Switzerland brand
X/Y axis Rack and gear	Taiwan HK brand, grinding DIN6 Grade precision
X/Y axis Reducer	Japan Shimpo brand
X,Y Linear guide	Taiwan HIWIN brand
Nitrogen parts	Taiwan ,Japan brand
Electrical Control System	Siemens ,Schneider ,etc
CNC software	Cypcut from SHANGHAI
Computer	4G Ram, 120G sold dick, Taiwan ASUS brand
Water Chiller	Wuhan Hanli,China brand

Technical specification :

RWL Series Open Style Table Fiber Laser Cutting Machine (Single table)

Model	RWL-3015B	RWL-4015B	RWL-6015B	RWL-4020B	RWL-6020B
Table size (mm)	1500x3000	1500x4000	1500x6000	2000x4000	2000x6000
Cutting size(mm)	1520x3030	1520x4040	1520x6050	2030x4040	2030x6050
The weight(KG)	4500	5500	7500	5800	7900

RWZ Series Open Style Table Fiber Laser Cutting Machine (Exchange table)

Model	RWZ-3015B	RWZ-4015B	RWZ-6015B	RWZ-4020B	RWZ-6020B
Table size (mm)	1500x3000	1500x4000	1500x6000	2000x4000	2000x6000
Cutting size(mm)	1520x3030	1520x4040	1520x6050	2030x4040	2030x6050
The weight(KG)	6500	7500	9500	8000	10000

Configuration for Fiber Laser Cutting Machine

Guideway , single piece structure

X/Y axis Rack and gear，Taiwan HK brand, grinding DIN6 Grade precision

Taiwan HIWIN brand linear guide

Sliding beam adopt single piece casting Aluminum part,,it can assure the machine stability,and improve machine performance.

Precision ≤ ±0.02mm

Machine bed is overall structure ,it is stable because of we do heat treatment

Japan FUJI brand servo motor

Switzerland Raytool brand

Japan FUJI brand servo motor

Water chiller

USA GW brand laser source

Application & freeback

Rongwin has specialized in metal working machinery and spare parts for 12 years
