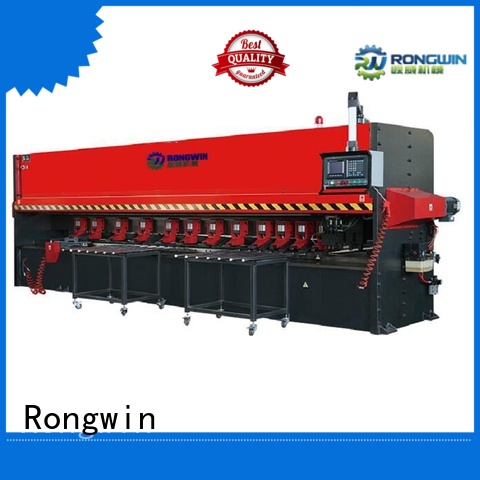

CNC V Grooving Machine Vertical style VC 1250x3200

Home > Customized Product > Best V grooving Machine > Rongwin widely used v cut cnc long-term-use for iron

这里可以自定义设置

Rongwin widely used v cut cnc long-term-use for iron

Rongwin v cut cnc was born out of innovation and curiosity.

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

Enterprise Strength

With a complete service system, Rongwin can provide timely, professional and comprehensive after-sales service for consumers.

Application Scope

Rongwin's press brake manufacturer is widely used in the Manufacturing Machinery industry and is widely recognized by customers.Rongwin has been engaged in the production of press brake manufacturer for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Company Advantages
1. Rongwin v cut cnc was born out of innovation and curiosity.
2. The product features high accuracy. All its parts have been measured by means of the advanced 3D coordinate measuring device.
3. sheet grooving machine has been more well-known for its quality assurance.

Company Features
1. Nanjing Rongwin Machinery Technology Co.,Ltd. is a professional one-stop v cut cnc manufacturing company based in China. We mainly focus on R&D, producing, and marketing.
2. sheet grooving machine is very popular in overseas markets due to its high quality requirements.
3. Nanjing Rongwin Machinery Technology Co.,Ltd. takes technology as the No. one productive force. Get more info! Nanjing Rongwin Machinery Technology Co.,Ltd. has been responsible for developing a number of highly marketable groove cutting machine for years. Get more info! Nanjing Rongwin Machinery Technology Co.,Ltd. suggests v groove cutting machine as its market strategy. Get more info! v groove cnc tenet and cnc grooving machine brand strategy constitute the core competitiveness of Nanjing Rongwin Machinery Technology Co.,Ltd.. Get more info!

RONGWIN

PRUODUCT DISCRIPTION

RONGWIN Brand auto v grooving machine is widely used in the sheet metal V-groove, U-groove and other irregular groove processing ,which is including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates.
Particularly, it is can applicable to the V-groove processing of sheet metal before bending .

Max cutting width	1250mm
Max cutting length	3200mm
Max V-cutting thickness	4.0mm(Plate flatness<3.0mm)
Min V-cutting thickness	0.3mm
Back feeding device max moving range	1250mm
Back feeding device moving resolution	0.01mm
Back feeding device max moving speed	800-2000mm/Min
Blade rack max move range(up and down)	50mm
Blade rack move resolution(up and down)	0.01mm
Max moving range of slide rack (left and right)	3500mm
Slide rack max moving speed	30m/min
Straightness error on 4000mm length range	±0.05mm
Distance between V-groove and edge	12mm
Positioning precision	±0.05mm
Blade rack max stroke	100mm
Worktable height	660mm
Machine dimension	5100 x 2400 x 2300（mm）
Machine weight	9000KG

Features:

1 Our machine use structure design,Overall rigidity, small deformation.

2 This machine beam is fixed , has feeding system,worktable levelness is within ±0.03mm.

3 Blade rack move right and left by synchronous belt, V-cutting process is very stable,and the cutting surface is smooth.

CNC system and other configuration

More

CNC controller	Taiwan HUST-H4-2 axes CNC system
Servo motor	Japan YASKAWA Brand 0.85kw,0.85KW Large inertia servo motors
Inverter	Japan Mitsubishi，Power: 3.7kw
Main axes motor	Germany SEW，Power:3.0kw
Proximity Switch	Germany Turk 1805

Here is the main parts photo of the Vertical style VC 1250x3200 CNC V Grooving Machine

More

APPLICATION

Photo taken in our customer’s workshop

More

Four: Machine delivery time

The machine is our standard machine, and it is in stock, we can ship the machine immediately .
