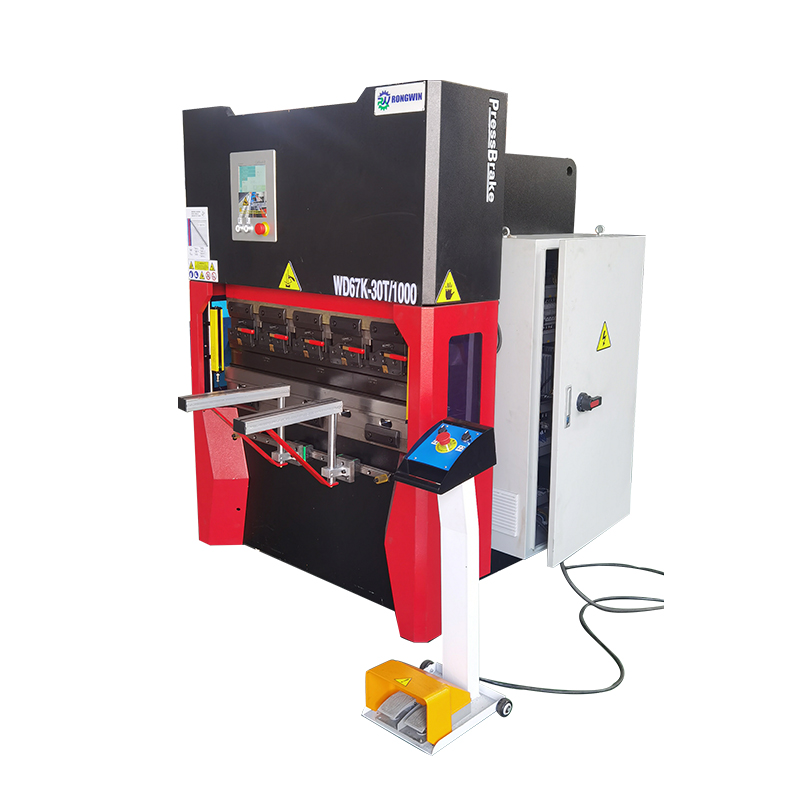

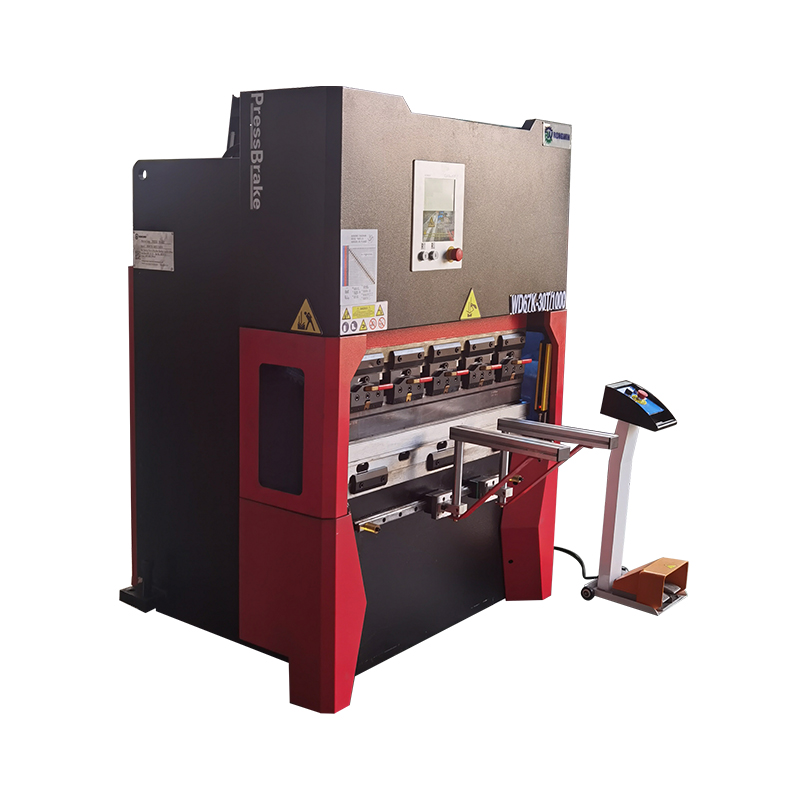

China manufacturers professional research unique high precision WD67K 30T1000 metal mini press brake
This small bending machine is equipped with CNC upper and lower molds, Rexroth valves, gear pumps and Schneider electric components. Also equipped with photoelectric protection device. The back gauge of the machine can be electrically controlled to move left and right or adjust up and down. It is a fully functional CNC bending machine. Backgauge adopts ball screw and linear guide,quick speed and high repeat positioning precision. Axis with resolution 0.1mm.
We removed the suspension arm of the press brake machine controller and placed the controller in the body of the bending machine, which is beautiful and practical. This design can save you more space.
Cybtouch 8P CYBELEC
High-contrast touchscreen, with vivid colors.
· Simple pages, clear display, large keys
· Complete programming for efficient mass-production with
· Easy single bends with the EasyBend page.
· Online help and interactive warning pop-up.
· Comfortable wireless software updating and data backup
using PC or Notebook.
· Large variety of languages available.
· Various automatic calculations of bend functions.
· Bending sequences and programs can be memorized.
· Angle, pressure and crowning management.
· Using servo control technology
· 4.7” high bright liquid crystal display screen with muti-nation language interface including Chinese
· Die parameter setting,bending angle programming
· About 100 programs are stored, and there are 25 operations
in each program
· The escaped material is programmable,the processing
quantity is accountable,there is memory to power off,
and conversion between metric system and inches system
Controller installation design
The controller is installed in front of the machine without the suspension arm, which saves more space
High quality fast clamps
Easy to operate, time-saving and labor-saving
Rexroth Hydraulic Valve
Plate support arms
Movable front material support on HIWIN linear guider, can move left and right by hand very easy
Laser safety guard
Avoid operator and third party hazards
High accuracy backgauge
The backgauge can be electrically controlled by the button to move the Z1, Z2 axis left right and R axis up down.
