RONGWIN Super-automaticed 15 Axis Automatic sheet metal Panel folder CNC Panel Bender 1000mm 1400mm 2000mm 2500mm

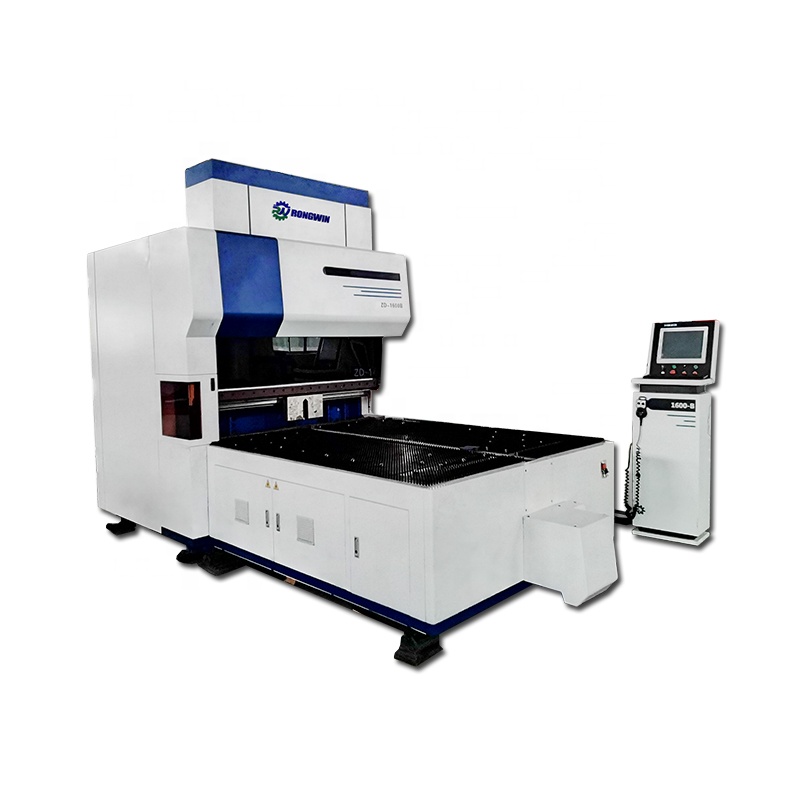

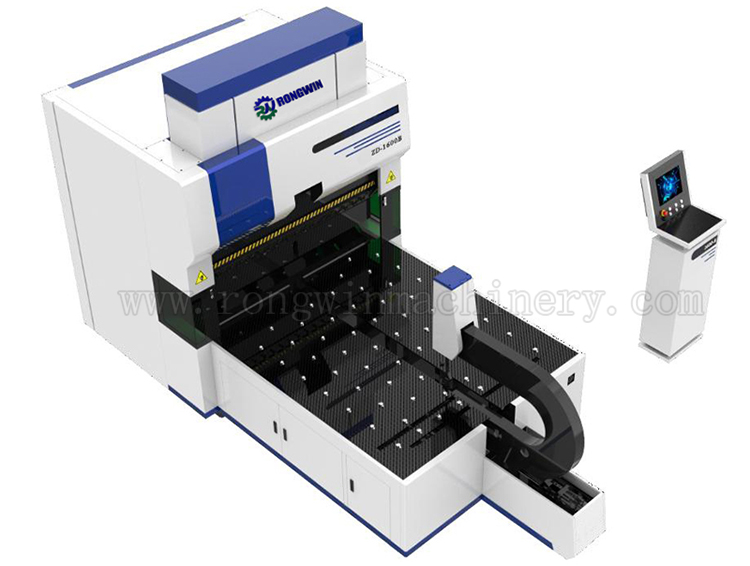

RONGWIN Full Servo Bending Center CNC Panel Bender

Full servo system, maximum support 16-axis concurrent linkage,highest positioning accuracy in the bending srquence and bring the best bending effect.

B站不支持收货地址

B站不支持库存规格

Model: RONGWIN Panel Bender

MOQ: 1

Payment: L/C, T/T, Western Union, MoneyGram

Place of Origin: Anhui,China

Brand: Romgwin

B站不支持优惠卷

Inquire Online
download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Product Description

RONGWIN Super-automaticed 15 Axis Automatic sheet metal Panel folder CNC Panel Bender 1000mm 1400mm 2000mm 2500mm

Rongwin panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.

The bending center of the bending sheet metal bending does not require a mold and can bend various complex shapes. Can be folded right angle,

Various combinations of complex shapes such as non-right angles, arcs, folds up and down, are used in the field of metal forming of different workpieces in different industries.

The equipment is equipped with a pure electric servo system instead of a hydraulic drive, and has the advantages of environmental protection, fast speed, high precision, and maintenance-free.

Machine parameters

Max. bending speed	0.3 s/time
Max. bending width	1300mm/1600mm/2000mm
Bending height	175 mm( customizable )
Average power	1.5 kw
Max. bending thickness	UTS 580N/mm2 Stainless steel 1.2 mm
	UTS 410N/mm2 Carbon steel 1.2 mm
	UTS 265N/mm2 Aluminum 1.2 mm
Min. bending thickness	0.35 mm

Industry Application
*Food machinery, goods and household appliances *Steel furniture, sheet metal and warehouse
*Electrical cabinet
*Steel door and frame
*Elevators and escalators
*Generators
*Hospital and laboratory equipment
*HVAC
*lighting device

Packing & Shipping

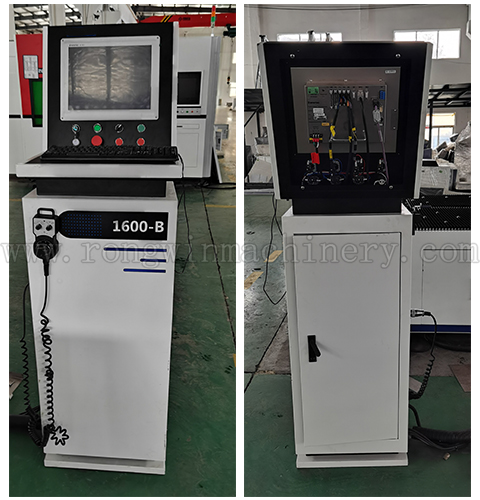

Control system

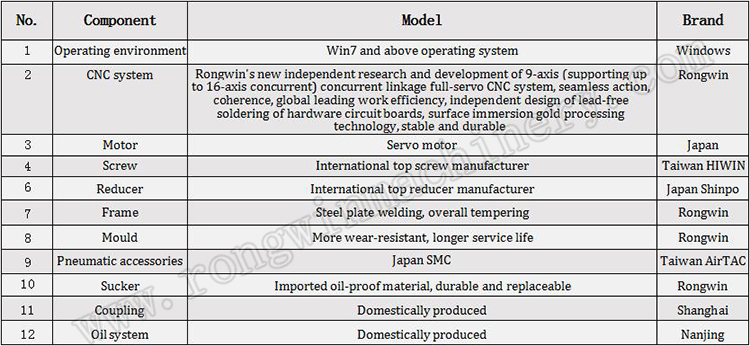

Rongwin’s new independent research and development of 9-axis (supporting up to 16-axis concurrency) concurrent linkage full-servo CNC system, seamless action, coherence, global leading work efficiency, independent design of lead-free soldering of hardware circuit boards, surface immersion gold processing technology, stability durable.

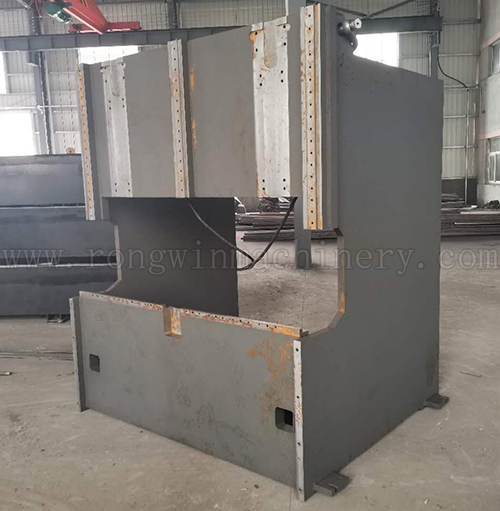

Machine frame

High precision, vibration reduction and pressure reduction, wear resistance, no deformation

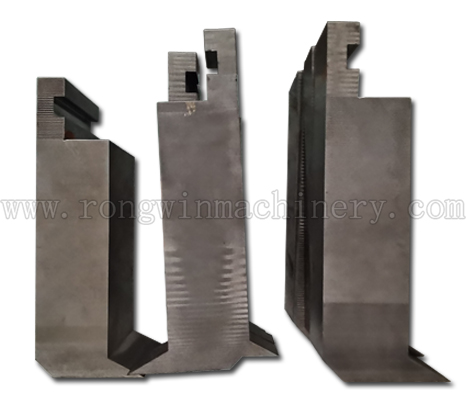

Press brake tool

High-quality moulds after heat treatment and quenching are more durable.

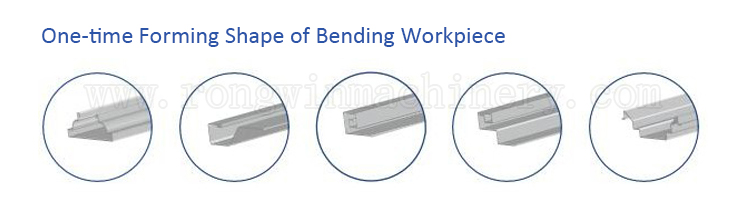

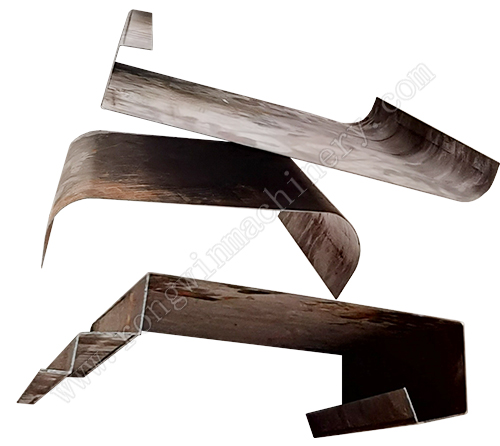

Workpieces

Various shapes can be bent without changing moulds.

Rongwin has specialized in metal working machinery and spare parts for 12 years
