Product Description

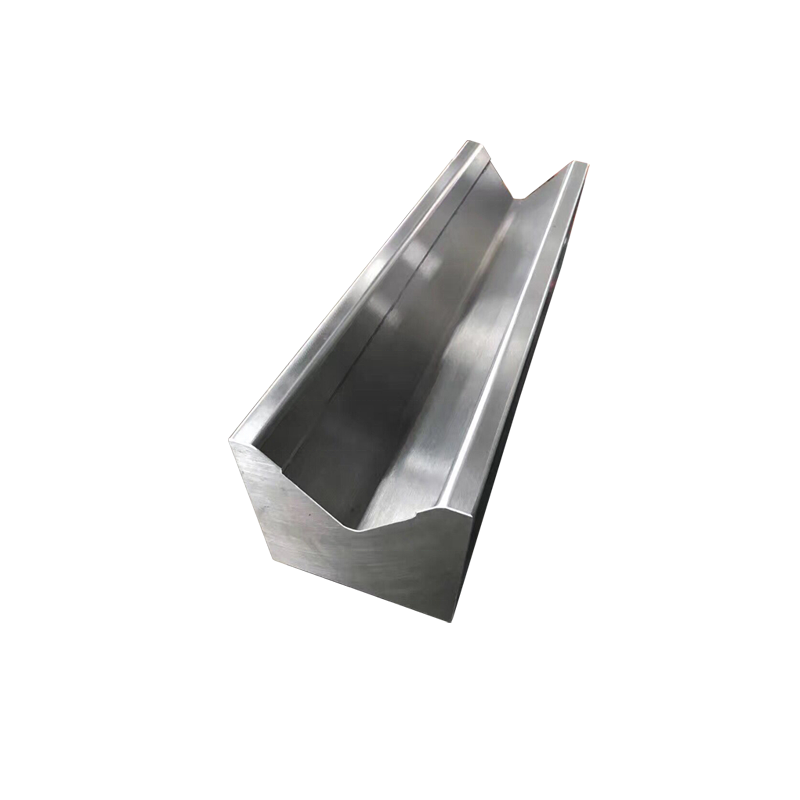

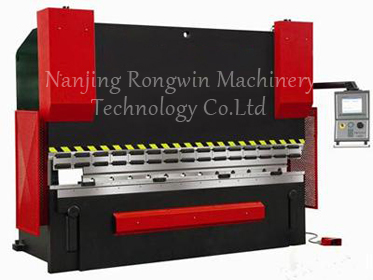

Used by bending machine to process forming sheet metal. Its main requirements are high strength, high toughness and good wear resistance. Under the pressure of the bending machine, the shape of the steel is processed by changing the physical state of the formed material, so that the blank becomes a tool with a specific shape and size. According to the shape of the bending product, adjust the pressure of the bending machine and change the shape of the mold. The technology of the folding can process various shapes.

Product Paramenters

Product parameters

●Material: 42CrMo

Die selection:

According to the different requirements of customers, choose the best mold design, to the fastest time, the best quality to meet customer requirements. In addition, if there is any difficulty in selecting the mold, please consult our company, and then please provide the following contents:

A. general drawing of bending shape finished product and partial detail drawing of bending part (bending radius, tolerance range of internal and external contour dimensions, etc.)

B. material and thickness of bending plate

C. requirements of bending products
for indentation, scratch, etc.

D. bending is the type and model of mechanical equipment used (maximum processing pressure, table
length, clamping mode of upper and lower dies)

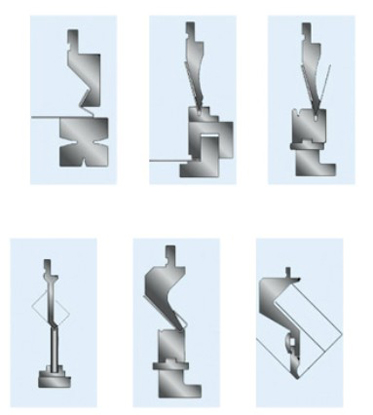

General segments:

Mold section 1 Upper die of CNC bending machine: 100 (left), 10, 15, 20, 40, 50, 200, 300, 100 (right) = 835mm (one set) CNC
bending machine lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm Mold section 2 NC bending upper die: 100 (left), 10, 15, 20,
40, 50, 165, 300, 100 (right) = 800mm

Detailed Images
