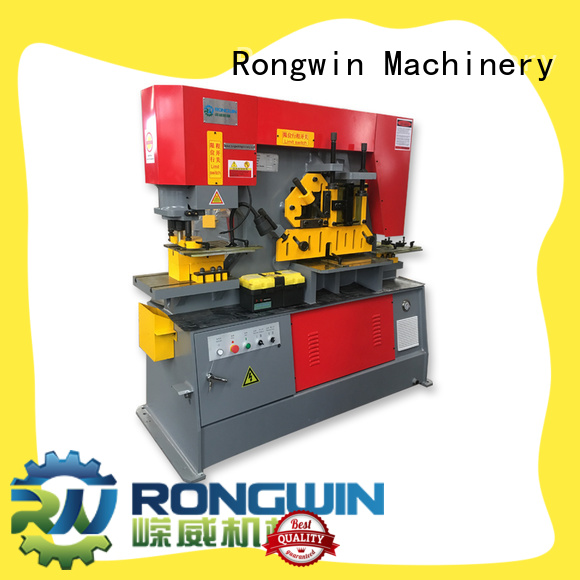

    Rongwin inexpensive best ironworker machine ironworker for cutting
    The material used for hydraulic iron cutting machine makes its life span longer than others with normal material.
    参数暂无数据

    Add success, do you want to check your shopping cart?

    Ok Close
    暂无分享
    Enterprise Strength
    • Rongwin adheres to the service principle to be timely and efficient and sincerely provides quality services for customers.
    Company Advantages
    1. The material used for hydraulic iron cutting machine makes its life span longer than others with normal material.
    2. hydraulic iron cutting machine's quality is stable and reliable.
    3. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.
    4. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.

    Company Features
    1. Since its founding, Nanjing Rongwin Machinery Technology Co.,Ltd. has had a solid operation and all its sales channels for hydraulic iron cutting machine have kept healthy, rapid and sustainable development.
    2. Our factory has been equipped with a wide range of advanced production facilities. This gives us a powerful capacity that automates tasks, streamlines workflow, and helps us quickly define and validate the form, fit, and function of our product.
    3. Nanjing Rongwin Machinery Technology Co.,Ltd. unswervingly adheres to satisfying the needs of customers hydraulic ironworker . Inquire online! Our mission is, to satisfy and meet the needs of our customers, providing our products and services with the quality, adjusted to their needs and preferences and to create value for our stakeholders through originality and strict adherence to our principles. Inquire online! Humility is the most obvious characteristic of our company. We encourage employees to respect others when in disagreement and learn from constructive criticism put up by customers or teammates humbly. Doing this alone can help us grow rapidly. Rongwin will increase its international fluency in the hydraulic iron worker field. Inquire online!

    Model

    Q35Y-16

    Q35Y-20

    Q35Y-25

    Q35Y-30

    Q35Y-40

    Q35Y-50

    Punching Pressure(T)

    60

    90

    120

    160

    200

      250

    Max Shearing Thickness(mm)

    16

    20

    25

    30

    40

    50

    Plate Strength(N/mm2)

    ≤450

    ≤450

    ≤450

    ≤450

    ≤450

    ≤450

    Shearing Angle

    7°

    8°

    8°

    8°

    8°

     8°

    Flat Bar(H*W)(mm)

    16×250
         8×400

    20×330
         10×480

    25×330
         16×600

    30×355
         20×600

    40×335
         30×600

    50×300
         30×750

    Ram Stroke(mm)

    80

    80

    80

    80

    100

      100

    Number of Stroke(times/min)

    11-20

    12-20

    8-18

    6-16

    6-16

    6-12

    Throat Depth(mm)

    300

    355

    400

    600

    530

      600

    Punching Thickness(mm)

    16

    20

    25

    28

    35

      40

    Max Punching Diameter(mm)

    25

    30

    35

    38

    40

       45

    Main Motor Power (kw)

    5.5

    7.5

    11

    15

    18.5

     18.5

    Overall DimensionL×W×H(mm)

    1740×810×1830

    1950×900×1950

    2355×960×2090

    2800×1050×2450

    2900×1100×2500

    3000×1440×2450

    Weight(kg)

    1900

    2600

    4800

    6800

    9200

     12800

    Ironworker Spare parts and tools for free



    More

    .Service 01

    Pedal switch :1 Pcs

    .Service 02

    Back guage (1 meter)

    .Service 03

    Hook Spanner

    .Service 04

     Inner Hexagon Spanner

    .Service 05

     Oil Gun

    .Service 06

    Some moulds for hearing ,bending , notching , and also punching

    Standard tools for free includes



    More
    1 set of punch and die
    1 set of punch and die
    1 set of cutting blade
    1 set of cutting blade
    1 set of angle steel cutting blade
    1 set of angle steel cutting blade
    1 set of channel steel cutting blade
    1 set of channel steel cutting blade
    1 set of notch punch and die
    1 set of notch punch and die
    Other mould and cutting blade you can choose for extra



    More
    Blade for angle steel
    Blade for angle steel
    Blade for square and round steel
    Blade for square and round steel
    Punching mould
    Punching mould
    Blade for cutting
    Blade for cutting
    Blade for Transverse cutting
    Blade for Transverse cutting

    Standard tool of Ironworker



    More
    Punching
    Punching
    Bending
    Bending
    Angle sheet cutting and plate cutting
    Angle sheet cutting and plate cutting
