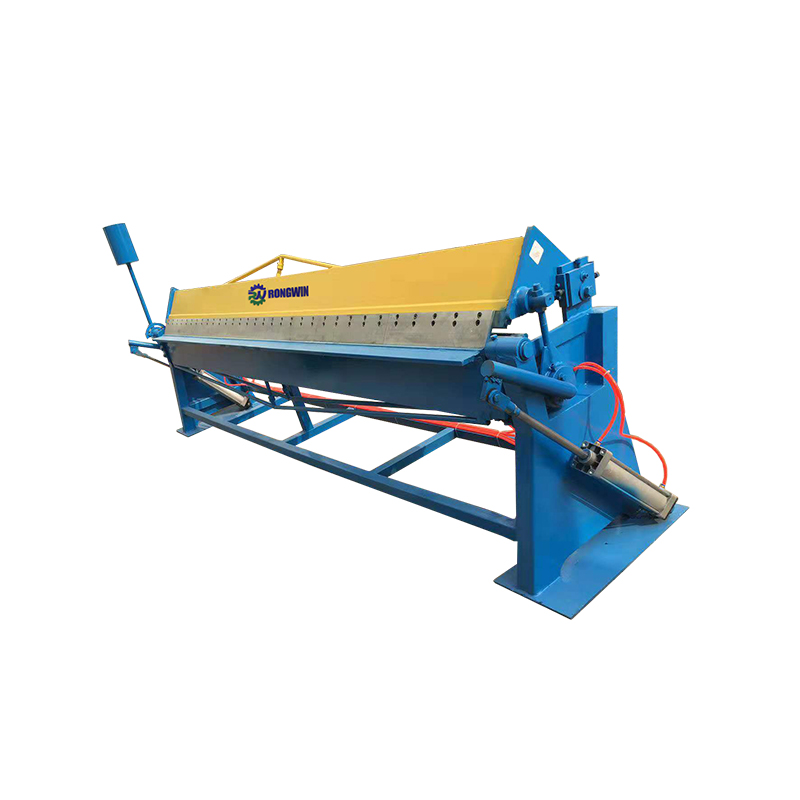

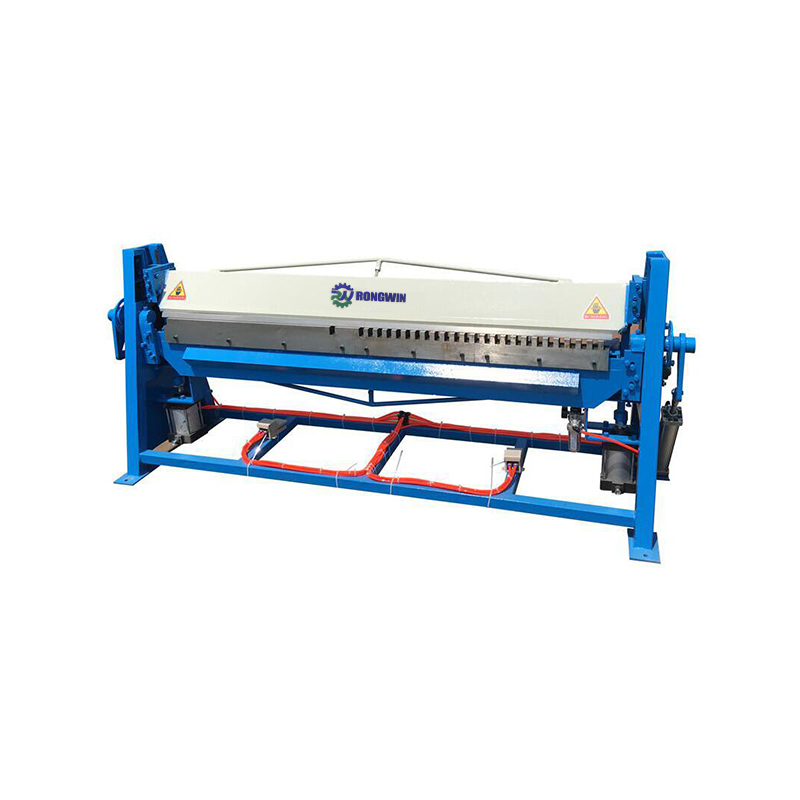

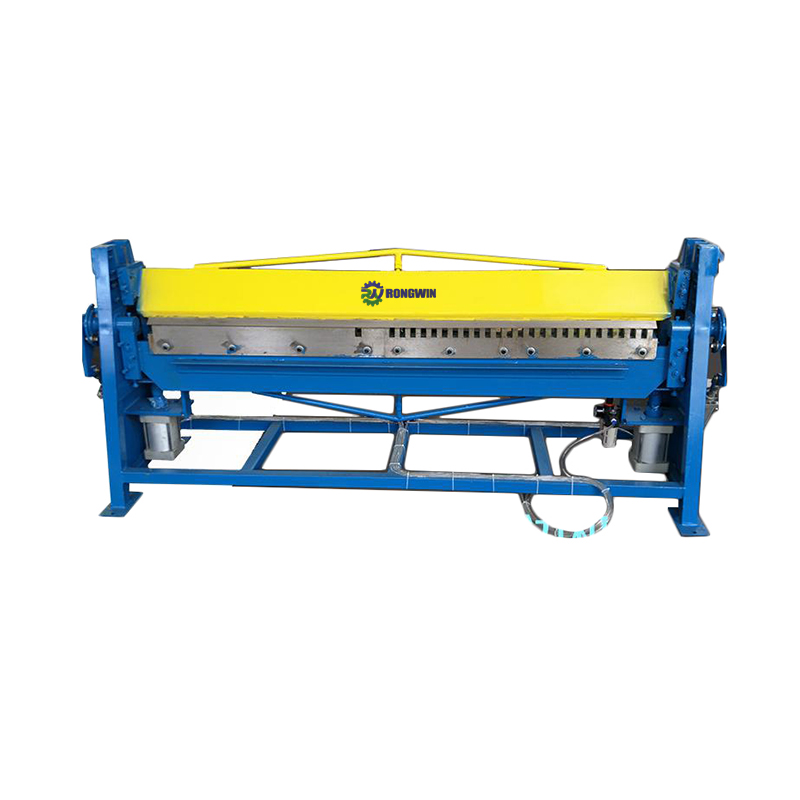

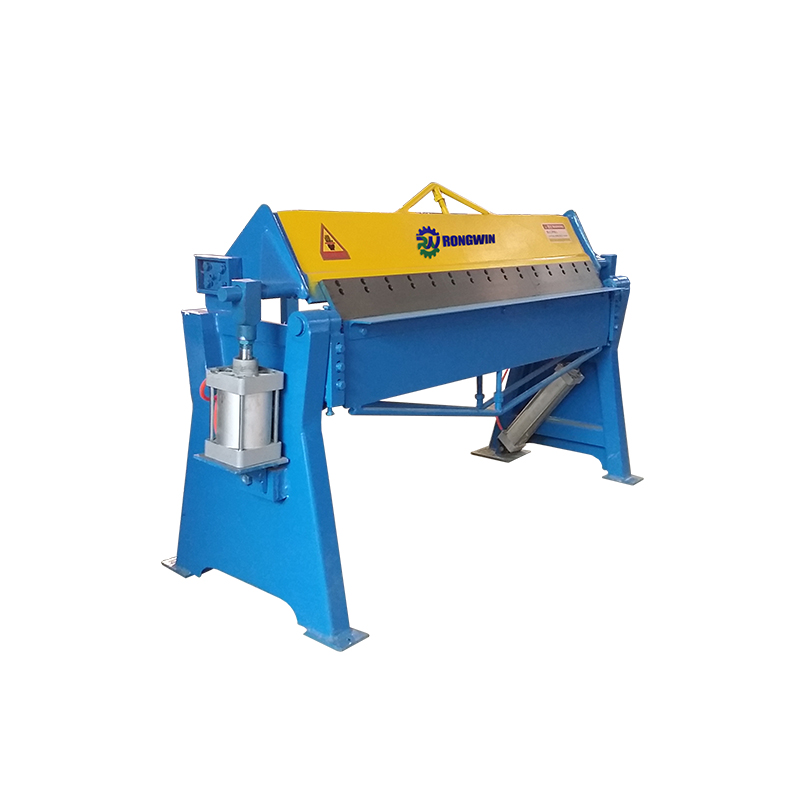

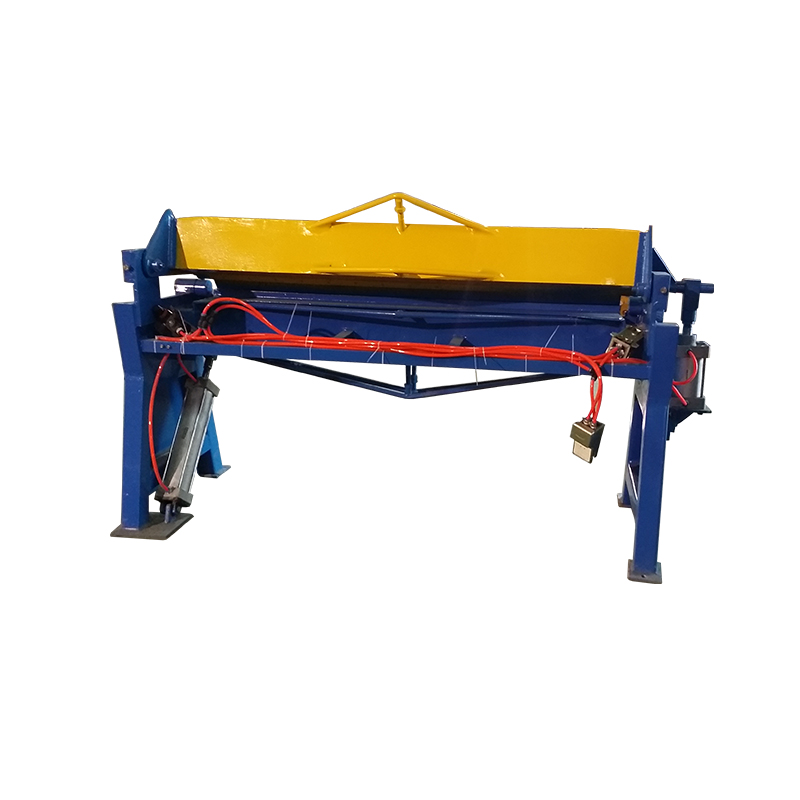

RONGWIN high quality pneumatic folding machine air duct common plate flange small bending machine for sale

Product Description

  This machine adopts an all-steel welded structure and uses pneumatics as a power source. According to specifications, it is mostly used for bending steel plates with a length of less than 3 meters and a thickness of 0.3-2mm to achieve the purpose of forming. This machine tool is easy and fast, and the operation is simple and convenient.
  It and common plate flange machine, shearing machine, five-wire bar press, bite machine and so on constitute the common plate flange air pipe semi-automatic production line, can greatly improve the production efficiency and product quality.

Detailed Images

Folding machine blades

The high quality forging carbon tool steel used in the edge folding machine has the advantages of quenching heat treatment, long bending life, small deformation, and can modify the cutting edge size according to customer requirements to realize the bending of special workpiece.

Foot switch

Two foot switches, one for pressing and releasing the workpiece, the other for bending, simple operation and high efficiency

Eccentric wheel clamping device

The pneumatic folding machine adopts the improved eccentric wheel clamping device, which makes the clamping speed of the board fast and firm, and the bending efficiency is good.

Model	Plate thickness	Mini. angle of folding plate	Distance	Max. plate length	Weight	Dimensions
QDF-1.5*1300	0.3-1.5mm	60°	60mm	1300mm	360kg	19808001320mm
QDF-1.5*1500	0.3-1.5mm	60°	60mm	1500mm	380kg	21808001320mm
QDF-1.5*2000	0.3-1.5mm	60°	60mm	2000mm	440kg	26808001320mm
QDF-1.5*2500	0.3-1.5mm	60°	60mm	2500mm	560kg	31808001320mm
QDF-1.3*3000	0.3-1.2mm	60°	60mm	3000mm	680kg	30608001590mm
