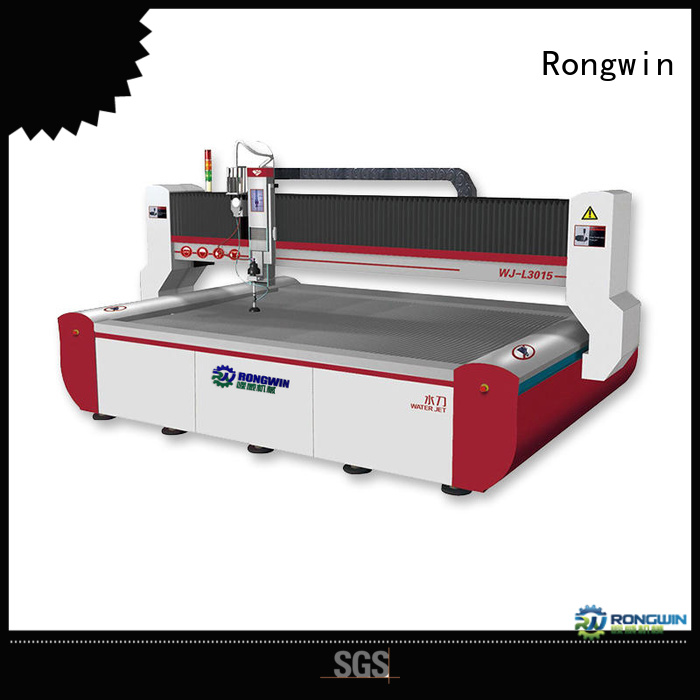

CNC Waterjet Cutting Machine 3d Water Jet Cutting Machine

Product Details

In the production, Rongwin believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.Rongwin carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce fiber laser cutting machine which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.

Enterprise Strength

Rongwin receives wide recognition and enjoys a good reputation in the industry based on pragmatic style, sincere attitude, and innovative methods.

Company Advantages
1. Adherence to design principle of 3d waterjet cutting makes possible the use of 5 axis water jet cutting machine more waterjet steel cutting machine .
2. The supplied product can always be serviced in the best conditions.
3. 5 axis water jet cutting machine is designed by domestic top designers and independent R&D teams.
4. After years of development, Nanjing Rongwin Machinery Technology Co.,Ltd. has accumulated a large number of consumer groups, domestic and foreign brand resources.
5. Nanjing Rongwin Machinery Technology Co.,Ltd.'s internationalization tendency are catching more and more eyes.

Company Features
1. Nanjing Rongwin Machinery Technology Co.,Ltd. is always committed to the manufacturing of high quality 5 axis water jet cutting machine.
2. With the world leading equipment & technology, we provide you perfect cnc water jet cutting machine .
3. For the purpose of being the cnc cutting machine supplier, Rongwin always keeps on moving. Welcome to visit our factory! To promote our better cooperation, Nanjing Rongwin Machinery Technology Co.,Ltd. is willing to do more for our customers. Welcome to visit our factory! Nanjing Rongwin Machinery Technology Co.,Ltd. will tap into the strength of the entire Rongwin Machinery to provide you with the best. Welcome to visit our factory!

RONGWIN

PRUODUCT DISCRIPTION

Waterjet cutting machine Technical parameters:

Model			RW-L2015	RW-L3020	RW-L4030	RW-X1520	RW-X1830
Machine type (L bridge, X fly arm)			Bridge type	Bridge type	Bridge type	Fly arm type	Fly arm type
Efficient Cutting area(mm)			2000*1500	3000*2000	4000*3000	1500*2000m	1800*3000
Axis travel(mm)		X axis	2000	3000	4000	1500	1800
		Y axis	1500	2000	3000	2000	3000
		Z axis	150-200	150-200	150-200	150-200	150-200
CNC control system			AC Servo motor	AC Servo motor	AC Servo motor	AC Servo motor	AC Servo motor
Accuracy	Cutting accuracy		+/-0.1mm
Accuracy	Repeat accuracy		+/-0.05mm
Processing speed			0-15m/min
Power supply			220V/380V/415V,3ph,50HZ/60HZ (can be requirement as customer's request)

Main component options:

Featuring a low noise, no pollution, high precision and high reliability

A:Waterjet cutting table

1.Integral gantry type

2.Split gantry type

3.large gantry type

4.Cantilever type

B:High Pressure Pump

Unique design of this water jet cutting machine makes the installation and the maintenance easier. Stable working pressure to ensure the working efficiency.

1. 40Hp:Max. Pressure: 380mpa / Power: 30KW/40HP

2. 50Hp:Max. Pressure: 420mpa / Power: 37KW/50HP

3. 100Hp:Max. Pressure: 420mpa / Power: 74KW/100HP

4. Other brand HP Pumps / KMT、Hypertherm、BFT

C:CNC Controller&Software

1.WEIHONG -PM95A-3A Lambda4s

2.WEIHONG-PM95A-5A Lambda5s

Chief parts brand list

No.	Name	Brand	Brand original
1	CNC system	WEIHONG	China mainland
1	Software	WEIHONG	China mainland
2	AC servo driver	MITSUBISHI	Japan
3	AC servo motor	MITSUBISHI	Japan
4	Ball screw	TBI	Taiwan
4	Linear guide rail	HIWIN	Taiwan
5	Major parts of intensifier assembly	Accustream/Hypertherm	USA
6	Shift valve	SUNNY	USA
7	Electric appliance	SCHNEIDER	France
8	PLC	Siemens	Germany
8	Major motor of HP pump	Siemens	Germany

Here is the main parts photo of the guillotine shear machine

APPLICATION

Rongwin has specialized in metal working machinery and spare parts for 12 years
