Rongwin 20mm Metal Fiber Laser Cutting Machines

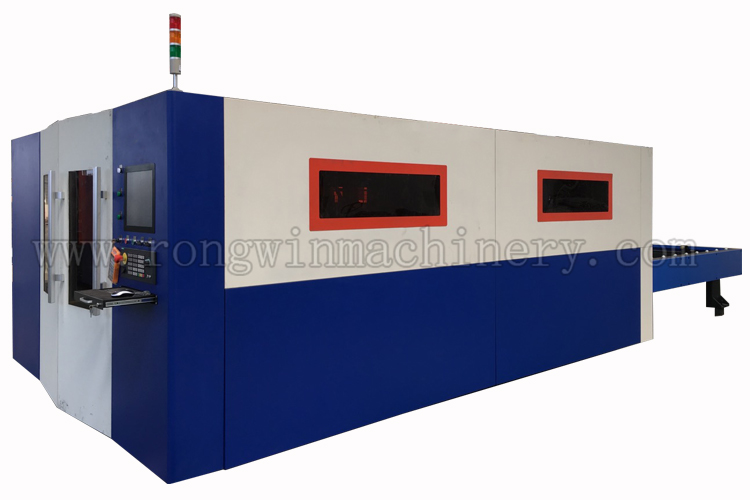

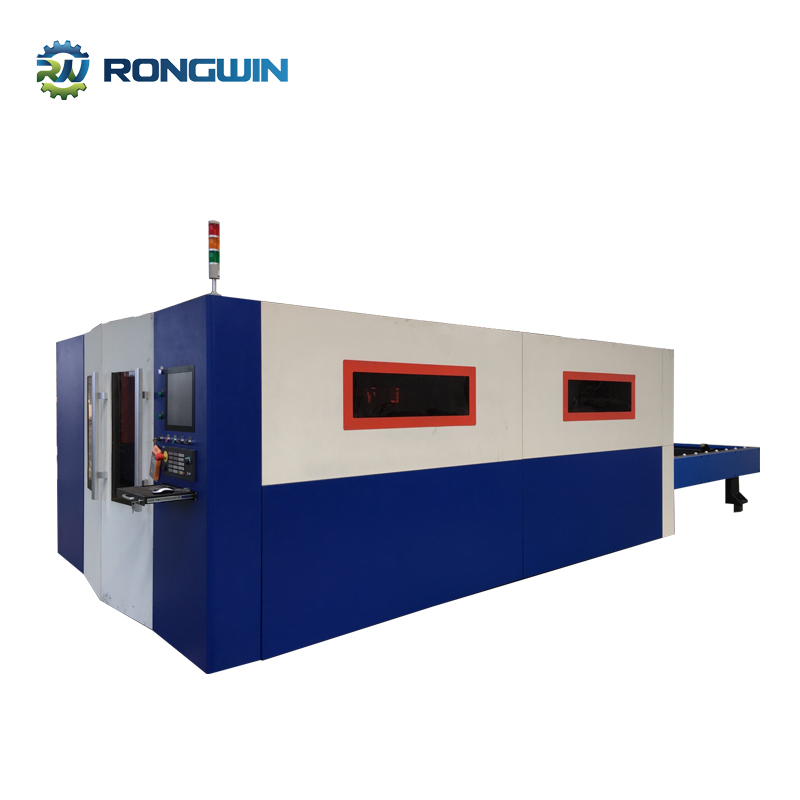

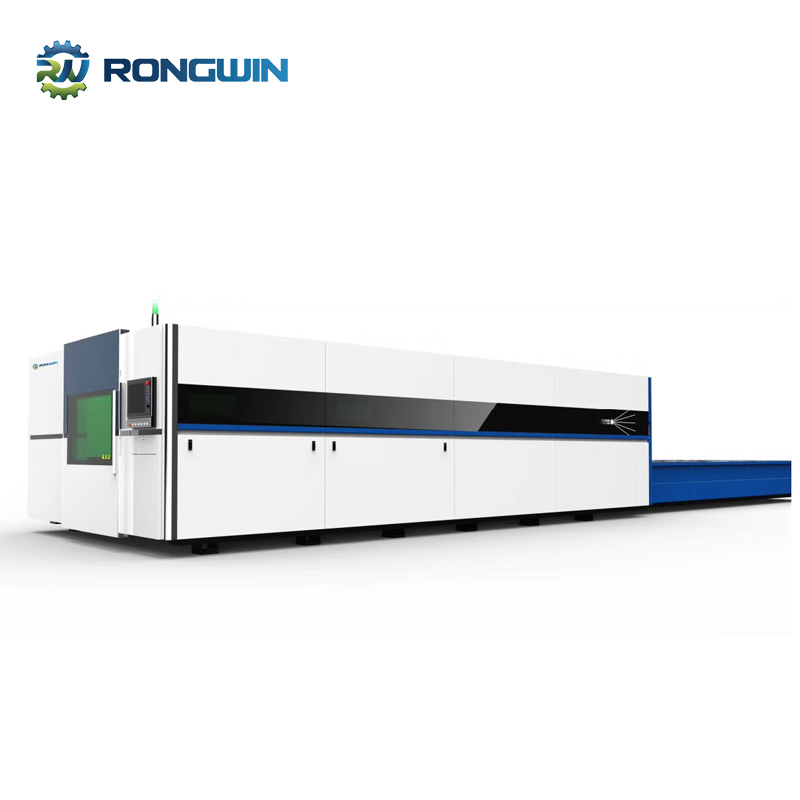

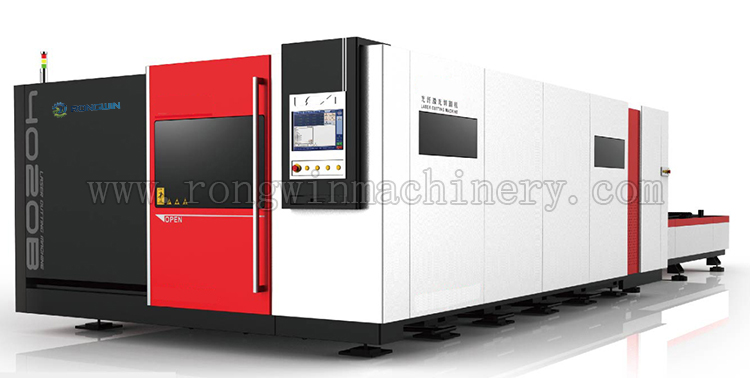

Product item: Enclosed type CNC fiber laser cutting machine for metal sheet

1. Useful

Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.

Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.

2. High quality double drive enclosed type exchange table fiber laser cutting machine features

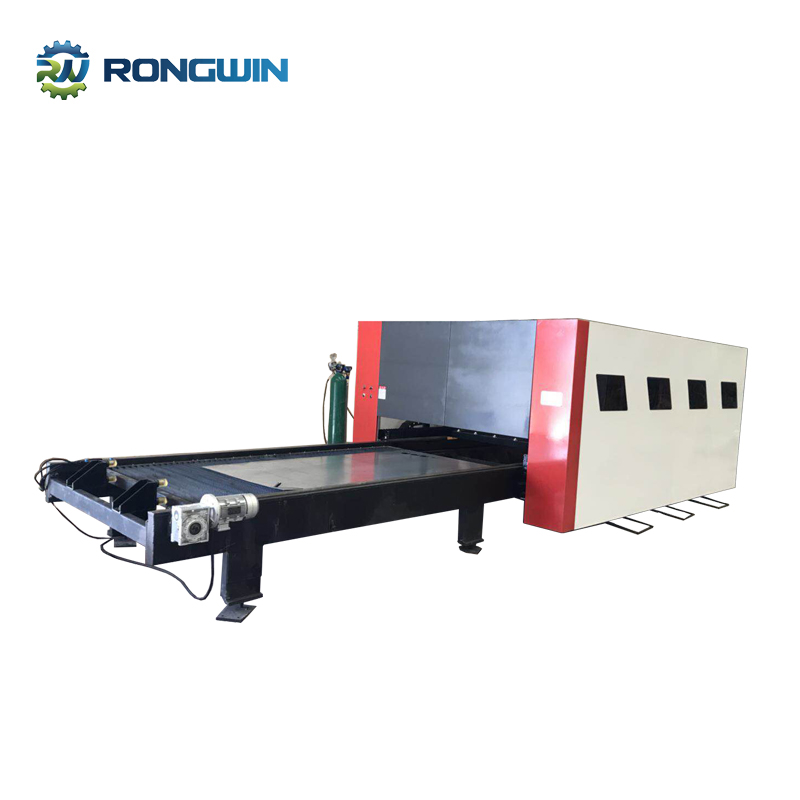

Double exchange platform saves time of loading and unloading.

High speed to improve work effciency.

Electrical control system adopts international famous brand:Schneider and IMRON etc.

The guide rail and rack are calibrated by precision collimating instrument,and the precision is achieved±0.03mm. Using the Japanese intelligent gas group design,can automatically adjust pressure,automatic ventilation,pressure detection.

The whole machine is tempered at high temperature,the internal stress is eliminated with the furnace cooling,and the imported gantry milling finishing,ensure normal use of 20 years without deformation.

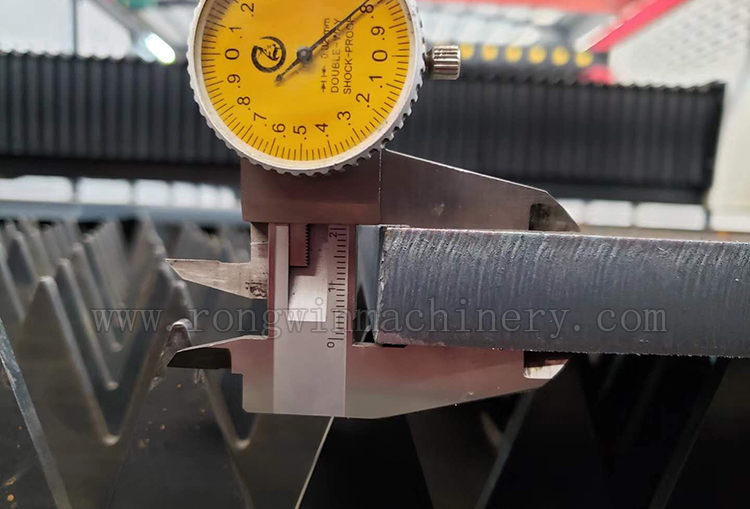

Cutting sample

The Advantage of our Enclosed type CNC fiber laser cutting machine for metal sheet

★The main frame adopts the gantry structure and the whole bed is welded,to ensure the long term stability and no deformation of the machine.

★Machine tool bed is processed by gantry milling machine and is formed at one time.

★The whole machine is tempered at high temperature,the internal stress is eliminated with the furnace cooling.

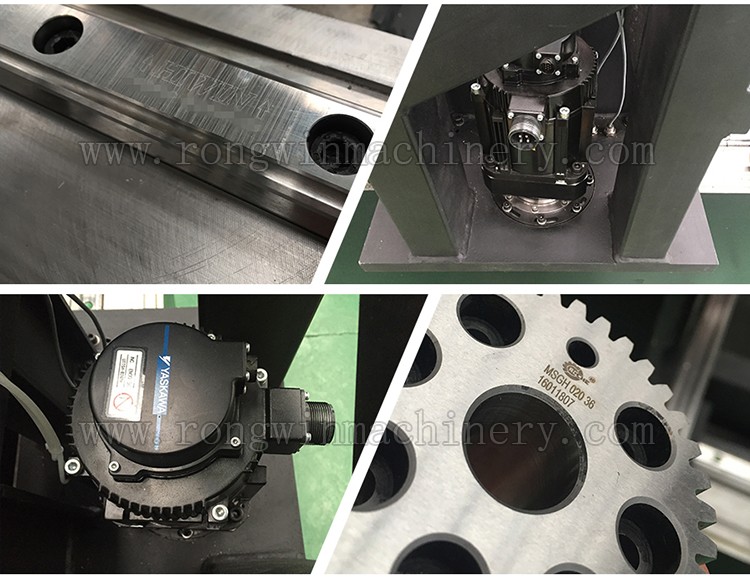

★Using double rack rails,double servo drive structure.

★Improving the stability and rigidity of the Y axle beam

★The high precision and high dynamic performance of the Y axle beam movement is ensured.

★The Y axle beam runs at high speed and smoothly, greatly reducing the consumption of gas.

★The internal struct using domestic firsture of the laser head is completely sealed, and the dustproof grade reaches 6 grade to 7 grade, which can avoid the dust pollution of the optical part;

★Magnetic protection against collision, flexible and convenient to reset and alarm function;

★The cutting height is set by panel operation or programmable CNC control;

★The height control can be realized through the Z axis servo motor and the drive system;

★Modular design, high precision, easy maintenance.

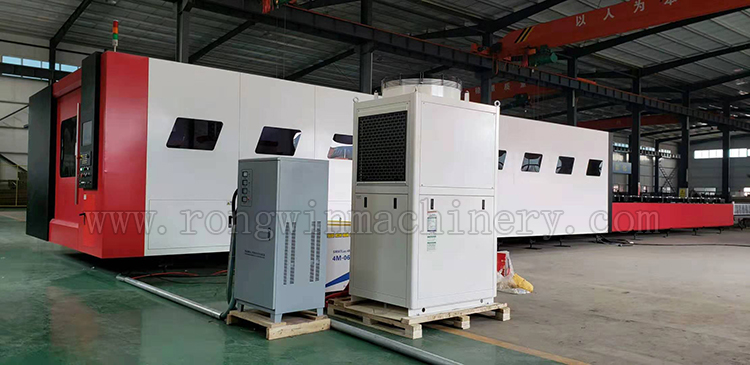

★ Using domestic first-class brand, professional laser chiller, good stability, high precision.

★With two way temperature control, the laser and the cutting head can be controlled at different temperatures, the stability of the laser and the cutting head can be guaranteed more effectively.

★This function includes: pressure alarm, high and low temperature alarm, abnormal voltage alarm, and fault alarm etc.

Between the guide and rack using precision collimator to calibrate the accuracy of ±0.01mm

★High speed and high precision position ring

★High speed gantry control/ capacitive servo

★Speed control function of laser energy

★Power off function / power off return function

★Flight cutting / automatic border / multistage perforation

The beam sliding table adopts integral cast aluminum parts, which can reduce the weight of the beam and ensure good stability, So that can meet the high-speed operation of the machine .X,Y, Z three-axis drive with full servo motor, high precision, fast response.
