RONGWIN 2022 CNC Water Jet Cutter 5 Axis waterjet Cutting Machine for Hot sale

RONGWIN 2022 CNC Water Jet Cutter 5 Axis waterjet Cutting Machine for Hot sale


1, Standard waterjet cutting head

A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.

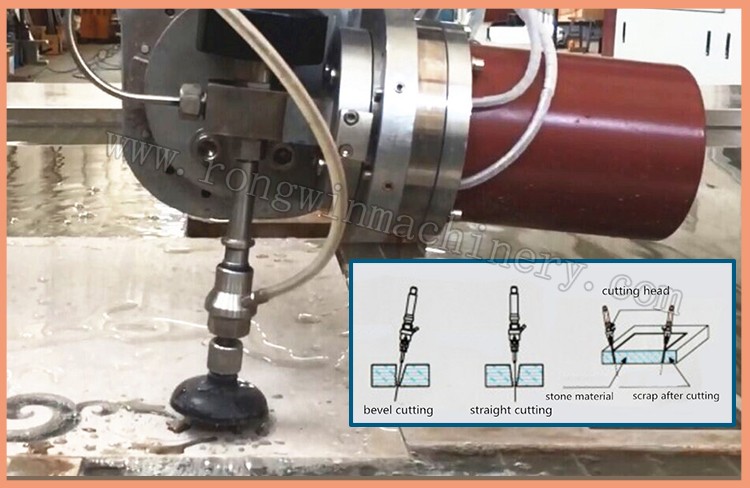

2, Dynamic 5 cutting head

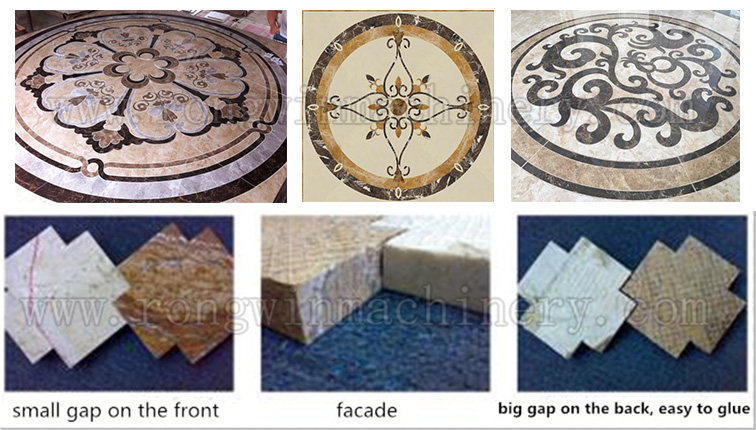

Rongwin Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate 10° cutting angle. It is a kind of bevel cutting machines. Due to the water jet cutting is a way of flexible cutting, therefore the product cross section after cutting by the traditional 3 axis water jet cutting machine will have a certain degree of inclination. In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.

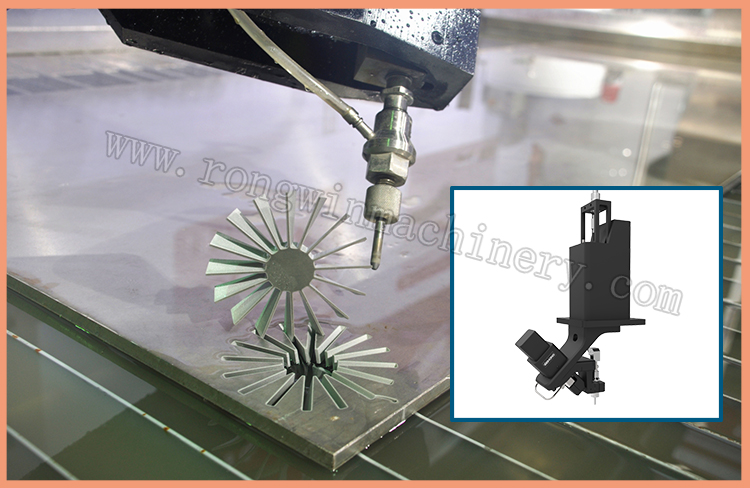

3, Max 5 cutting head

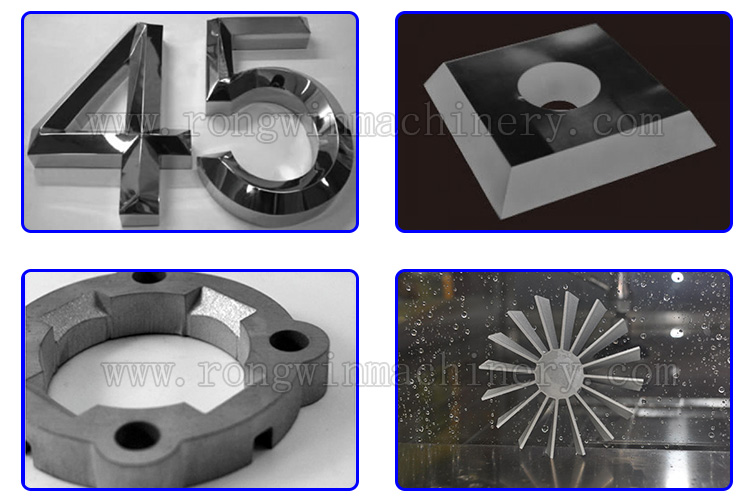

This Max 5 waterjet cutter can cut any angle within ±45°, it solves nal problem of water cutting inclination, and achieves 2D/3D cutting easily.

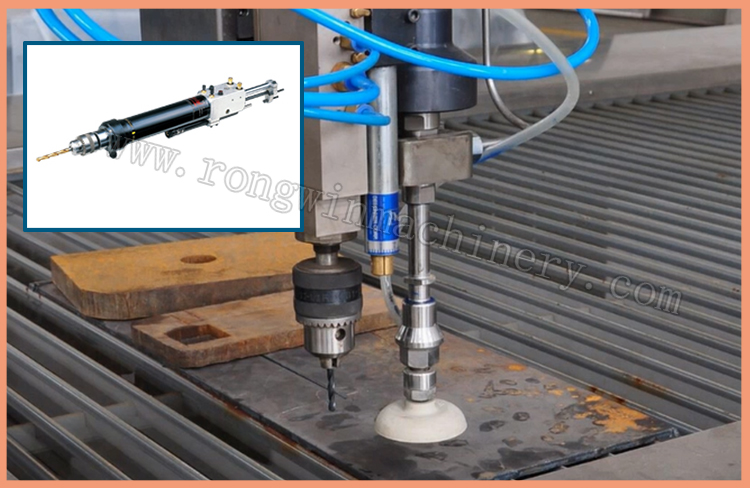

4, Cutting head with drilling function

It perfect combination of automatic drilling assembly and CNC waterjet system can achieve the automatic drilling, automatic feeding, automatic chip removal, pre-drilling before cutting and other functions for smaller pore. It has the ability to complete a one-time cutting drilling, that improve the quality of products, but also improve the efficiency of production.

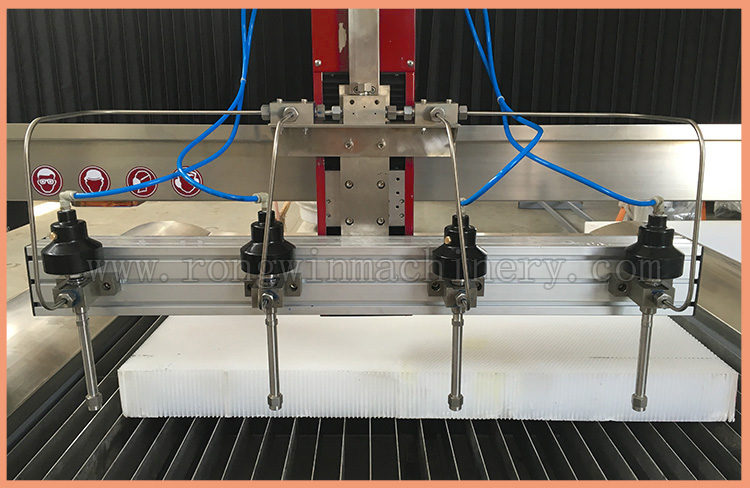

5, Multi-head

Double cutting head or multiple cutting head means have two or more cutting heads on a cutting platform, that at the same time can perform the cutting task with the same track.

Mainly for large quantities of small parts,the capacity can be double or more under equivalent energy consumption.

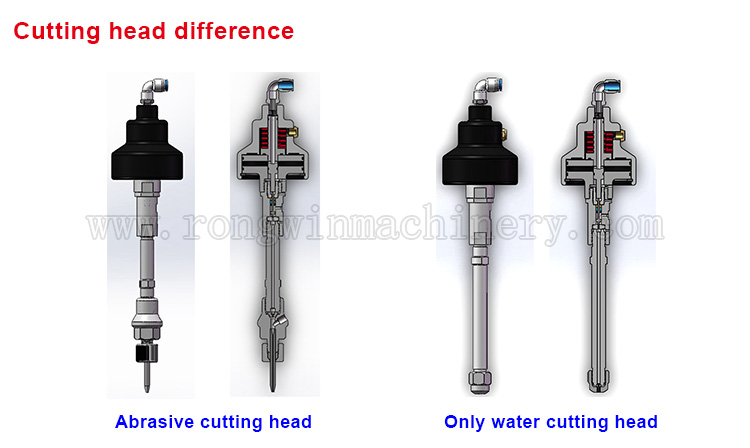

High pressure water jet is mainly divided into two types:

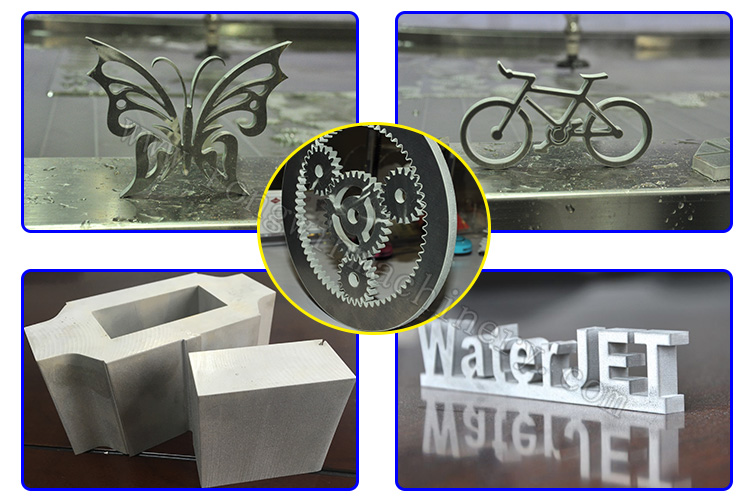

Abrasive cutting is mainly for metals (such as carbon steel, stainless steel, etc.), non-ferrous metals (such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber), etc.

Pure water cutting is mainly for rubber, foam, cloth, paper, rock wool, food, etc.
