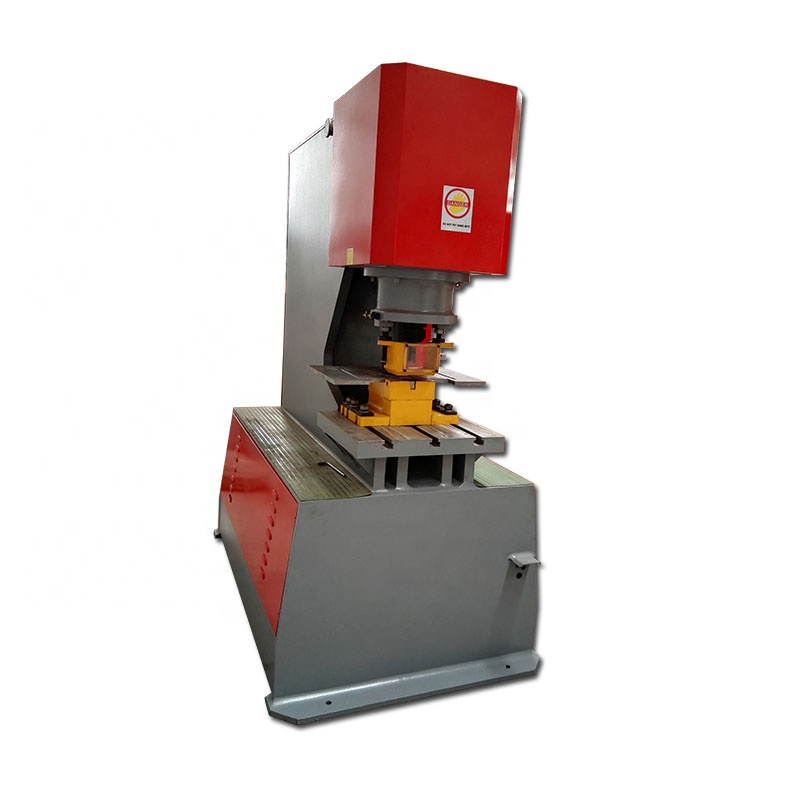

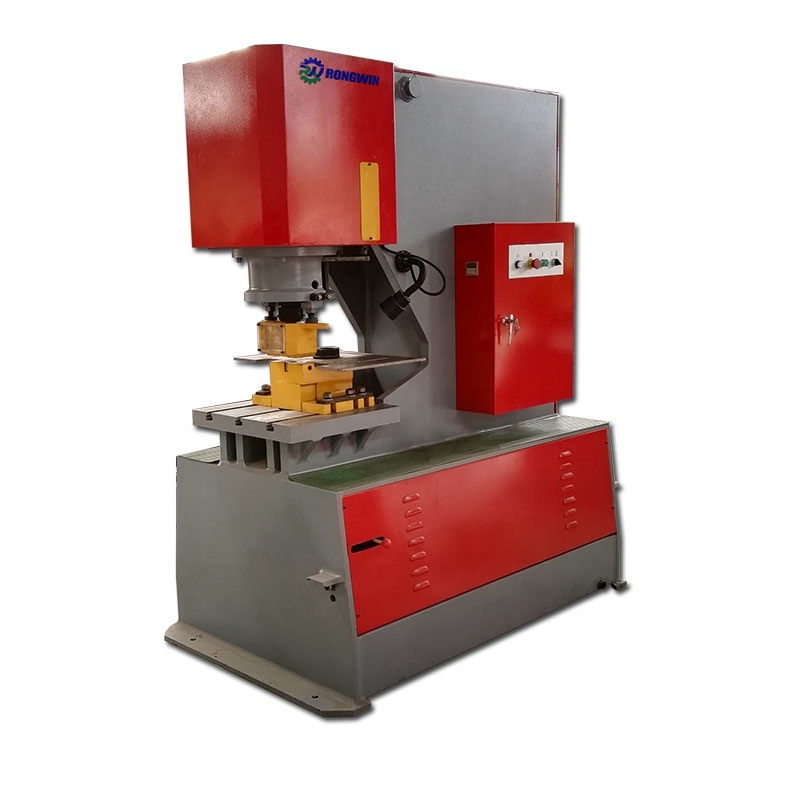

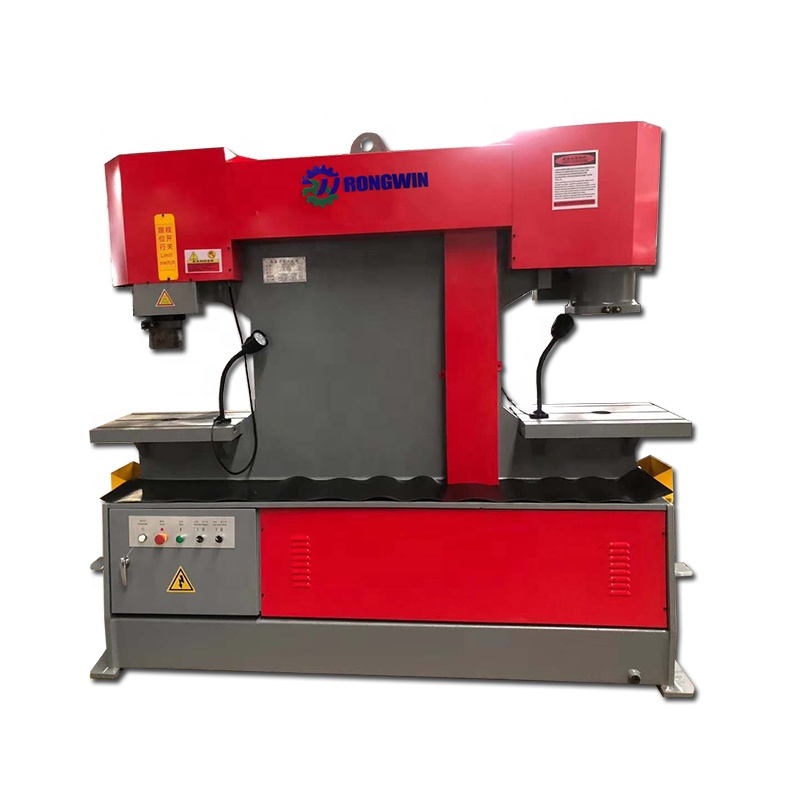

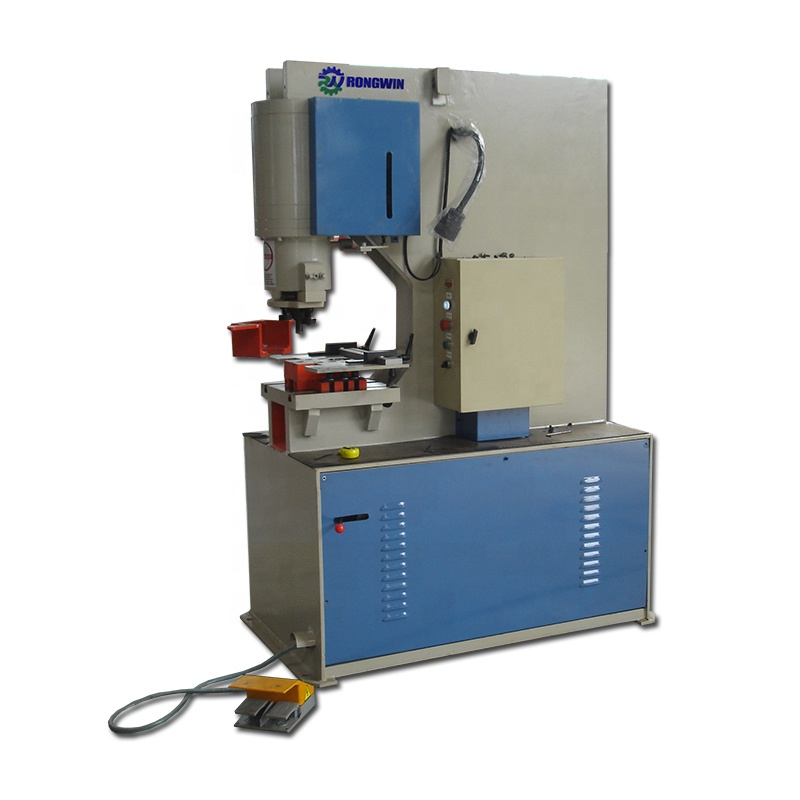

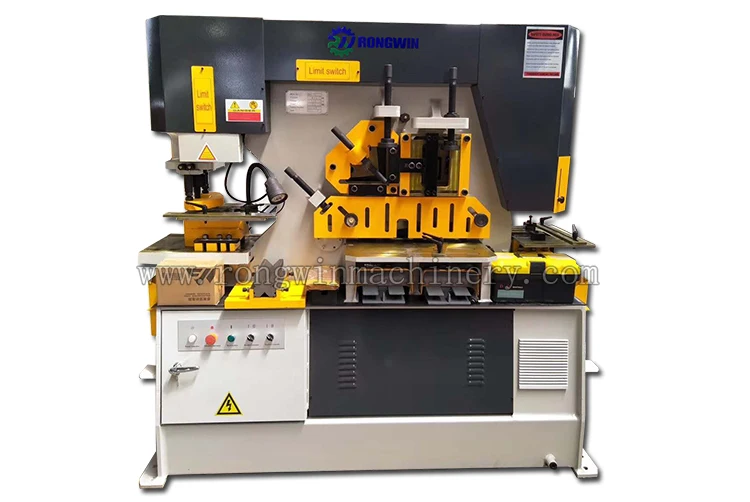

Q35Y Series Hydraulic Ironworker Combined Punching And Shearing Machines
Q35Y Series Hydraulic Ironworker
Model
Q35Y Series Hydraulic Ironworker
MOQ
1
Payment
L/C, T/T, Western Union, MoneyGram
Place of Origin
Anhui, China
Brand
RONGWIN
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享
Product Description
Q35Y series hydraulic ironworkers combined punching and shearing machines is designed by the most advanced technology, which has the advantages of easy operation, low consumption and low maintenance cost.
Hydraulic ironworkers machine has multiple functions, including: round hole, square hole, rectangular hole punching; steel plate, flat steel, angle steel, C-groove, H-shaped steel punching; steel plate bending; angle steel shearing, notching and bending; Flat, round, square bar, C-shaped channel, I-beam, T-bar shear; angle bending and pipe notching.
Q35Y series hydraulic ironworker tools have multi-function functions, which is your first choice among similar machines. In addition, all components are of the highest quality in terms of safety, function, performance and maintenance.




Electrical Cabinet
Main electric is Schneider brand . Equipped with open door automatic power-off protection device , more safe .




  • Main Motor and Valve

Chinese famous brand Shuangta motor and imported valve from Japan

Laser calibration
Higher processing accuracy and easy operation.
Detailed Images

Backgauge

The stop backgauge can be adjusted in accordance with the shearing length, thus, it can control efficient shearing length automatically.

Notching

Special design can excellently cut right-angle, bevel and notch on the angle steel, profile steel and plates. There is a large visible window with scale and stop gauge.

Punching

Full range of universal punches and dies are available . Unique style allows for large angle iron punching, pipe punching and large channel punching .

Bending

Channel steel shearing

I-beam shearing

Round and Square bar shearing

Round and Square bar shear has multiple holes for a variety of sizes. Adjustable hold own for clean square cutting. Optional Channel and beam shears available.

Steel plate and angle steel shearing

There are several visible holes in adjustable holder, which can ensure accurate shearing of steel plates and 45°angle.Working table with scales and adjustable plates can do angle shearing.

Automatic presser foot

Optional automatic presser foot device, saving time and effort, simple operation.
Optional
We also provide CNC hydraulic ironworkers with E21 controller and automatic backgauge.
The ironworker CNC backgauge can be positioned more conveniently, the operation is simpler and the efficiency is higher.

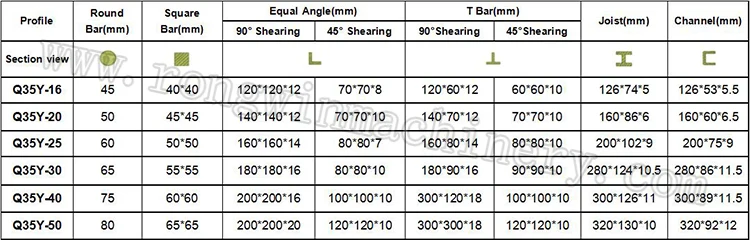

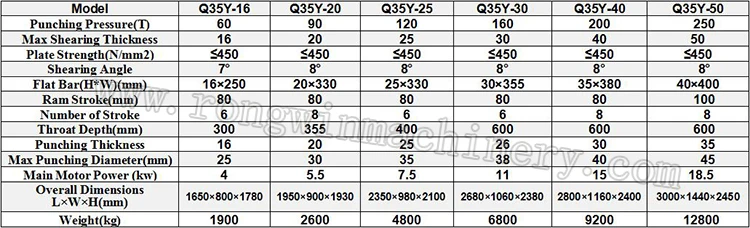

Product Paramenters
Model
Q35Y-16
Q35Y-20
Q35Y-25
Q35Y-30
Q35Y-40
Q35Y-50
L(mm)
1650
1950
2350
2680
2800
3000
W(mm)
800
900
980
1060
1160
1440
H(mm)
1780
1930
2100
2380
2400
2450
Weight(Kg)
1900
2600
4800
6800
9200
12800
Packing&Shipping
