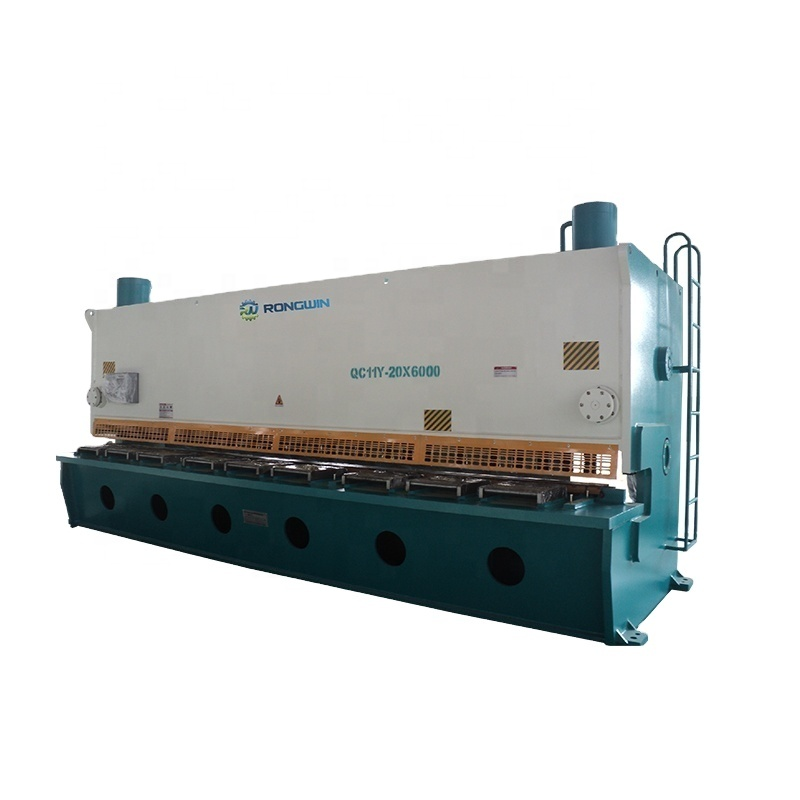

Professional Hydraulic Shearing Sheet Cutting Machine

Product Description

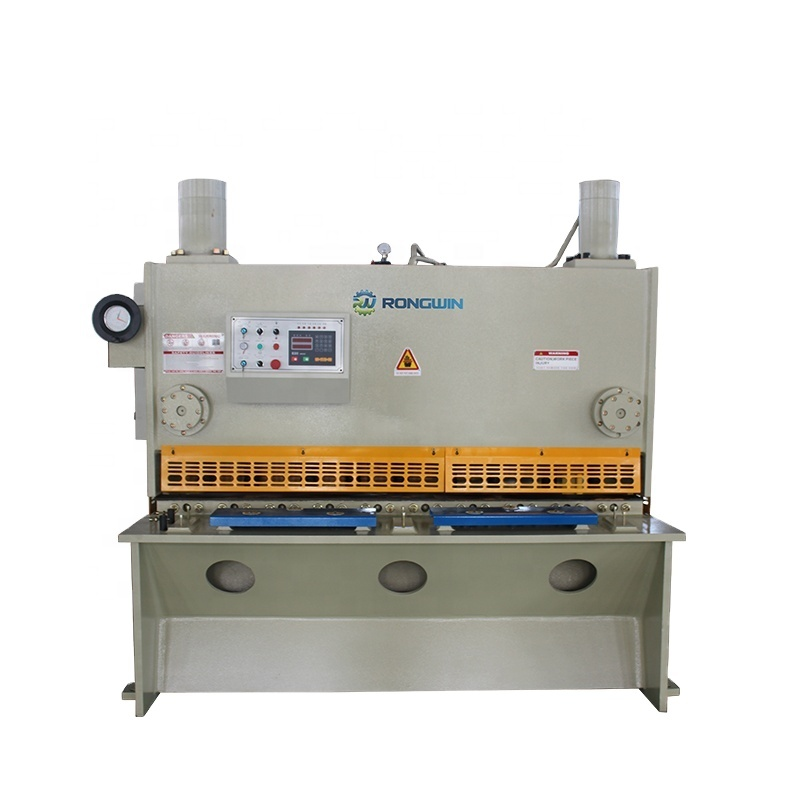

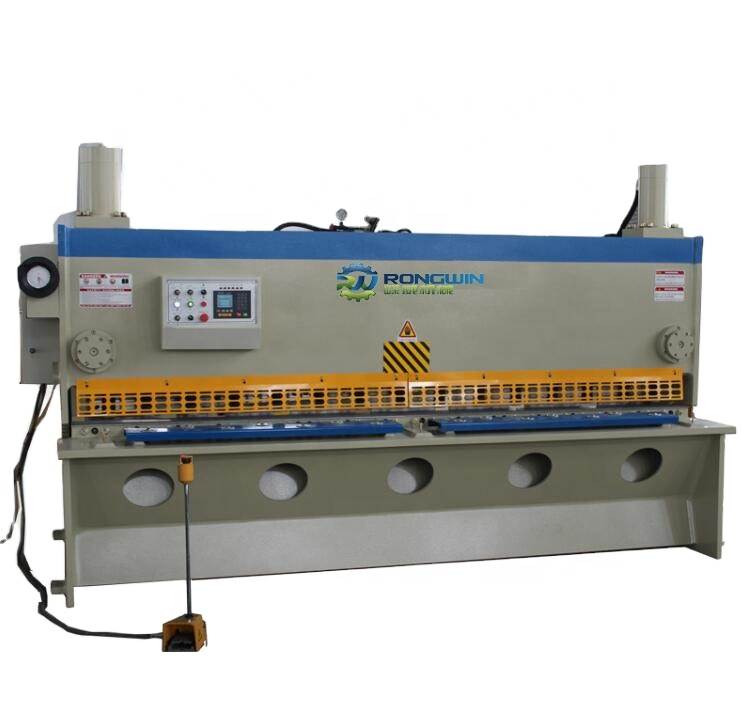

China Supplier QC11Y E21Controller Hydraulic Guillotine Shearing Machine1.The frame is steel welded structure, have sufficient strength and rigidity, eliminate internal stress and high frequency vibration, to ensure the overall accuracy of the fuselage. Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).2.Shear blades use 6CrW2Si material , heat treatment ,high quality materials ,can cutting stainless steel ,top blade with four cutting edges ,bottom blade with four cutting edges. 3.Worktable use ball, convenient feed materials, and ensure that the workpiece is not scratched at run time.

Detailed Images

Main motor

Germany Seimens brand

Hydraulic valve

Germany Rexroth brand

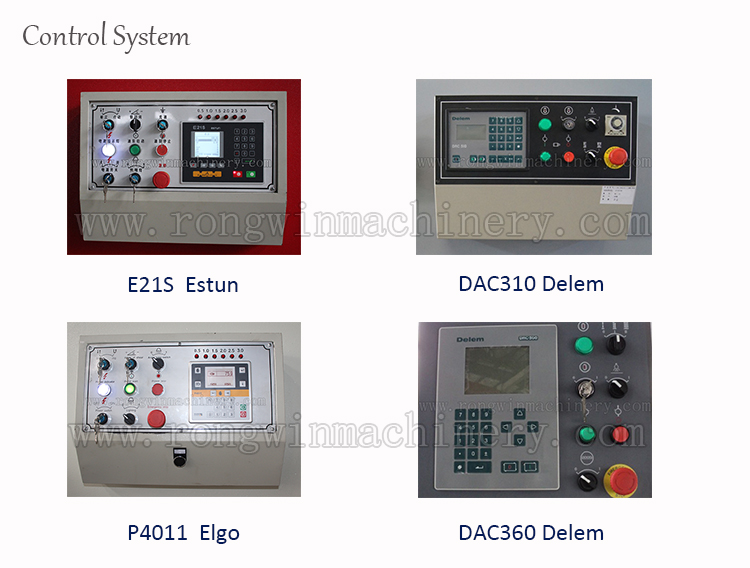

Electrical Control System

France Schneider brand

Backgauge

1.Backgauge use ball screw to improve accuracy;
2.Backgauge driven by motor with digital display.

Front carrier

Roller ball is installation on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately.

Guillotine shearing machine shearing angle is adjustable. The blade for guillotine type can be 4 useful.
The blade gap clearancecan be adjusted by motor or hand wheel.
Our machine add frequency inverter, X axis can one time positioning, if do not add this part, X axis cannot one time positioning.

Size Information

Packing&Shipping

Overview

Quick Details

Max. Cutting Width (mm):: 3200 mm

Max. Cutting Thickness (mm):: 6 mm

Automatic Level:: Fully Automatic

Shearing Angle:: 0.5, 1, 1.5, 2, 2.5, 3

Blade Length (mm):: 3300 mm

Backgauge Travel (mm):: 0.01 - 800 mm

Throat Depth (mm):: 100 mm

Condition:: New

Brand Name:: Rongwin

Power (kW):: 7.5 kW

Weight (KG):: 6000 KG

Place of Origin:: Anhui, China

Voltage:: 380v

Dimension(L*W*H):: 3510*1600*2060

Certification:: CE

Year:: 2021

Warranty:: 1 years

Key Selling Points:: High Rigidity

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Applicable Industries:: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company, Shearing Machine

Local Service Location:: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Kenya, South Korea, Chile, UAE, Sri Lanka, South Africa, Ukraine, Nigeria, Uzbekistan

Showroom Location:: United Kingdom, United States, Italy, France, Germany, Brazil, Indonesia, India, Mexico, Russia, Thailand, Kenya, South Korea, UAE, Sri Lanka, South Africa, Uzbekistan, Japan, Malaysia
