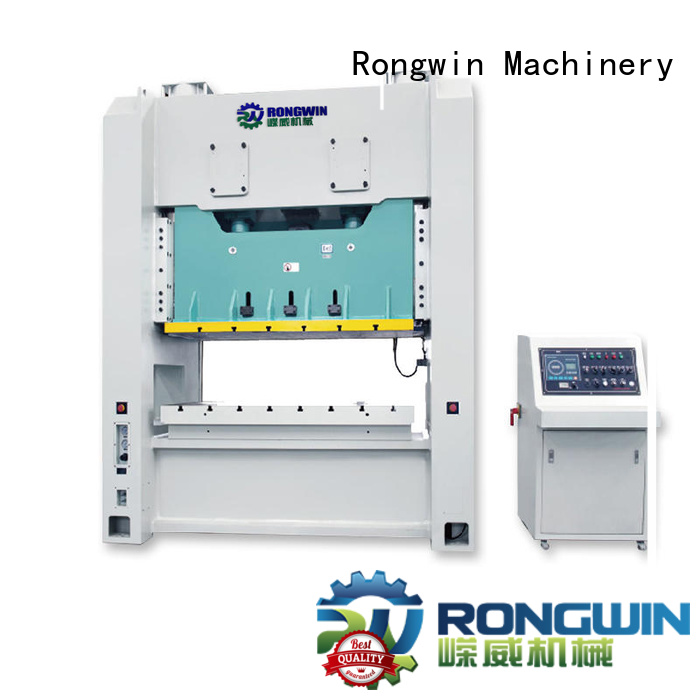

pressautomatic h type power press machine for press fitting Rongwin
Rongwin h type power press machine is crafted by skillful and experienced workers, with exquisite appearance.
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享
Product Details
With a focus on details, Rongwin strives to create high-quality hydraulic metal shear manufacturers.Rongwin's hydraulic metal shear manufacturers is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.
Company Advantages
1. Rongwin h type power press machine is crafted by skillful and experienced workers, with exquisite appearance.
2. The product meets the international quality standards and can withstand any rigorous quality and performance tests
3. The product is widely recommended and treasured in the industry.
4. The product stands out in the market with its great important application prospects.

Company Features
1. Nanjing Rongwin Machinery Technology Co.,Ltd. is a professional generator dedicated to h type power press machine .
2. Over the years, we have successfully cooperated with many well-known brands that have endorsements of our products. This has made our products known more to people.
3. Our company demonstrates the commitment to sustainable development. From protecting natural resources to giving back to the community, we strive to be accountable to our employees, communities, and the planet. Customer-orientation is our business principle. Instead of taking customers for granted, we would like to take every customer as an opportunity to strengthen our brand image and to attract more customers. We have upgraded our capabilities from time to time to meet the environmental and emission norms. To continue this endeavor, we are being equipped with high-end technology to deal with production waste.

RONGWIN

PRUODUCT DISCRIPTION

Product Name:H frame Power Press Machine

Also called:Stamping Mechanical Punch Press Machines/Straight Side Double-crank Press/Double crank power press machine/CNC straight side Double crank press


Model

JH36-160

JH36-200

JH36-250

JH36-315

JH36-400

JH36-500

JH36-630

1

Nominal Capacity

160Ton

200Ton

250Ton

3150Ton

400Ton

500Ton

630Ton

2

Force happen position

5mm

7mm

7mm

8mm

9mm

13mm

13mm

3

Slider stroke

200 mm

250 mm

280 mm

280 mm

280 mm

320 mm

320 mm

4

Stroke times

30-45Times/Min

25-45Times/Min

20-40Times/Min

20-35Times/Min

20-35Times/Min

18-25Times/Min

18-25Times/Min

5

Max closing height

450mm

500mm

550mm

550mm

600mm

700mm

700mm

6

Closing height adjustment

100mm

110mm

120mm

120mm

130mm

130mm

150mm

7

Poles distance

1880mm

2190mm

2800mm

2800mm

2900mm

3100mm

3100mm

8

Distance from Worktable to ground

900mm

1000mm

1100mm

1085mm

1120mm

1140mm

1250mm

9

Worktable size (Left to Right)

1800mm

2150mm

2500mm

2500mm

2800mm

3000mm

3000mm

10

Worktable size (Front to Back)

760mm

940mm

1000mm

1000mm

1000mm

1200mm

1200mm

11

Slider base size (Left to Right)

1600mm

1850mm

2480mm

2480mm

2500mm

2700mm

2700mm

12

Slider base size(Front to Back)

650mm

750mm

900mm

900mm

950mm

1100mm

1100mm

13

Machine side mouth size (Up to down)

450mm

600mm

600mm

600mm

700mm

750mm

750mm

14

Machine side mouth size (Front to Back)

700mm

700mm

900mm

900mm

1050mm

1100mm

1100mm

15

Dimension (UD×LR×H)

2700×2380×3280mm

2790×2460×4075mm

3600×2755×4462mm

3700×3065×4510mm

3820×3350×4735mm

4330×3500×5585mm

4330×3500×5700mm

16

Motor Power

15KW-4P

22KW-4P

37KW-4P

37KW-4P

45KW-6P

55KW-4P

75KW-4P

17

Machine weigh

25500KG

35000KG

42000KG

45000KG

52000KG

62000KG

80000KG
