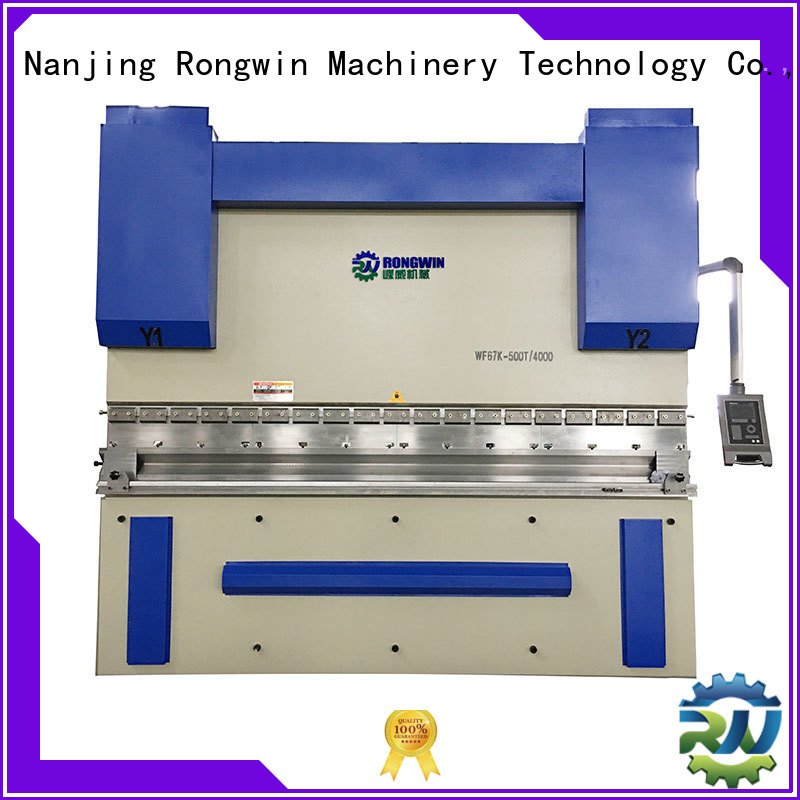

This CNC press brake also called as bending machine is very good accuracy for bending customer’s profile, because we can use international brand linear guide ,ball screw, servo motor to increase the machine accuracy. We can make the machine be customized design, we have different model for customer to select, like 40Ton, 63Ton, 80tON,100Ton, 125Ton, 160Ton, 125Ton, 160Ton, 200Ton, 250Ton ,300Ton, 400Ton, 500Ton, 600Ton. We also can make the machine according to customer’s bending length,such as 1.3meters ,1.6meters, 2meters, 2.5meters, 3.2meters, 4meters , 5meters, 6meters,if we use Imperial size, the machine length which we can make is
4 feet,6 feet,8 feet, 10 feet, 12 feet, 20 feet.
No. | Name | Amount | Unit |
1 | Nominal pressure | 5000 | KN |
2 | Workbench length | 4000 | mm |
3 | Poles distance | 3200 | mm |
4 | Throat depth | 450 | mm |
5 | Slipper stroke | 300 | |
| 6 | Max. opening height | 670 | mm |
| 7 | Ram speed | Fast descend:80-100 | mm/s |
Return trip: 60-80 | |||
Bending speed : 8 | |||
| 8 | Power | 37 | KW |
| 9 | Machine controller | DELEM DA52 CNC | |
| 10 | Controlled axes | Y1,Y2,X also crowing device | |
| 11 | Back gauge range | 600 | mm |
| 12 | Dimension (LxWxH) | 4300×2600×4400 | mm |
| 13 | Weight | 42 | T |
Components brand list for CNC press brake 500Ton
