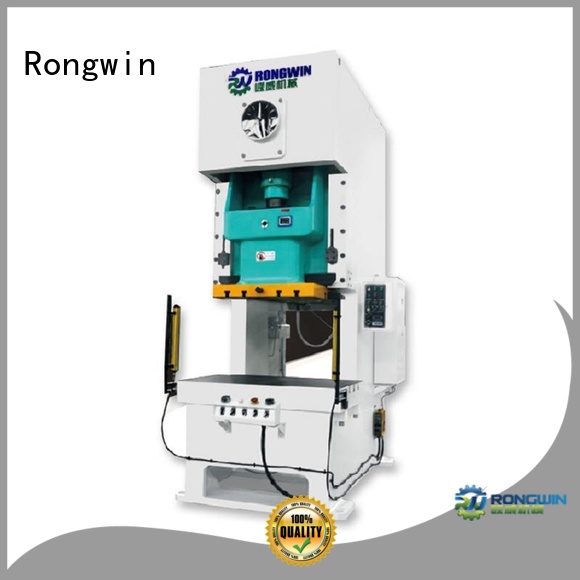

Single Crank Precision Press/Automatic C Type Single Crank Press/Single Crank C-Frame Power Presses

RONGWIN

PRUODUCT DISCRIPTION

Technical Information of Power Press JH21-25~500Ton

Item	Name	Model	Pcs	System
1.	Power Press	JH21-125Ton	1	ESTUN PAC30 CNC

Pneumatic power press product’s Technical Parameter

Type Specification		Unit	JH21-25	JH21-45	JH21-60	JH21-80	JH21-125	JH21-160	JH21-200	JH21-250	JH21-315	JH21-400	JH21-500
Nominal force		KN	250	450	600	800	1250	1600	2000	2500	3150	4000	5000
Full Force point		mm	3	3.2	4	4.5	5	6	7	7	7	8	8
Slide block stroke		mm	80	120	140	160	180	200	250	250	250	280	280
Number of stroke		times/min	60-100	50-80	60-110	55-100	50-95	40-75	35-60	30-55	30-55	30-50	25
Max die set height		mm	265	300	330	355	390	440	510	550	550	580	550
Die set height adjustment		mm	50	60	70	80	90	110	110	120	120	120	120
Distance from slide block center to the frame		mm	210	225	270	310	350	390	430	450	450	480	480
Workable dimensions(L·R x F·B)		mm	700*400	810*440	870*520	950*600	1100*680	1170*760	1390*840	1500*880	1540*880	1700*940	1800*940
Thickness of worktable		mm	80	110	130	140	155	165	180	190	190	200	250
Slide base area size (L·R x F·B)		mm	360*250	410*340	480*400	540*460	620*520	700*580	880*650	950*700	950*700	1000*750	1000*750
*Die shank hole size(DiameterDepth)**		mm	40*60	50*60	50*70	50*70	70*80	70*100	70*100	70*100	70*100	70*100	70*100
Distance between Anchor bolts(L·R x F·B)		mm	690*1080	754*1190	840*1100	920*1235	1040*1510	1140*1660	1360*2020	1460*2150	1500*2320	1550*2500	1668*2585
Overall Dimension (L·R x F·B x H)		mm	83013902120	107516252391	120016852560	128019902725	122021253055	137523553215	169025803810	168028203915	172030603957	179031504320	177031054325
Gas cushion	Ejection force	kn		23	35	63	80	100	140	140	140	140	140
	Stroke	mm		60	70	80	90	100	100	100	100	100	100
	Roof area	mm		300*220	350*220	410*220	460*340	540*420	560*420	560*420	560*420	560*420	560*420
Motor		KW	3	5.5	7.5	7.5	11	18.5	18.5	30	37	45	37
Weight		KG	2600	3500	5500	7500	11000	15200	20500	23500	28000	33000	42000

Technical introduction of JH21 power press

1 Suitable for various cold stamping process :blanking, punching, molding, bending, pulling and stretching etc Widely used in the field of electrical appliances, vehicles, agricultural machinery, tractors,mining machinery, hardware and tools, machinery manufacturing, and other industrial field

2 Welded body with steel plate, higher stiffness and accuracy, Adopts longitudinally placed crankshaft, compact structure and beautiful appearance.

3 Adjust die height adjustment electrically by CNC controller. Slider square figure long guide with six frictions and bronze liner, which is higher precision.

4 Adopts combined friction clutch and brake, engages stably and runs sensitively, Fixed with the slide, the mechanical overload protector will protect the machine from overloading.

5 Lift balance cylinder, makes the slider rod balance.

Main outsourcing parts list

NO.	Item	Quantity	Remark(brand)
1	PAC-30 cnc system	1 set	Nanjing ESTUN China
2	Laser Safety Device	1 set	Jining laien China
3	Pneumatic friction clutch	1 set	Shanghai Dingjie
4	Air distribution system	1 set	AIRTAC , Taiwan brand
5	Auto lubrication device	1 set	China Domestic brand
6	Main electrical components	1 set	Schneider brand
7	Connections	1 set	Germany EMB
8	Foot switch	1 set	Korea KACON
9	Variable-frequency Drive and motor	1 set	Delta Taiwan
10	Hydraulic-overload protection	1 set	Showa Sikei,Japan

Introduction CNC system of PAC-30

According to the actual requirement, the number of the IO. Channels can be added optionally, and the maximum number Of the logic inputs and logic outputs are 40.

Touch-screen terminal with the customization pages, providing Good user interface.

Maximum support 20 channels PLS and DM, automatically Compensate the TDC.

Memory 10 working date,work-piece counter, multiple lubrication Control.

Double-channels tonnage monitoring, two overload approach is Compatible with overload safety valve.

The speed of transducer is controllable, the ports of IO can be configured.

Brake monitoring and alarm, software and hardware dual Protect TDC from over travelling.

Machine run environment:

Power source: 380V, 50Hz or according to customer’s request.

Environment temperature: 5-38℃ (Working temperature).

Environment moisture: Relative moisture 20~80%RH.

Far away from powerful vibration and electromagnetic interference

No pernicious and corrosive gas, and no dust.

Detailed configuration

Model	Parts	QTY	PICTURE
Pneumatic friction clutch	Standard allocation	1 set
Laser Safety Device	Standard allocation	1 set
Slide Adjust Device	Standard allocation	1 set
Air distribution system	Standard allocation	1 set
Auto lubrication devic	Standard allocation	1 set
PAC-30 CNC system and	Standard allocation	1 set
Variable-frequency Drive and motor	Standard allocation	1 set
Hydraulic overload protection	Standard allocation	1 set

Here is the main parts photo of the guillotine shear machine

Rongwin has specialized in metal working machinery and spare parts for 12 years
