1 set of punch and die
Rongwin has specialized in metal working machinery and spare parts for 12 years
Rongwin has specialized in metal working machinery and spare parts for 12 years

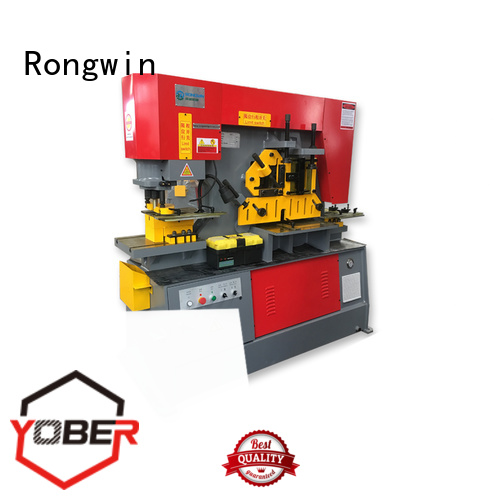

Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
Punching Pressure(T) | 60 | 90 | 120 | 160 | 200 | 250 |
Max Shearing Thickness(mm) | 16 | 20 | 25 | 30 | 40 | 50 |
Plate Strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
Shearing Angle | 7° | 8° | 8° | 8° | 8° | 8° |
Flat Bar(H*W)(mm) | 16×250 | 20×330 | 25×330 | 30×355 | 40×335 | 50×300 |
Ram Stroke(mm) | 80 | 80 | 80 | 80 | 100 | 100 |
Number of Stroke(times/min) | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 | 6-12 |
Throat Depth(mm) | 300 | 355 | 400 | 600 | 530 | 600 |
Punching Thickness(mm) | 16 | 20 | 25 | 28 | 35 | 40 |
Max Punching Diameter(mm) | 25 | 30 | 35 | 38 | 40 | 45 |
Main Motor Power (kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
Overall DimensionL×W×H(mm) | 1740×810×1830 | 1950×900×1950 | 2355×960×2090 | 2800×1050×2450 | 2900×1100×2500 | 3000×1440×2450 |
Weight(kg) | 1900 | 2600 | 4800 | 6800 | 9200 | 12800 |
.Service 01
Pedal switch :1 Pcs
.Service 02
Back guage (1 meter)
.Service 03
Hook Spanner
.Service 04
Inner Hexagon Spanner
.Service 05
Oil Gun
.Service 06
Some moulds for hearing ,bending , notching , and also punching
