HVAC Air Duct Manufacturing Machine T-15 TDF steel flange forming making machine for 1.5mm
HVAC Air Duct Manufacturing Machine T-15 TDF steel flange forming making machine for 1.5mm
Air Duct Manufacturing Machine T-15 TDF steel flange forming making machine
L/C, T/T, MoneyGram
Place of Origin

Add success, do you want to check your shopping cart?

Products Description

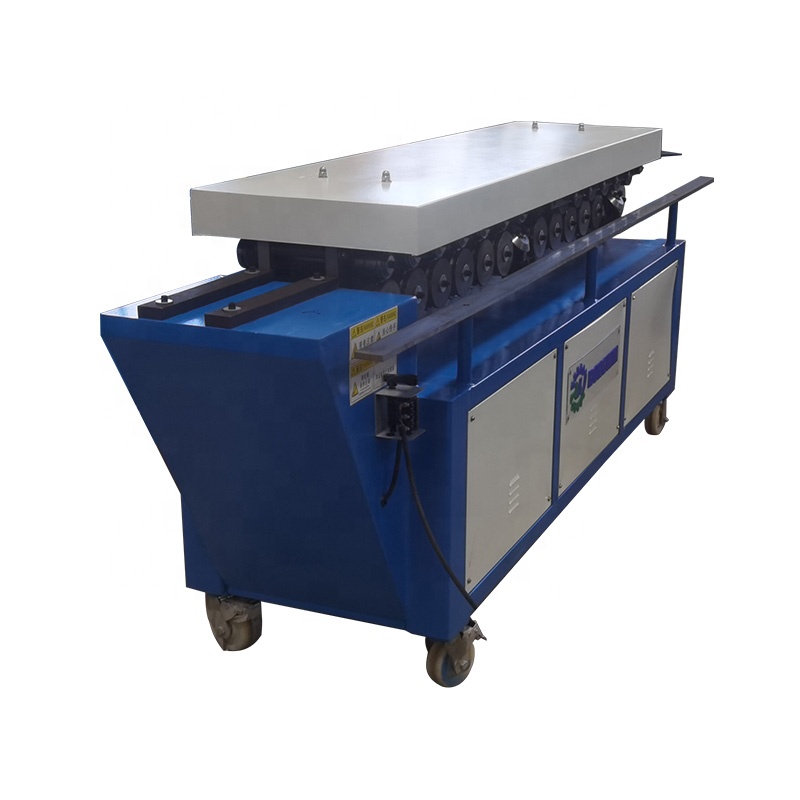

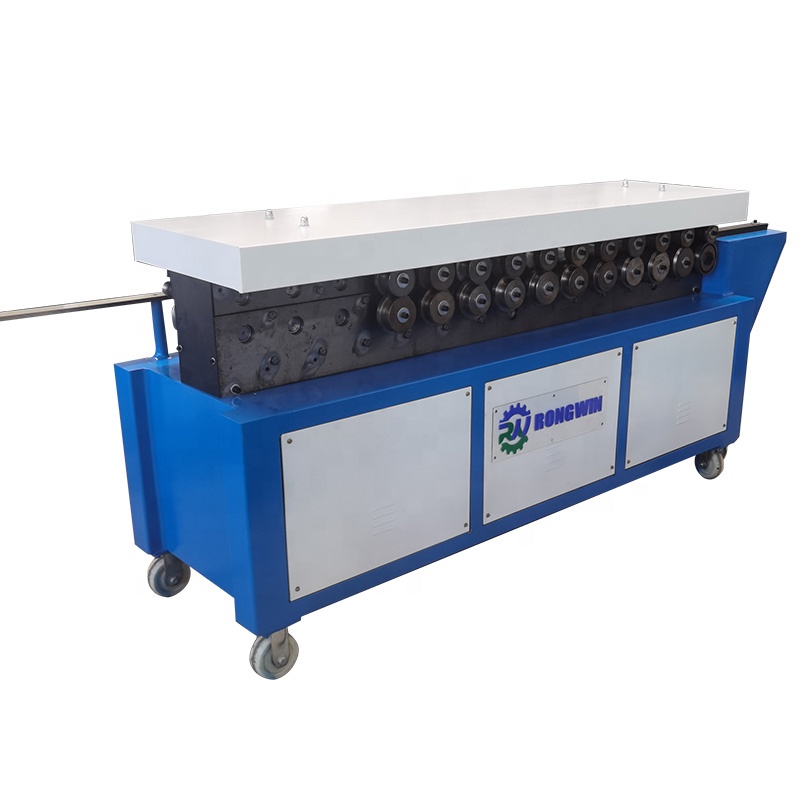

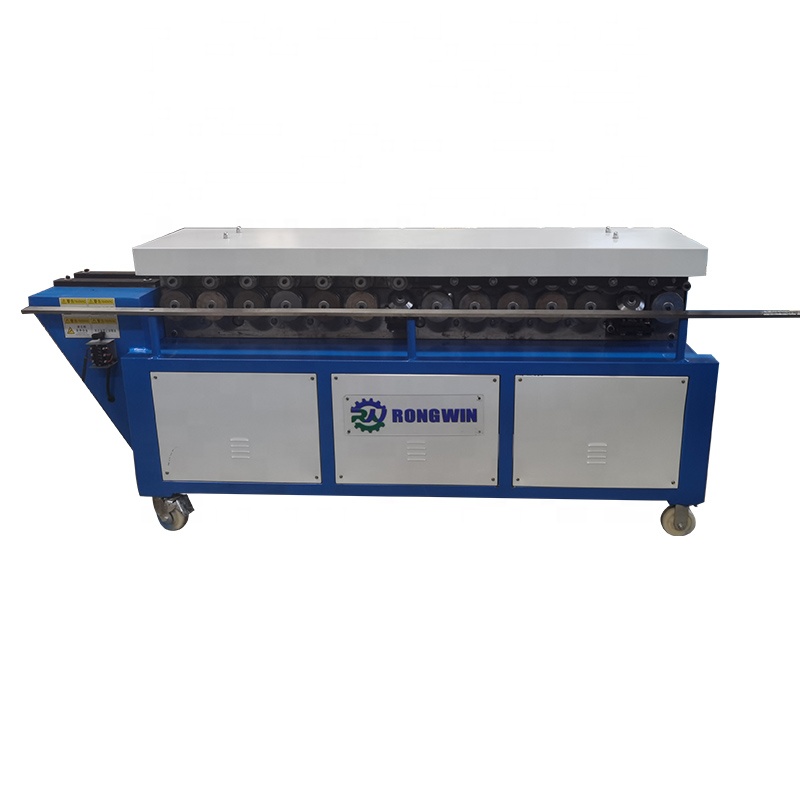

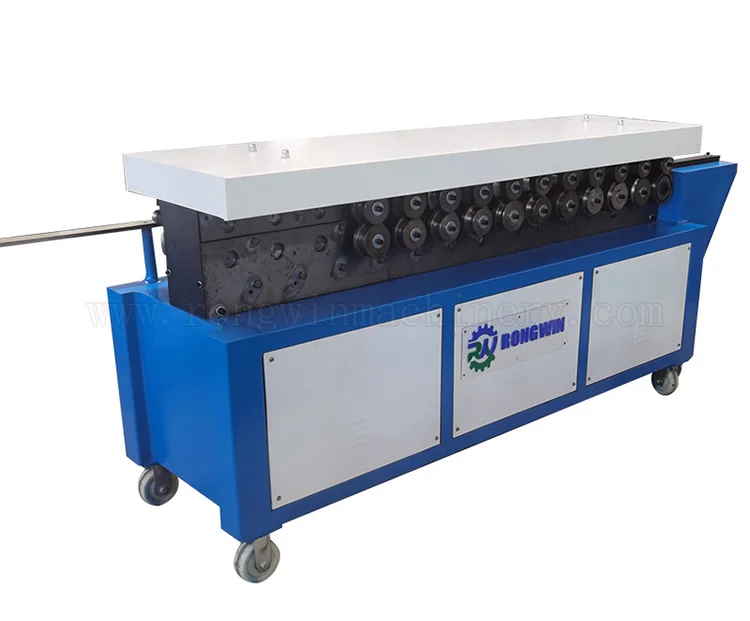

RONGWIN Factory price galvanized sheet metal air duct TDF flange forming machine for ventilation industry

Function:   RONGWIN TDF flange forming machine applies both sides feeding and simultaneously shaping work mode, one side forming TDF flange and one side forming is for installing hooks Apply shared-plate flange, therefore, the rectangle ductwork flange can be fast processed. It features low making cost and high installing efficiency, convenient for standard and batches of production. it is suitable for making rectangle wind pipe with big section.
Our Advantages
1.TDF unit is one of the two universal flange making systems in the world, with low cost, well-seal and easy-fabrication, specially suitable to produce a duct with medium section area and applied in large-scale industrial manufacture. 2.As a flexible machine, TDF will adapt to an auto line with a Pittsburgh lock machine, notcher and bending machine. It may also be used on site. 3.TDF system is divided into two types: T-12,T-15; from one side into clip and the other side into flange at the same time. 4. TDF may be commonly used for its width ranges from 300 to 1530mm. Its maximum work speed is 6 m/min.

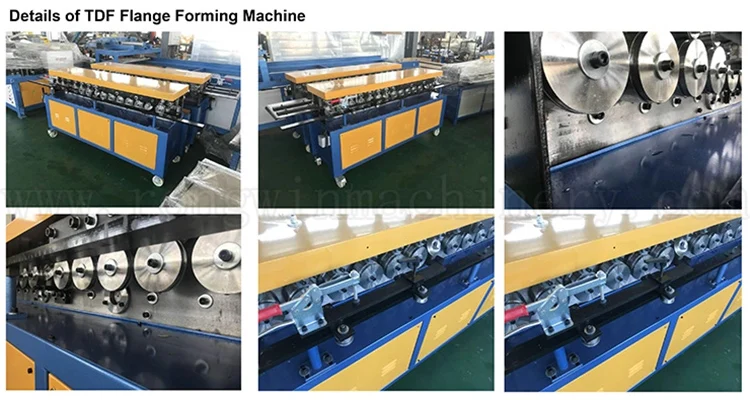

Detailed Images

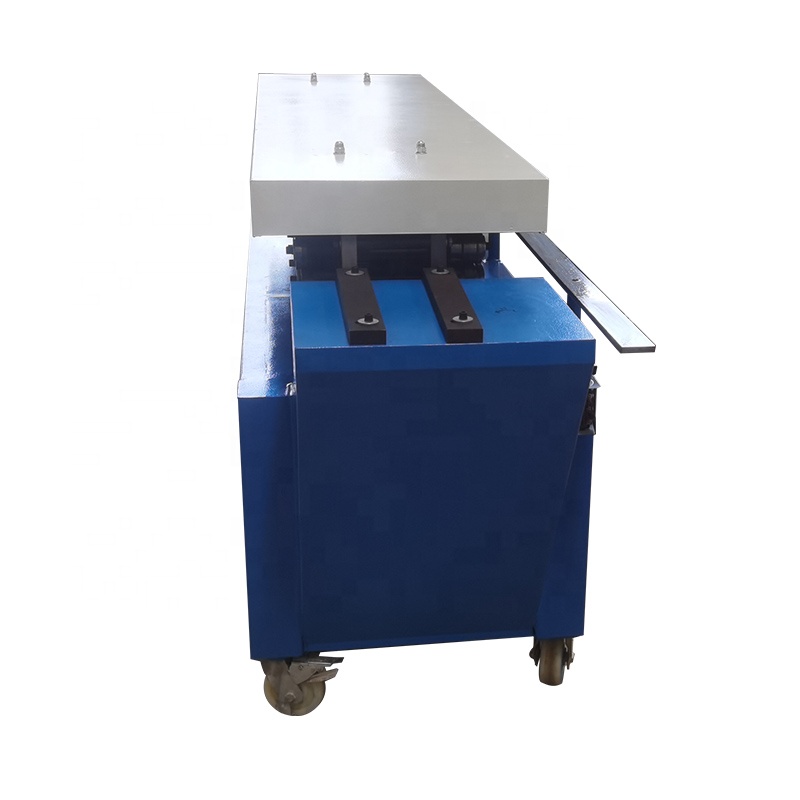

Auxiliary push plate
Auxiliary push plate to facilitate the forming of small flanges of 100mm or 80mm, avoiding the influence of the flange edge forming due to the too small length of the flange and the large distance between the forming rollers.

Forming station
The forming station is composed of 14 pressure rollers, with fast forming speed, accurate angle and low scrap rate of finished products.

Using high-quality materials, reliable quality, whole body quenching heat treatment, high hardness, perfect after-sales service, continuous high-load fatigue work strength of the roll is more than 2500 hours.

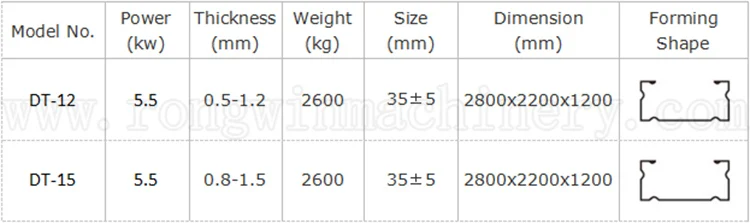

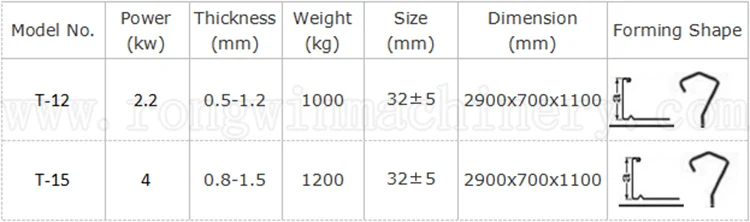

Machine parameters

Duplex TDF flange forming machine

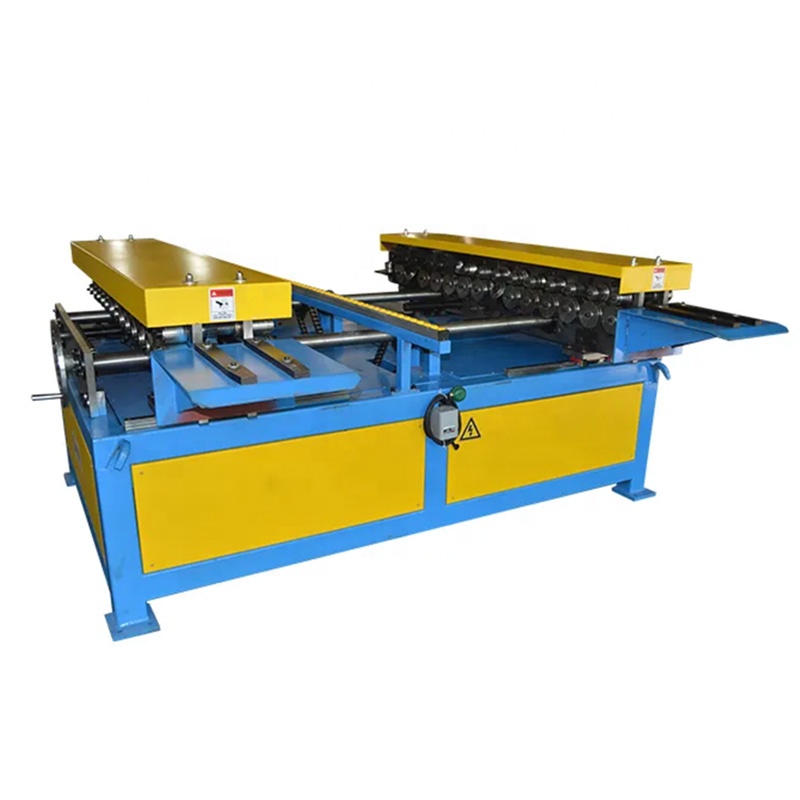

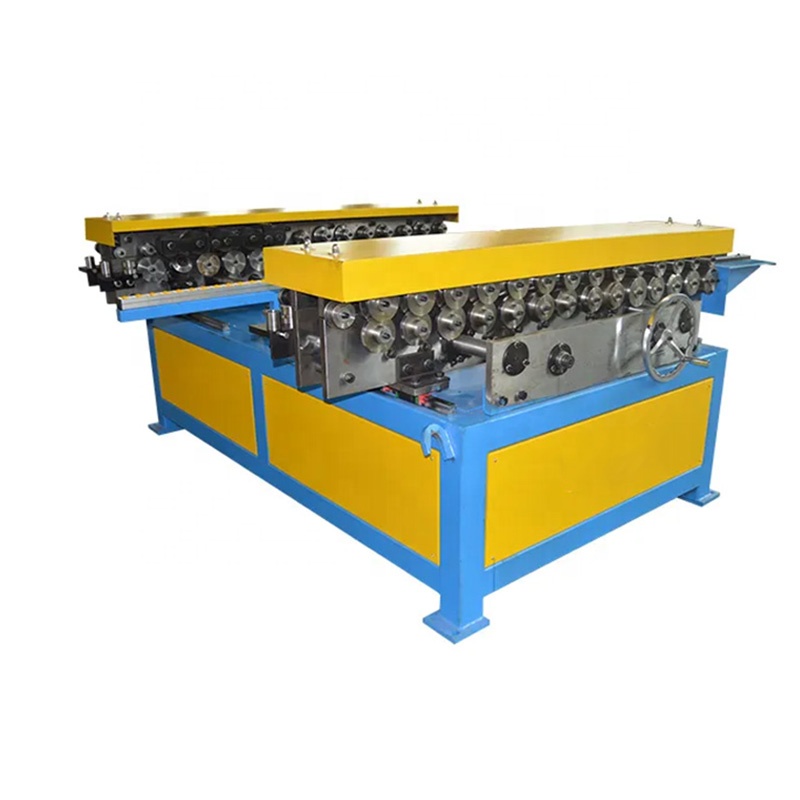

Duplex TDF flange forming machine can from flange at two sides of duct simultaneously. It's double -sided driven and able to meet mobile requirement of high loading and high accuracy with linear guideways of Taiwan Hiwin. Comparing with single type, duplex type help us improve efficiency, reduce delivery duration and save up labor. Our company would specially introduce high -sttrength
rolling reels made of GCr15, a kind of steel which prolongs the machine life by more than 5 times and outputs stainless steel TDF flange.

Est. Time(days)
Company Profile
Nanjing RONGWIN Machinery Technology Co.,Ltd is located in Zijin Technology Center, Lishui Economic Development
Zone,Nanjing,Jiangsu,China (Mainland). We are professional one-stop metal fabrication solotion supplier in China . Our factory with more than 30 years manufacturing experience . All of our machines meet CE and ISO Certificate .
Our main product are:
1)Metal Cutting Machines :Fiber Laser Cutting Machine ,Hydrualic Shearing Machine,V-Grooving Machine,Plasma Cutting Machine,Waterjet,Notching Machine,Tube Cutting Machine,Scrap Metal Shredder Machine ,
2)Metal Bending Machines: Hydrualic Press Brake ,Hydraulic Plate Rolling Machine,Hydraulic Tube Bending Machine,Hydraulic Profile Bending Machine,
3)Metal Forming Machines :Hydraulic Press ,Power Press,Ironworker, HVAC Dust Machine,Welding Machine,
4)Spare Parts for Metal Working Machines Press Brake Tooling,Blades, Molds and other spare parts etc Please check our website for more details . We hope to establish long time business relationship with esteemed company .and will try our best to support you and your business .
Q: Are you factory or manufacture?A: YES.We are group factories agent exporting company.We have more than 10 directly factories

Q: What's your delivery time?
30 days for machine and 20 days for tools and blades,and spare parts after confirmed order with payment

Q: What's kinds of shipping you choose after order?
Usually we choose FCL,Or LCL by sea.
We also can supply door to door shipping service by air or intermational express.

Q: Which kinds of Payment and MOQ?
We can accept TT,LC or Trade assurance.MOQ:1 set for machine order

Q: What's your packing?
Fumigation-free plywood case for small machine in LCL Shipment by sea,and blades and tools and spar parts.
If FCL shipping by sea we just professional fixed in container without cover.

Q: What's your Warranty Time?
THREE Year Warranty for machine,Lifelong maintenance.
During warranty time which the broken parts and spares caused by quality can be Offered free.

Q: Can you support overseas commissioning or traning service?
YES.We CAN.But the buyer need to afford this cost,tickets and foods,hotel etc.
