high speed power press opentype for press fitting Rongwin

In order to provide the best quality sheet metal power press , Rongwin never skimps on raw materials.

B站不支持收货地址

B站不支持库存规格

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

RONGWIN

PRUODUCT DISCRIPTION

This J23 Series Open-type Press with Fixed Worktable is very popular to our customers, we can supply customer the correct machine and also the mould for customer,we have the ability to design the tools for our customer.

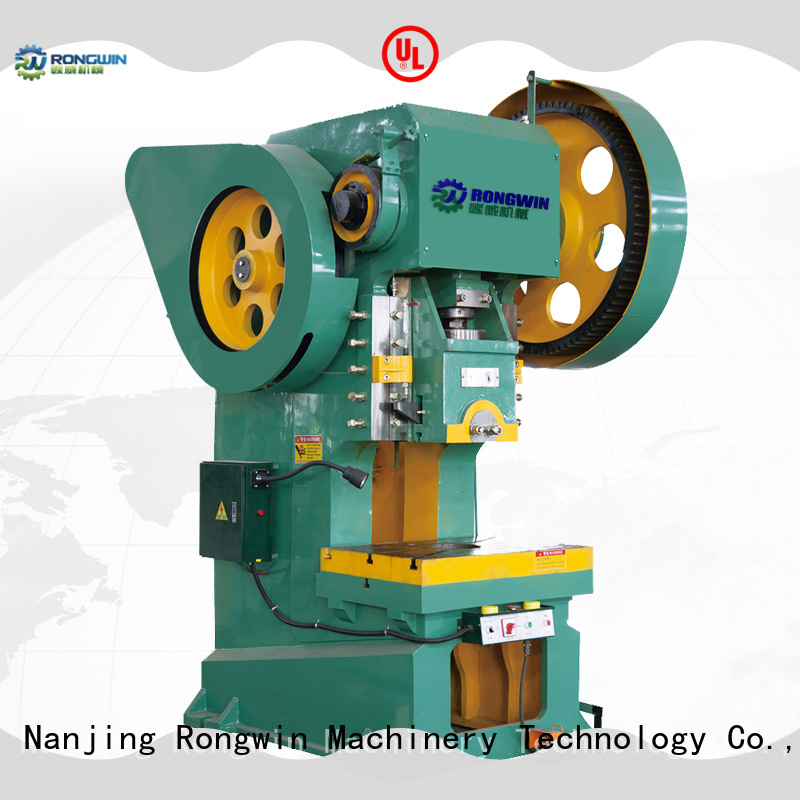

J23 Series Open-type Press with Fixed Worktable
Technical Data		Unit	J23-160T	J23-125	J23-100	J23-80	J23-63	J23-40	J23-25	J23-16	J23-10
Nominal pressure		KN	1600	1250	1000	800	630	400	250	160	100
Stroke of nominal force		mm	8	8	9	8	6	6	5	5	4
Stroke of Ram		mm	150	150	130	115	110	100	70	60	50
Ram stroke times		min-1	65	35	45	45	50	55	70	140	145
Maximum height for die loading		mm	390	500	380	380	330	300	200	170	150
Adjustment range for die loading height		mm	100	100	100	80	80	70	40	40	40
Distance between slipper centre and machine		mm	800	390	280	250	230	215	180	160	130
Bottom size of sliding block	Front - Back	mm	700	720	540	480	440	400	320	300	240
Bottom size of sliding block	Left - right	mm	1000	1100	840	750	700	650	525	480	360
Hole size for die handle	Diameter	mm	200	250	200	250	140	200	160	110	100
Hole size for die handle	Depth	mm	200	420	370	340	280	280	220	220	180
Size of worktable	Front - Back	mm	400	480	270	250	250	230	170	180	150
	Left - right	mm	370	540	360	320	320	260	230	200	170
	Diameter	mm	80	60	60	60	60	50	40	35	30
	Depth	mm	80	75	80	80	70	70	60	60	50
Pole Distance		mm	630	550	380	300	300	300	240	220	180
Thickness of spacer		mm	140	130	100	95	80	75	50	50	50
Angel of inclination		。	20	13	20	20	20	20	20	30	30
Motor Power	Power	KW	15	11	7.5	7.5	4	3	2.2	1.5	101
Motor Power	Round speed	r/min	970	1440	1440	1440	1440	1440	1440	940	960
Dimension	Frount & back	mm	1800	2504	1800	1790	1700	1500	1200	1130	610
	Left & right	mm	1800	1790	1360	1320	1280	1150	900	750	880
	Height	mm	2800	3715	2850	2550	2470	2370	2050	1890	1660

Detail Photos

Packing

Rongwin has specialized in metal working machinery and spare parts for 12 years
