RONGWIN
Model(WD67Y-series) | Nominal Pressure(mm) | Workbench Length(mm) | Poles distance(mm) | Throat depth(mm) | Slipper Stroke(mm) | Max Opening Height(mm) | Main motor(KW) | Dimension(L×W×H)(mm) |
30T/1600 | 300 | 1600 | 1250 | 170 | 90 | 195 | 3 | 1600×920×1660 |
30T/2050 | 300 | 2050 | 1450 | 170 | 90 | 195 | 3 | 2050×920×1660 |
40T/2200 | 400 | 2200 | 1850 | 245 | 100 | 330 | 5.5 | 2260×1200×1950 |
40T/2500 | 400 | 2500 | 2150 | 245 | 100 | 330 | 5.5 | 2560×1200×1950 |
50T/2500 | 500 | 2500 | 2150 | 245 | 100 | 330 | 5.5 | 2560×1200×1950 |
63T/2500 | 630 | 2500 | 2000 | 250 | 120 | 350 | 5.5 | 2560×1350×2120 |
80T/2500 | 800 | 2500 | 2000 | 250 | 120 | 350 | 7.5 | 2560×1350×2120 |
80T/3200 | 800 | 3200 | 2580 | 250 | 120 | 350 | 7.5 | 3260×1350×2120 |
80T/4000 | 800 | 4000 | 2980 | 250 | 120 | 350 | 7.5 | 4060×1350×2250 |
100T/2500 | 1000 | 2500 | 2000 | 300 | 130 | 400 | 7.5 | 2560×1465×2300 |
100T/3200 | 1000 | 3200 | 2580 | 300 | 130 | 400 | 7.5 | 3260×1465×2300 |
100T/4000 | 1000 | 4000 | 2980 | 300 | 130 | 400 | 7.5 | 4060×1465×2300 |
125T/2500 | 1250 | 2500 | 2000 | 300 | 130 | 400 | 11 | 2560×1465×2350 |
125T/3200 | 1250 | 3200 | 2580 | 300 | 130 | 400 | 11 | 3260×1465×2350 |
125T/4000 | 1250 | 4000 | 2980 | 300 | 130 | 400 | 11 | 4060×1465×2350 |
160T/3200 | 1600 | 3200 | 2580 | 340 | 150 | 450 | 11 | 3260×1620×2700 |
160T/4000 | 1600 | 4000 | 2980 | 340 | 150 | 450 | 11 | 4060×1620×2700 |
160T/5000 | 1600 | 5000 | 4000 | 340 | 150 | 450 | 11 | 5060×1620×2850 |
160T/6000 | 1600 | 6000 | 5000 | 340 | 150 | 450 | 11 | 6060×1620×3000 |
200T/3200 | 2000 | 3200 | 2580 | 340 | 150 | 450 | 15 | 3260×1620×2700 |
200T/4000 | 2000 | 4000 | 2980 | 340 | 150 | 450 | 15 | 4060×1620×2850 |
200T/5000 | 2000 | 5000 | 4000 | 340 | 150 | 450 | 15 | 5060×1620×2850 |
200T/6000 | 2000 | 6000 | 5000 | 340 | 150 | 450 | 15 | 6060×1620×3000 |
250T/3200 | 2500 | 3200 | 2580 | 400 | 200 | 500 | 18.5 | 3260×1700×2900 |
250T/4000 | 2500 | 4000 | 2980 | 400 | 200 | 500 | 18.5 | 4060×1700×2900 |
250T/5000 | 2500 | 5000 | 4000 | 400 | 200 | 500 | 18.5 | 5060×1700×3000 |
250T/6000 | 2500 | 6000 | 5000 | 400 | 200 | 500 | 18.5 | 6060×1800×3200 |
300T/3200 | 3000 | 3200 | 2580 | 400 | 200 | 520 | 22 | 3260×2000×3000 |
300T/4000 | 3000 | 4000 | 2980 | 400 | 200 | 520 | 22 | 4060×2000×3000 |
300T/5000 | 3000 | 5000 | 4000 | 400 | 200 | 520 | 22 | 5060×2000×3200 |
300T/6000 | 3000 | 6000 | 5000 | 400 | 200 | 520 | 22 | 6060×2100×3400 |
350T/3200 | 3500 | 3200 | 2580 | 400 | 250 | 570 | 22 | 3260×2000×3000 |
350T/4000 | 3000 | 4000 | 2980 | 400 | 250 | 570 | 22 | 4060×2000×3000 |
350T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 570 | 22 | 5060×2000×3200 |
350T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 570 | 22 | 6060×2100×3400 |
400T/3200 | 4000 | 3200 | 2580 | 400 | 250 | 580 | 22 | 3260×2000×3100 |
400T/4000 | 4000 | 4000 | 2980 | 400 | 250 | 580 | 22 | 406×2100×2900 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 580 | 22 | 5060×2000×3300 |
500T/4000 | 5000 | 4000 | 2980 | 500 | 300 | 640 | 37 | 4100×2300×3600 |
500T/5000 | 5000 | 5000 | 4000 | 500 | 300 | 640 | 37 | 5100×2450×4000 |
500T/6000 | 5000 | 6000 | 5000 | 500 | 300 | 640 | 37 | 6100×2450×4200 |
600T/4000 | 6000 | 4000 | 2980 | 500 | 300 | 660 | 45 | 4100×2300×3600 |
600T/5000 | 6000 | 5000 | 4000 | 500 | 300 | 660 | 45 | 5100×2450×4000 |
600T/6000 | 6000 | 6000 | 5000 | 500 | 300 | 660 | 45 | 6100×2450×4200 |

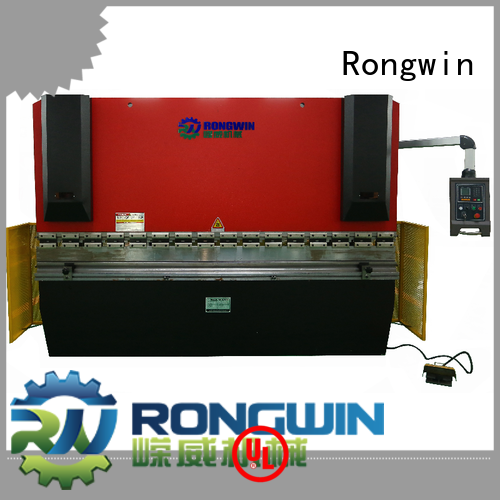

WD67Y(K) Series Standard torsion bar Press Brake Features:
Machine function: This press brake is for bending metal plate to required shape and angle,simple program on X and Y axis
1): Aging treatment to optimize the entire steel structure
4): China ESTUN brand E21 NC controller or Germany ELGO , programming and data saving function, stable performance
NC controller) | China ESETUN E21 NC,Germany ELGO P40 |
Electric parts | Schneider,French brand |
Valve | ATOS ,Italy brand ) |
Pump (Gear Pump) | China famous brand |
Seal components | NOK, Japan brand |
Clip sets joints | China famous brand (Size can be metric system or English system) |
Ball screw and linear guide | Taiwan HIWIN brand |
Synchonous belt | China famous brand |
Clip sets joints | EMB, Germany brand |
Crowning device | Designed and produced by ourselves |
Safety ray protection (Protection curtain) | China brand , Germany FIESSLER brand |
Payment | T/T ,L/C |
Package | Plastic film standard, wooden box will be charge some cost |
Remark : We will do anti-rust work for the machine before delivery ,and install some pad on the machine base to make unloading the machine from the container easily) |
