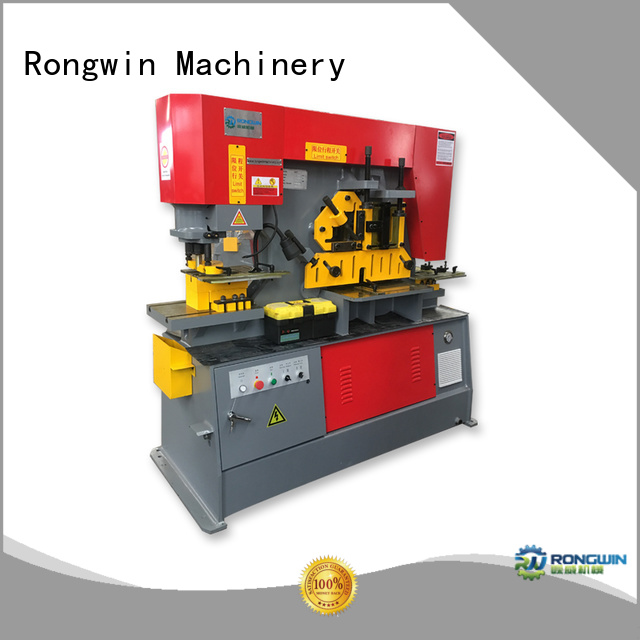

easy to use ironworker punch for manufacturer for bending

这里可以自定义设置

Rongwin metal pro ironworker is manufactured from a well-equipped workshop and manufactured by using the state-of-the-art technology. It can withstand high torque and will not deform easily

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

Company Advantages
1. Rongwin metal pro ironworker is manufactured from a well-equipped workshop and manufactured by using the state-of-the-art technology. It can withstand high torque and will not deform easily
2. This product offers great possibilities for users and has a wide range of applications in the global market. The product is convenient for maintenance and repair
3. This product is cost-effective and the quality is exceptional. Its speed is controllable with input configuration

Company Features
1. Our machines have been performed automatically to fabricate metal pro ironworker .
2. We aim to provide you the perfect one-stop services from inquiry to after-sales. Inquire!

RONGWIN

PRUODUCT DISCRIPTION

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Punching Pressure(T)	60	90	120	160	200	250
Max Shearing Thickness(mm)	16	20	25	30	40	50
Plate Strength(N/mm2)	≤450	≤450	≤450	≤450	≤450	≤450
Shearing Angle	7°	8°	8°	8°	8°	8°
*Flat Bar(HW)(mm)**	16×250 8×400	20×330 10×480	25×330 16×600	30×355 20×600	40×335 30×600	50×300 30×750
Ram Stroke(mm)	80	80	80	80	100	100
Number of Stroke(times/min)	11-20	12-20	8-18	6-16	6-16	6-12
Throat Depth(mm)	300	355	400	600	530	600
Punching Thickness(mm)	16	20	25	28	35	40
Max Punching Diameter(mm)	25	30	35	38	40	45
Main Motor Power (kw)	5.5	7.5	11	15	18.5	18.5
Overall DimensionL×W×H(mm)	1740×810×1830	1950×900×1950	2355×960×2090	2800×1050×2450	2900×1100×2500	3000×1440×2450
Weight(kg)	1900	2600	4800	6800	9200	12800
