Difference Between Guillotine and Swing Beam Shearing Machine

QC11Y/K series is guillotine type shearing machine .

QC12Y/K series is swing beam type shearing machine.

One:

Performance difference:

1)Guillotine type shearint machine  can adjust cutting angle, but swing beam type can not adjust the cutting angle.

 Adjusting cutting angle is an advantage of guillotine shearing machine, because it will be useful when your cutting range is from very thin to very thick...

Guillotine shearing machine cutting angle adjusting is as below:

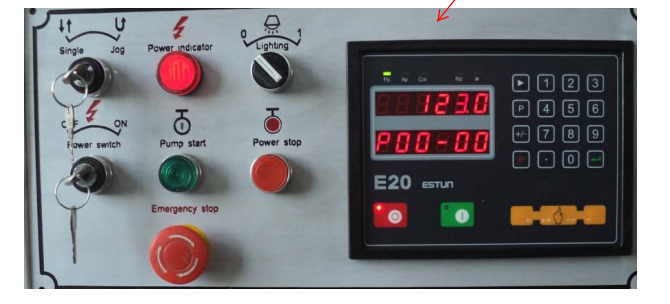

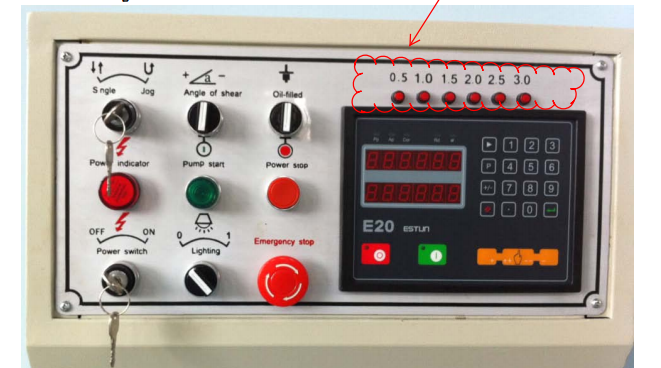

            guillotine shearing machine controller:     cutting angle indicator

                Swing beam shearing machine controller:

For swing beam shearing machine, nocutting angle indicator here.

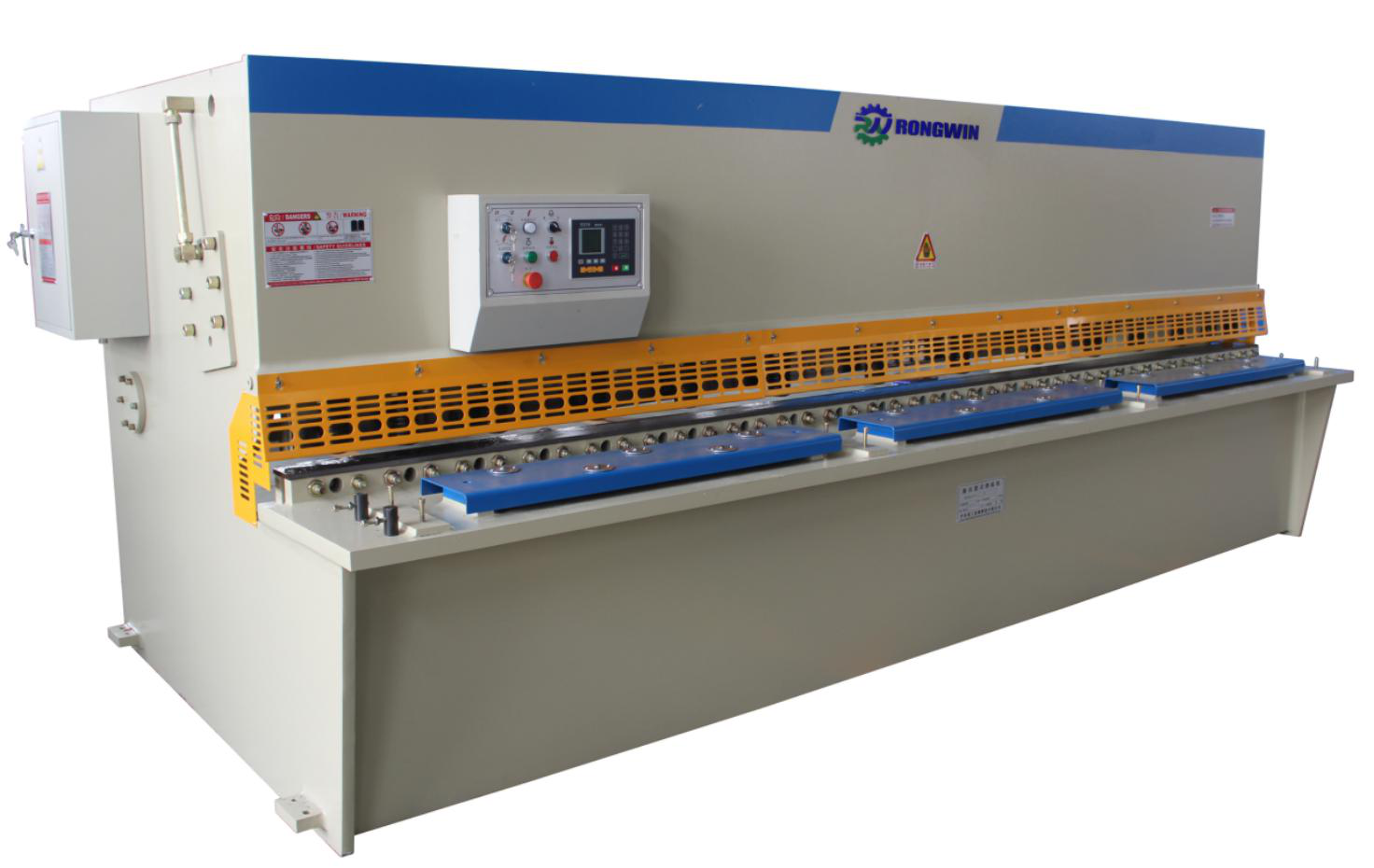

QC11Y-20x3200

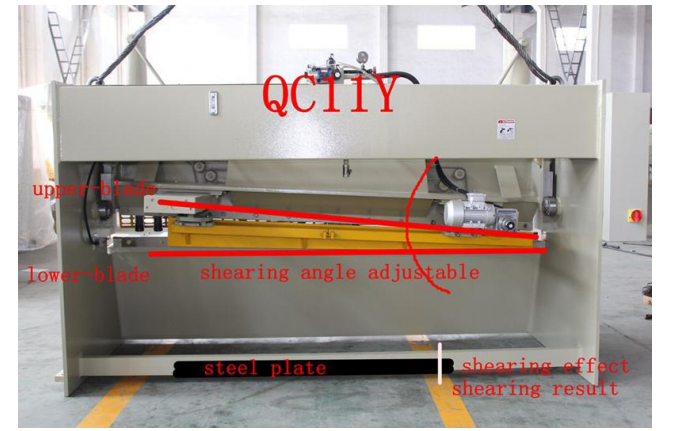

guillotine shearing machine :the cutting angle range is 0.5-3.5°, can adjust the cutting angle according to your metal thickness.

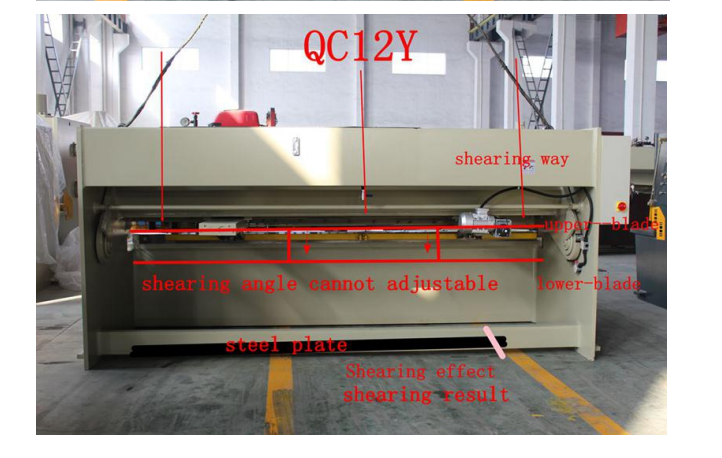

swing beam shearing machine:can not adjust the cutting angle, it only has one cutting angle 3°;

2`Shear Way Difference

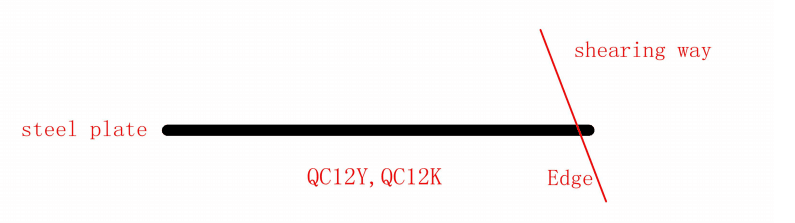

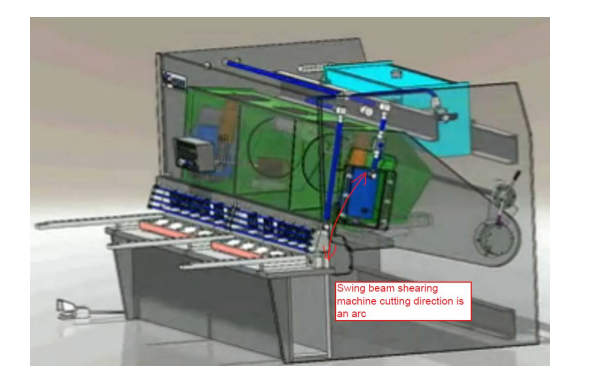

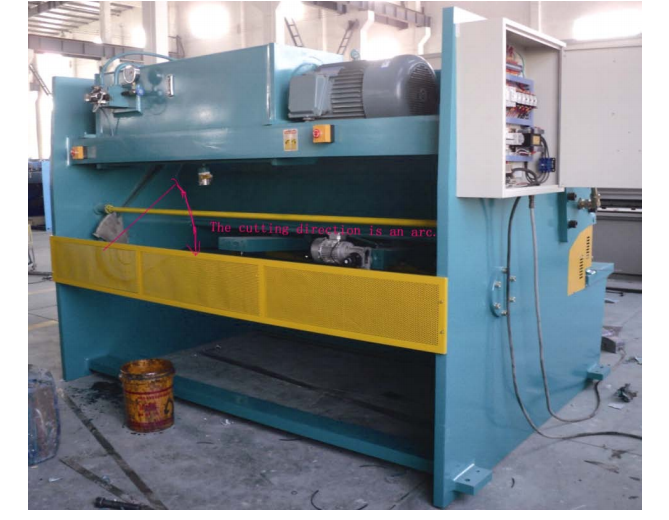

a) Shear Way of Swing Beam shearing machine :  Arced direction Cutting

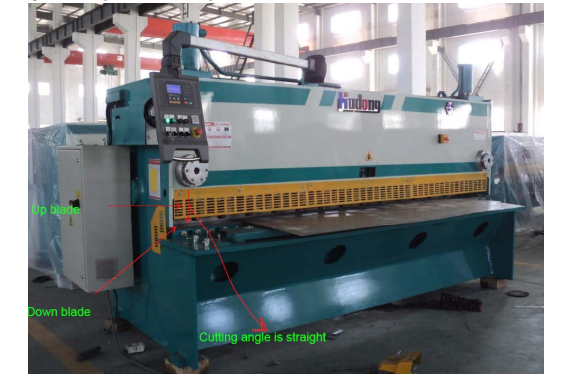

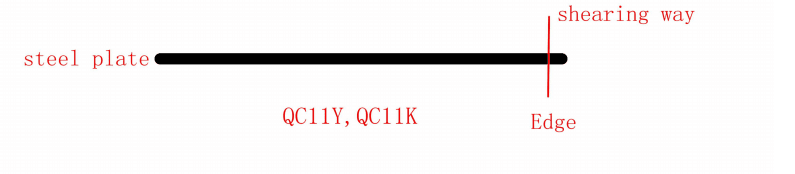

b) Shearing Way of Guillotine shearing machine：   Straight line cutting

So the work piece from the guillotine shearing machine cutting result is more better .

The edge of the work piece from guillotine shearing machine is more smooth.

Two:

Operation difference:

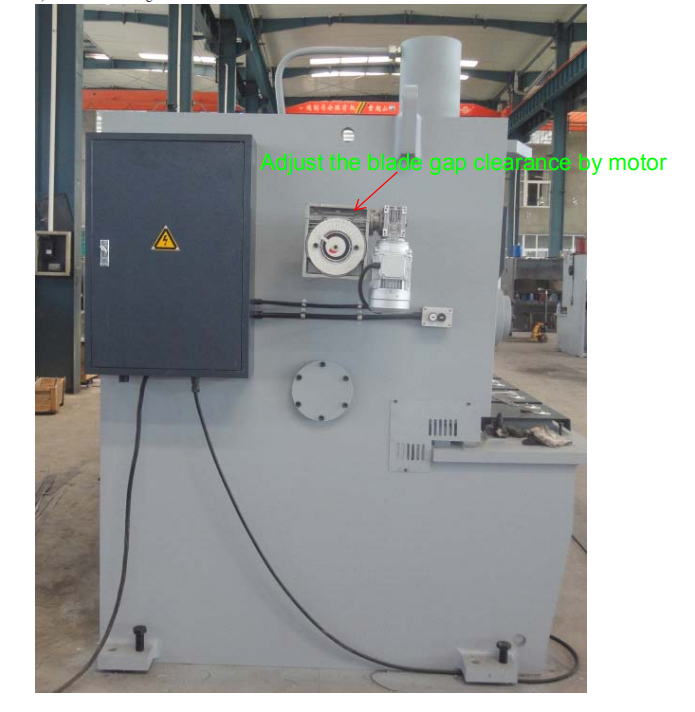

A) Blade Gap adjusting

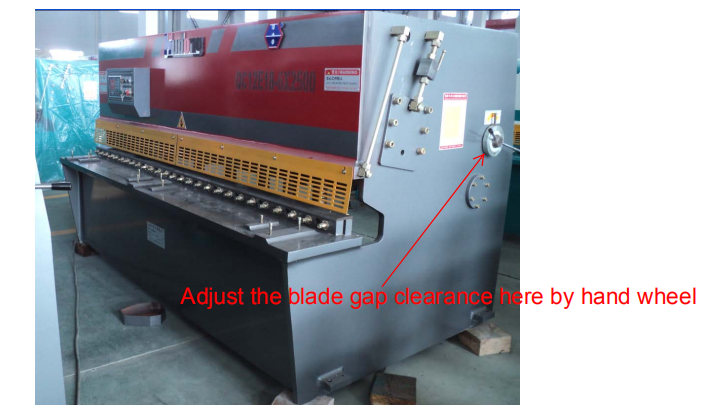

a) Guillotine Shearing Machine

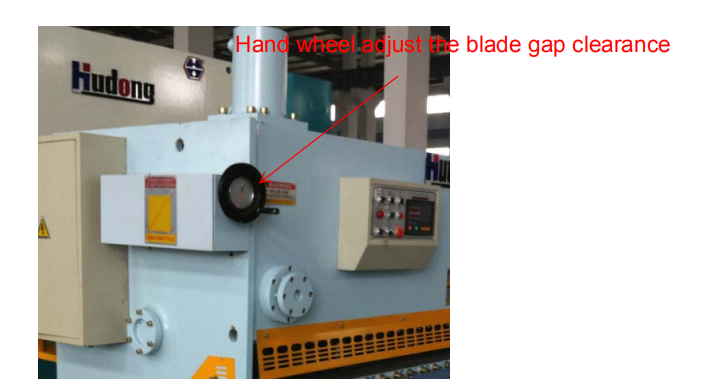

 b) :Swing Beam Shearing Machine

In addition，there are mainly three kinds of difference between.

1)Guillotine Type shearing machine cutting result is more better than swing beam type

2)Guillotine shearing machine shearing angle is adjustable , swing beam type shearing machine shearing angle is fixed .

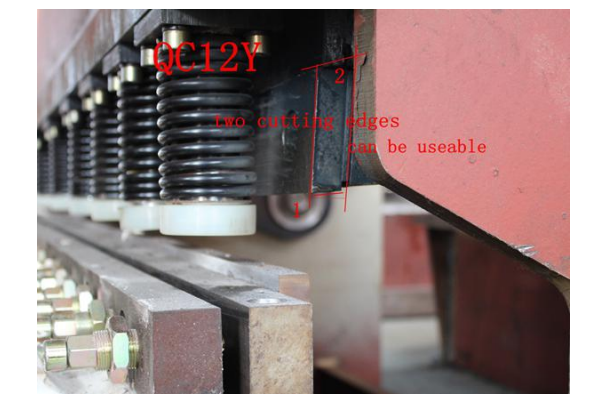

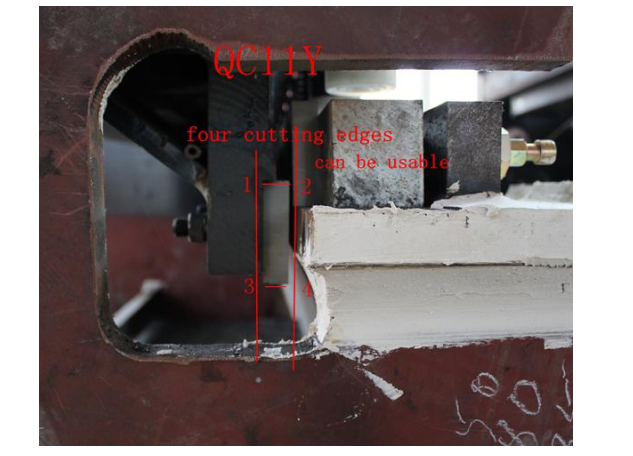

3) The blade for guillotine type can be 4 sides useful . But swing beam type is 2 sides useful.
