CNC V-groove Grooving Machine For Sheet Metal

Product Description

Our vertical style VC 1500*4000 CNC hydraulic V grooving machine cutting machine is widely used in the sheet metal V-groove,U-groove and other irregular groove processing,which is including stainless steel,aluminum,aluminum plate,copper,iron,plastic,wood,acrylic panels and other special plates.Particularly,it is can applicable to the V-groove processing of sheet metal before bending.

CNC system and other configuration
Series No.	Items	Make brand
1	Ball screw	Taiwan HIWIN brand
2	Linear guide	Taiwan HIWIN brand
3	Angular Contact Ball Bearings	Japan NSK
4	Servo motor	Taiwan HUST brand
5	Electric components	Schneider brand
6	Servo driver	Taiwan HUST brand
7	CNC operating system	Taiwan HUST brand

Products feature

1,Our grooving machine use structure design,Overall rigidity,small deformation.2,This grooving machine beam is fixed,has feeding system,worktable levelness is within ±0.03mm.
3Blade rack move right and left by synchronous belt,V-cutting process is very stable,and the cutting surface is smooth.

Machine specification

Series No.	Items	Specification
1	Model	Vertical style 1500×4000
2	Metal thickness the machine can work	0.4-6mm
3	Metal Length *Width	1500x4000mm
4	V cutting speed	5M-70M/min
5	Back feeding device moving	0.5-20M/min
6	X axis minimum setting unit	0.01mm
7	X axis Positioning accuracy	±0.02mm
8	Y axis minimum setting unit	0.01mm
9	Y axis Positioning accuracy	±0.02mm
10	Z axis minimum setting unit	0.01mm
11	Z axis Positioning accuracy	±0.02mm
12	X axis motor power	1.5KW
13	Y axis motor power	3KW
14	Z axis motor power	0.4KW
15	Workbench flatness	±0.01mm
16	Material Feeding style	Backside feeding
17	Worktable style	Bolted style
18	V cutting blades quantity	5 pieces of white steel
19	Max depth for one time V cutting	1.2mm
20	Max depth for total V cutting	2.5mm

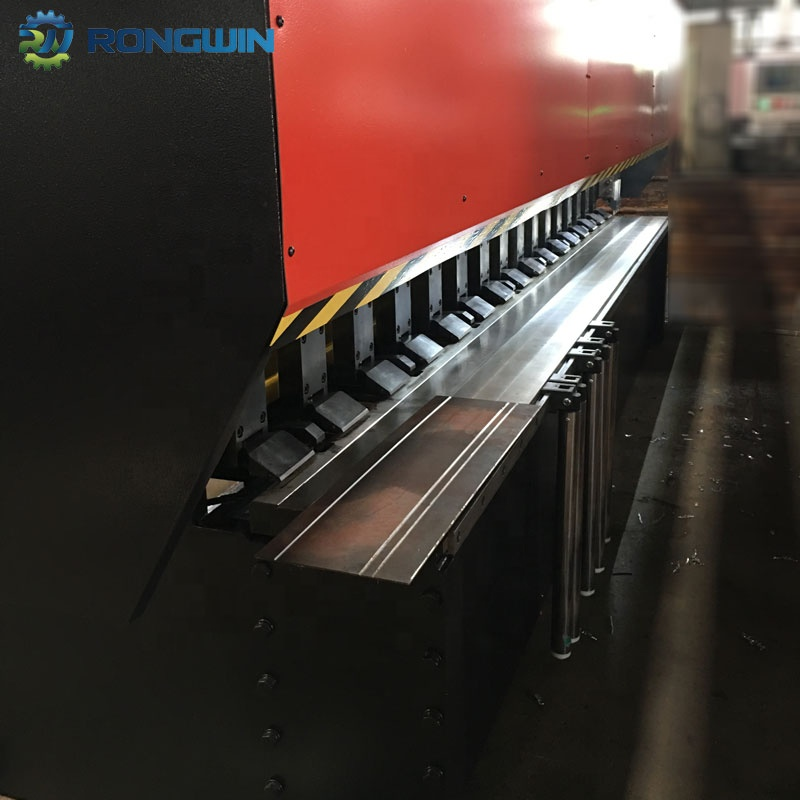

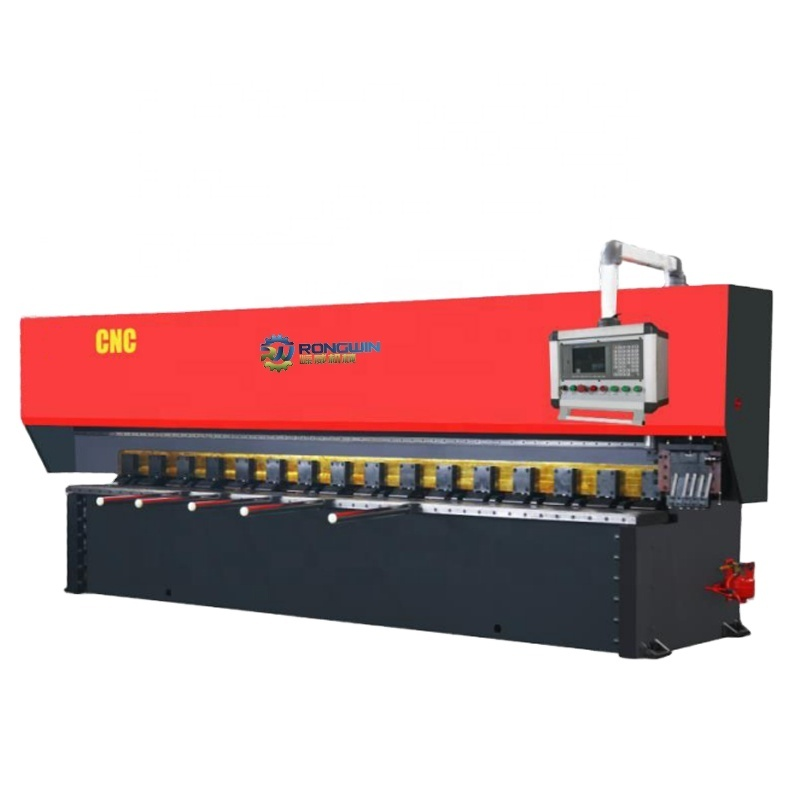

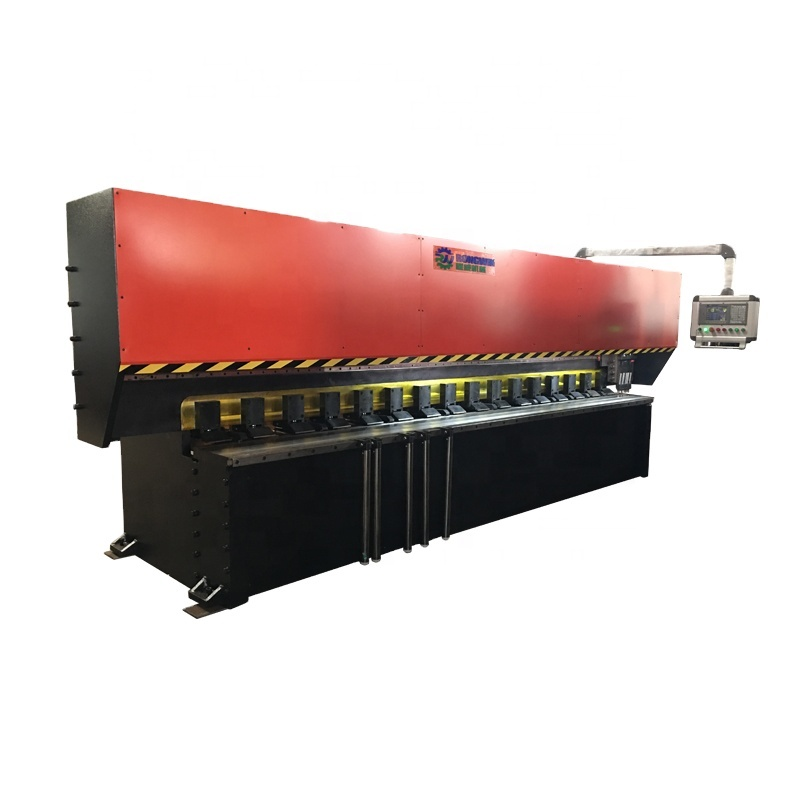

Detailed Images

Hydrualic style V grooving machine can do V grooving on the high thickness which is more than 5mm while pneumatic style V grooving machine cannot do it.

Packing&Shipping

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: RONGWIN

Condition:: New

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Hot Product 2019

Warranty of core components:: 1 Year

Core Components:: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Voltage:: 380V

Dimension(L*W*H):: 5500x3000x2000MM

Certification:: Grooving Machine Cutting machine

Year:: 2019

Weight (KG):: 10000

Power (kW):: 5

Warranty:: 3 years

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Online support, Free spare parts, Video technical support

Key Selling Points:: Grooving Machine Cutting machine

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Applicable Industries:: Energy & Mining, Home Use, Printing Shops, Hotels, Retail, Farms, Construction works , Building Material Shops, Advertising Company, Machinery Repair Shops, Manufacturing Plant, Grooving Machine Cutting machine

Local Service Location:: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Japan, Malaysia, Kenya, Argentina, Chile, UAE, Romania, South Africa, Ukraine, Uzbekistan

Showroom Location:: Egypt, United Kingdom, United States, Italy, Germany, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Kenya, Chile, UAE, Ukraine, Uzbekistan, Japan, Malaysia
