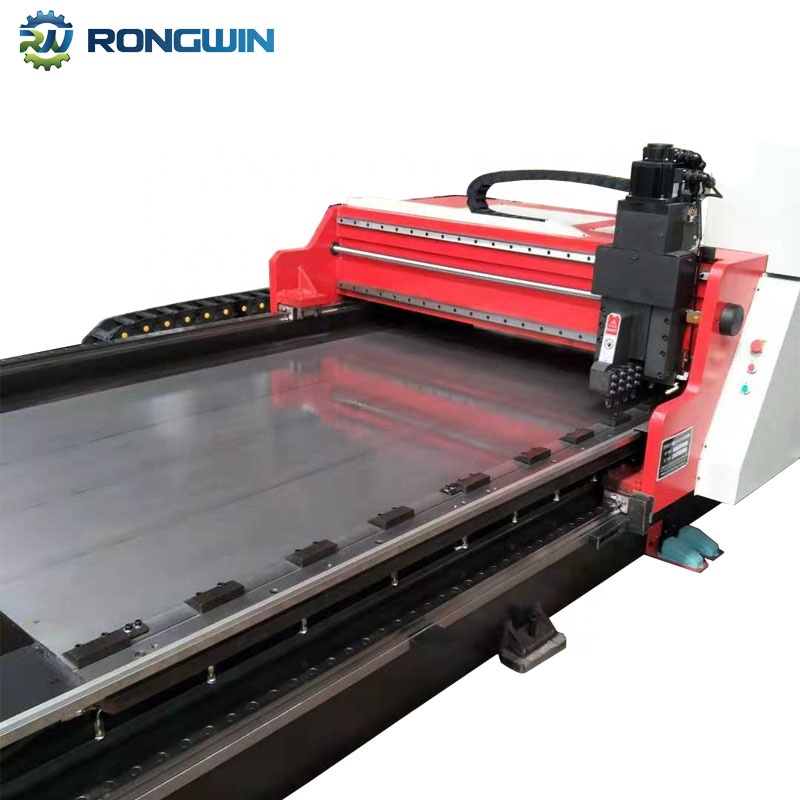

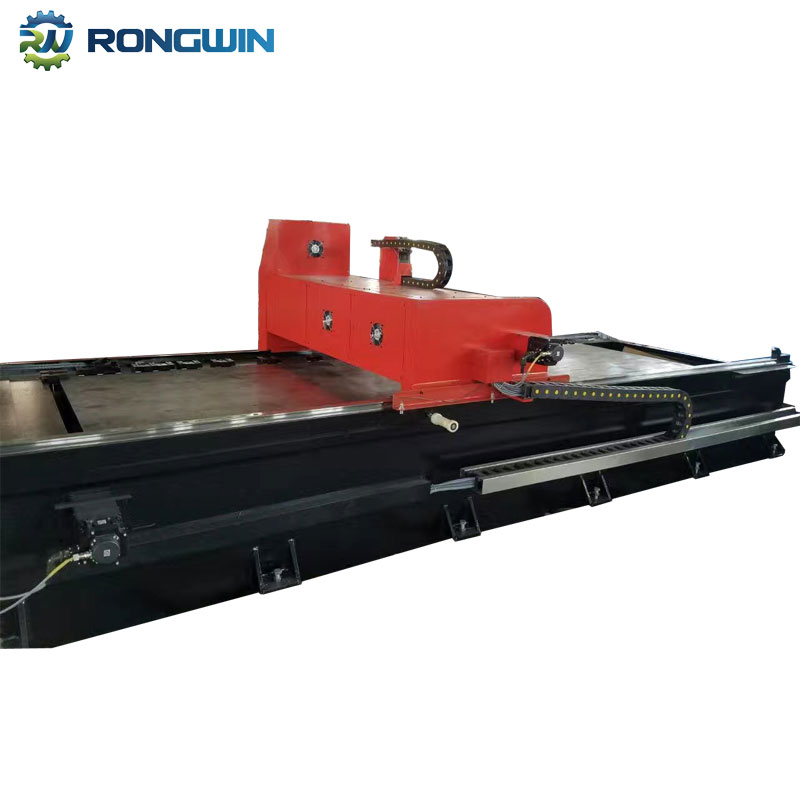

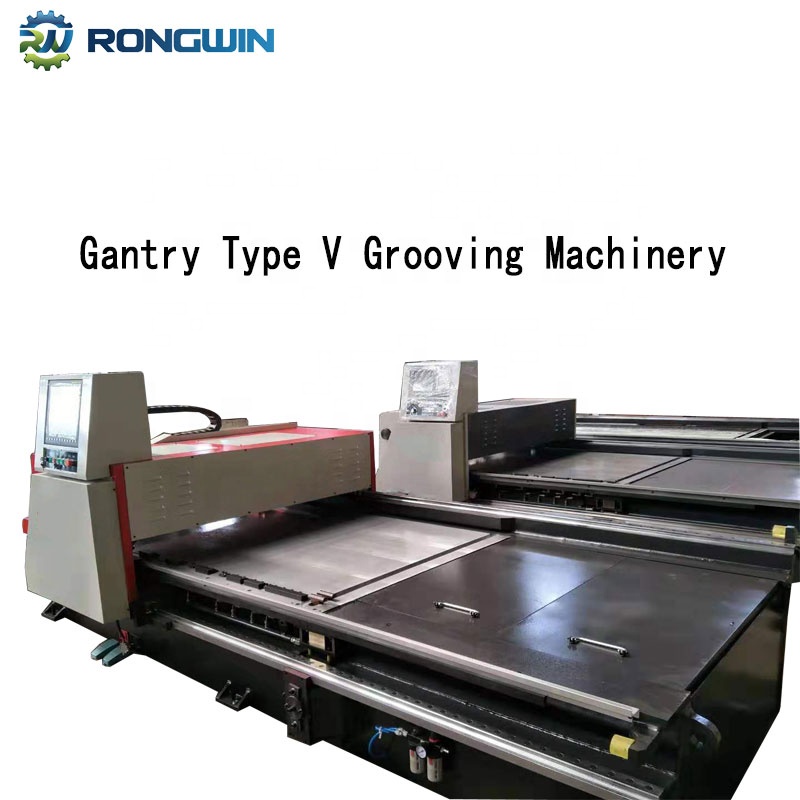

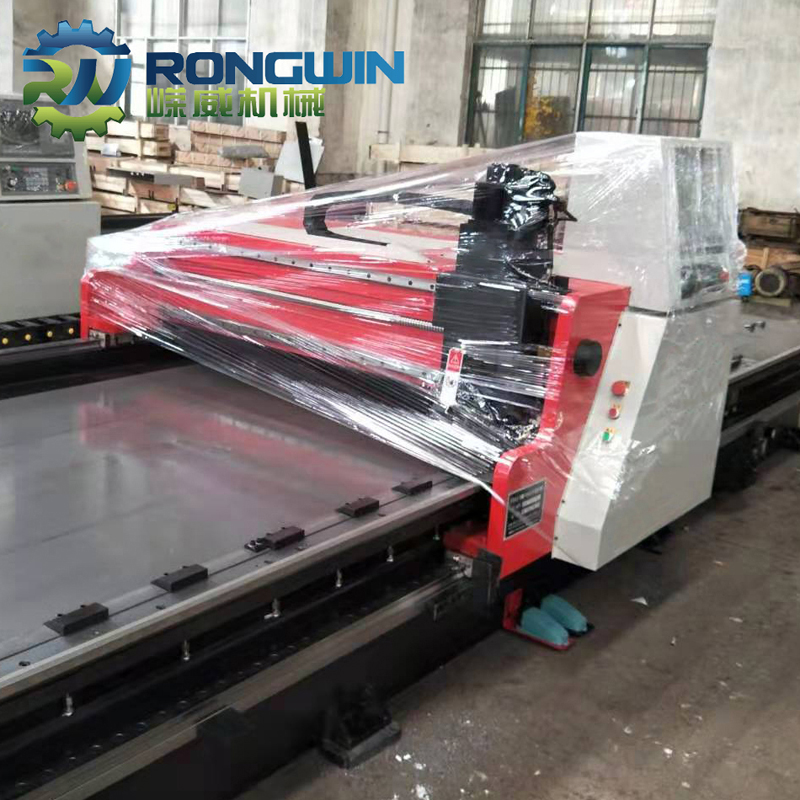

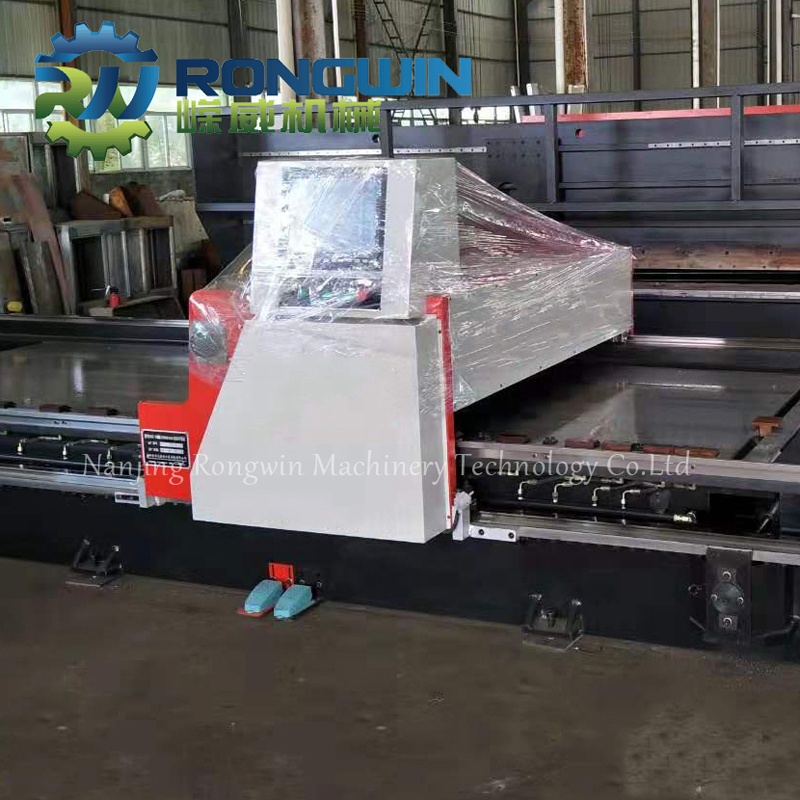

CNC Metal Sheet V Groove Cutting Machine 1250/4000-Gantry Type

这里可以自定义设置
CNC Metal Sheet V Groove Cutting Machine 1250/4000-Gantry Type
V grooving machine gantry type
B站不支持收货地址
B站不支持库存规格
Model
Gantry type
Payment
L/C, T/T, MoneyGram
Place of Origin
China
Brand
RongWIN
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

CNC Metal Sheet V Grooving Machine 1250/4000- Gantry Type



No.

Items

Parameter

1

Maxinnum width of slotted stieet metal

1250mm

2

Maximum tengtti of slotted sheet metal

4000mm

3

Thickness of slotted she»t metal

0.6-4.0(Plate flatness<3 0mm)

4

Back feeding device max moving range

1250mm

5

Back feeding device moving resolution(

0.001mm

6

Bade feeding device max moving speed

0.8-2nVMIn

7

Blade rack max move range(up and down)

10mm

a

Blade rack move resolutlon(up and down)

0.001mm

g

Slide rack max moving rangefleft and right)

4000mm

10

SlKle rack max moving speed:

30m/mln

11

Straightness error on 4000mm length range i

±0.05mm

12

Distance between V-^roove and edge

15mm

13

Positioning precision

i0.05mm

14

Blad« rack max stroke

100mm

15

Wofktabie height

660mm

16

Machine dimension

6300 x 2150 x 1G00(mm>

17

Machine weight

7.000KG


CNC system Taiwan HUST-H6CSL-M

Servo motor Japan Yaskawa brand 0.75KW

Inverter Japan Mitsubishi 7.5KW

Main axes motor Germany SEW 5.5KW

Proximity Switch Imported brand

Ball Screw and Linear Guide Taiwan HIWIN
