PRUODUCT DISCRIPTION

Model (WF67K-series)	Nominal Pressure(mm)	Workbench Length (mm)	Poles distance(mm)	Throat depth(mm)	Slipper Stroke(mm)	Max Opening Height (mm)	Main motor (KW)	Dimension(L×W×H)(mm)
30T/1600	300	1600	1430	200	110	385	3	2100×1100×1900
40T/2500	400	2500	2260	250	120	405	5.5	3000×1300×2100
63T/2500	630	2500	2260	250	130	415	5.5	3000×1350×2200
80T/2500	800	2500	2250	250	130	415	7.5	3000×1350×2250
100T/3200	1000	3200	2800	320	150	460	7.5	3700×1400×2400
100T/4000	1000	4000	3400	320	150	460	7.5	4500×1400×2400
160T/3200	1600	3200	2700	400	200	500	11	3700×1650×2700
160T/4000	1600	4000	3400	400	200	500	11	4060×1650×2700
200T/3200	2000	3200	2700	400	200	500	18.5	3700×1700×2750
200T/4000	2000	4000	3400	400	200	500	18.5	4500×1700×2750
250T/3200	2500	3200	2700	400	200	500	18.5	3700×1750×2750
320T/3200	3200	3200	2700	400	200	500	22	3700×1800×2750
320T/4000	3200	4000	3500	400	200	500	22	4500×1800×2750
400T/4000	4000	4000	3500	400	200	500	30	4500×2100×2900
400T/5000	4000	5000	4000	400	200	500	30	5500×2100×3200
500T/4000	5000	4000	3500	500	320	590	37	4500×2600×4400
500T/5000	5000	5000	4000	500	320	590	37	5500×2600×4600
500T/6000	5000	6000	5000	500	320	590	37	6500×2600×4800
600T/5000	6000	5000	4000	500	320	640	45	5500×2650×4800
600T/6000	6000	6000	5000	500	320	640	45	6500×2650×5200
600T/7000	6000	7000	6000	500	320	640	45	7500×2650×5500
800T/6000	8000	6000	5000	600	420	820	55	6500×2650×5500
800T/7000	8000	7000	6000	600	420	820	55	7500×2650×5700
800T/8000	8000	8000	7000	600	420	820	55	8500×2650×5900
1000T/6000	10000	6000	5000	600	420	1000	55	6500×3050×5700

Features:

1 Aging treatment to optimize the entire steel structure

2 Not less than 3 axis (Y1,Y2,X)& crowning device be programmed and controlled by controller

3 Hydraulic system adopts Germany Rexroth closed-loop control mode, Grating ruler can check the balance and evenness of Y1 &y2 AXIS ; Grating ruler detect the position of two cylinder and then reflect the data to CNC system , CNC system control the Proportional valve to make the two cylinder be balance

4 Ballscrew and linear guide , Synchronous belt, grating ruler, installed, Higher precision than torsion bar CNC type

5 Standard controller:S525 ,S530,S540 ,S630 (ITALY ESA );DA52S DA53T,DA56,DA65W (HOLLAND DELEM ) ,stable performance ,good function,global after-sale service

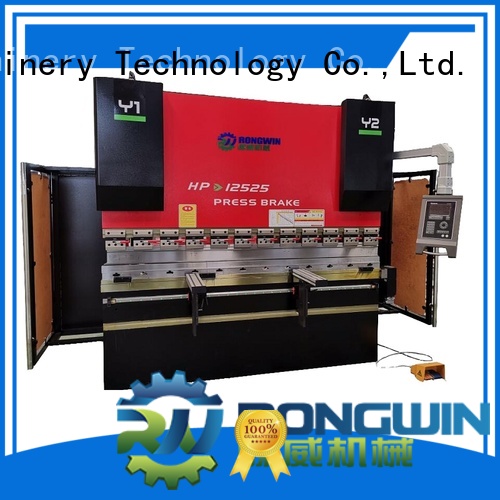

Electro-hydraulic CNC press brake standard configuration

CNC controller	S525 ,S530,S540 ，S630 (ITALY ESA);DA52 ,DA56,DA65W (HOLLAND DELEM )
ELectric parts	Schneider ,French brand ; Omron ,Japan brand
Valve	Rexroth ,Germany brand
Pump	Rexroth,Germany brand
Grating ruler	Italy GIVI ,Germany HEIDENHAIN
Seal components	NOK, Japan brand
Clip sets joints	China famous brand (Size can be metric system or English system)
Ballscrew and linear guide	Taiwan HIWIN
Crowning device	Designed and produced by ourselves
Synchronous belt	China famous brand

Optional configuration

Crowning device	Designed and produced by ourselves
Clip sets joints	EMB, Germany brand
Safety ray protection (Protection curtain)	China brand , Germany FIESSLER brand
Payment	T/T ,L/C
Package	Plastic film standard, wooden box will be charge some cost
Remark:We will do anti-rust work for the machine before delivery ,and install some pad on the machine base to make unloading the machine from the container easily ;

Here is the main parts photo of the Electro-hydraulic CNC press brake

Rongwin has specialized in metal working machinery and spare parts for 12 years
