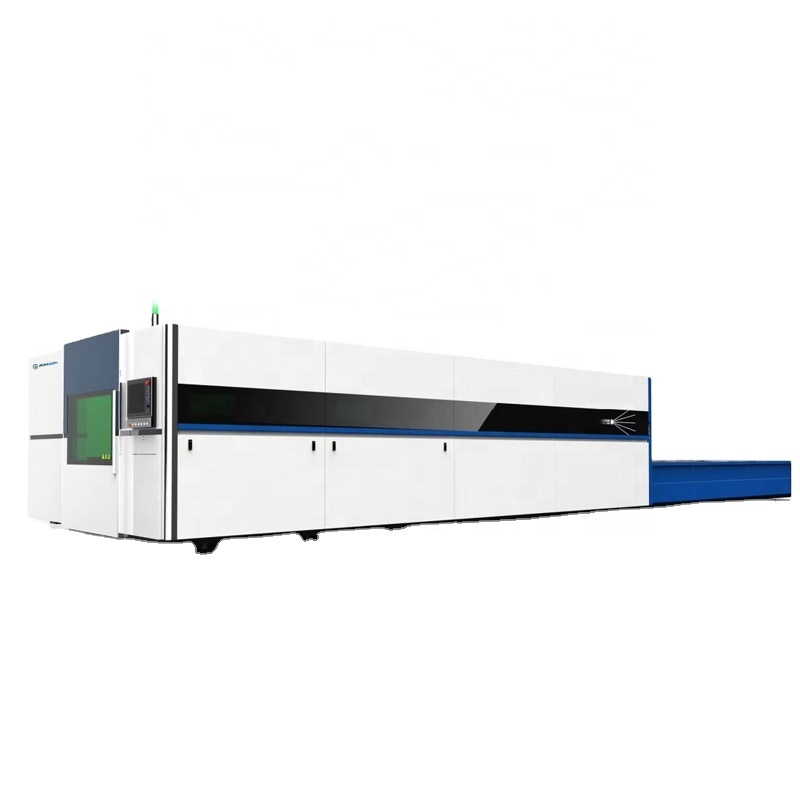

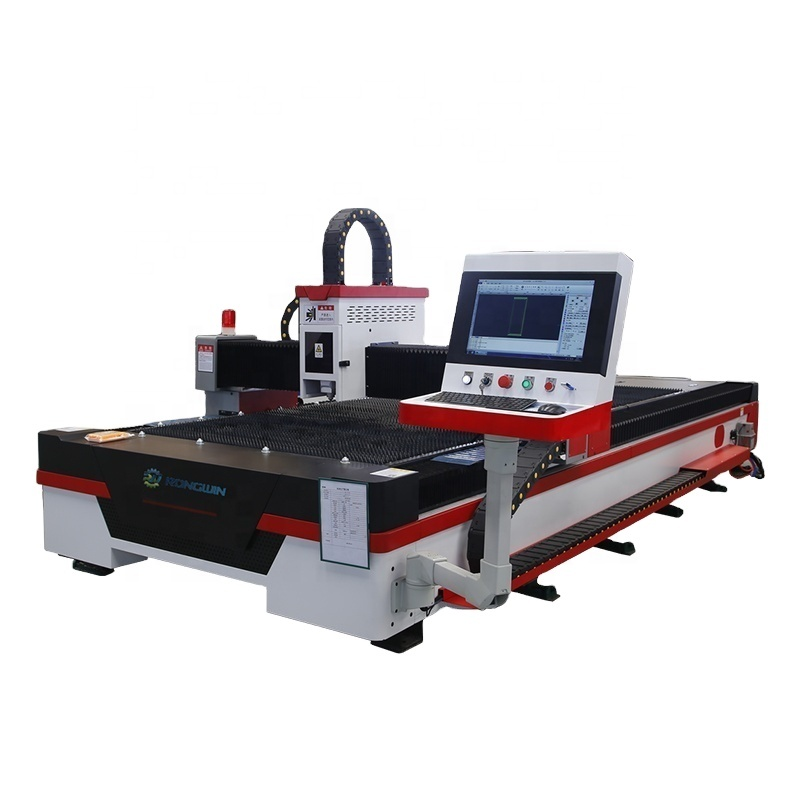

Affordable Closed Table Laser Cutting Machine China

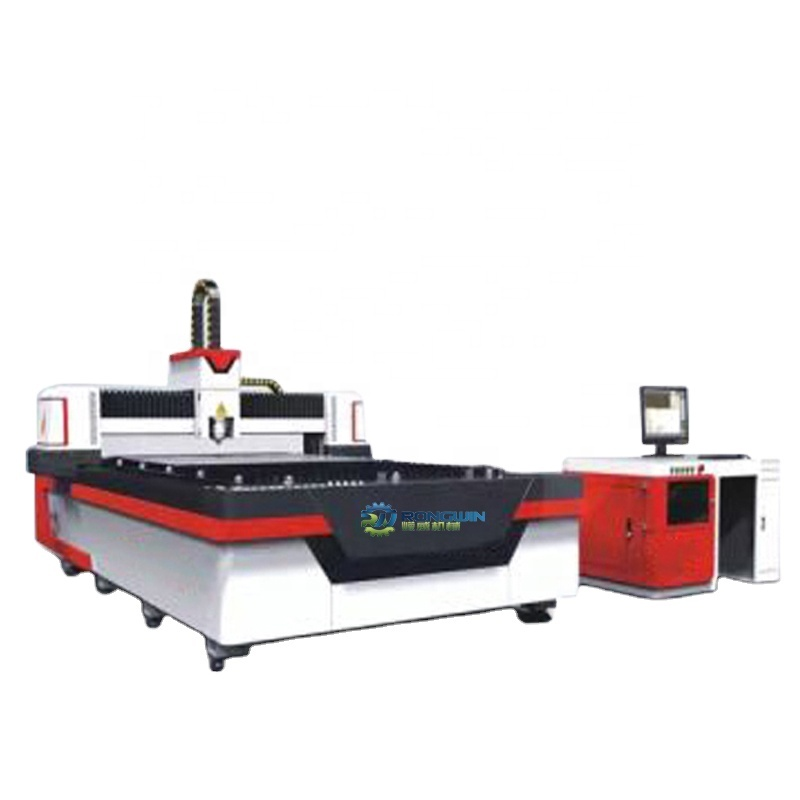

Product Description

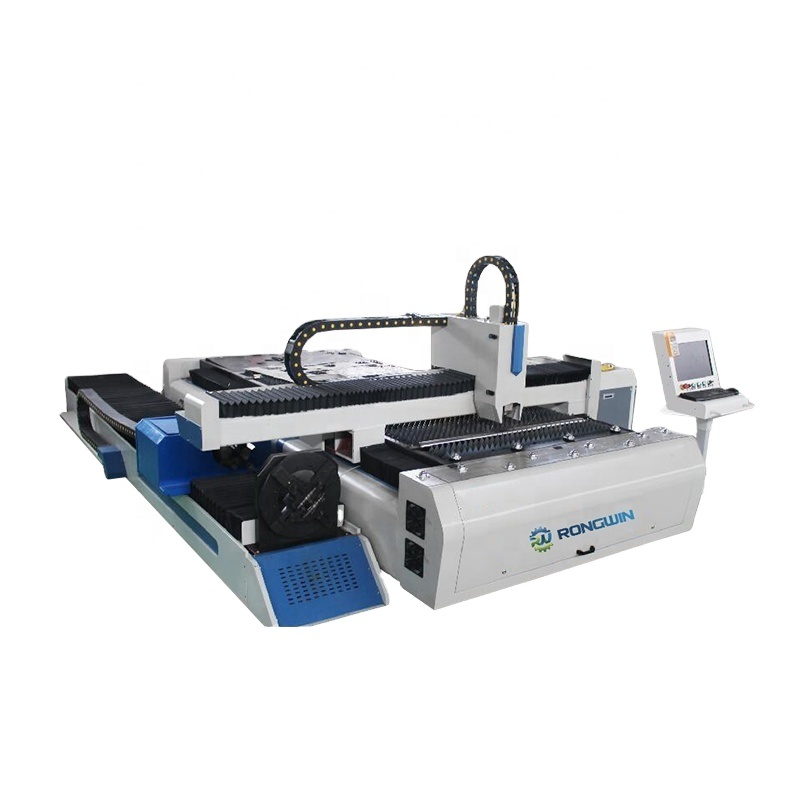

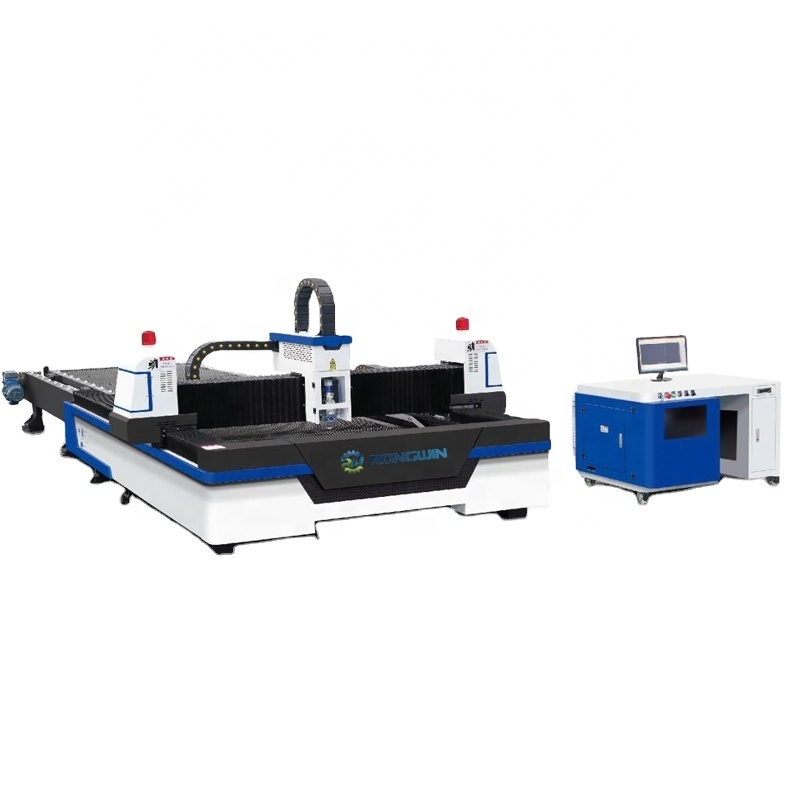

Factory Price 2000W IPG Tube Plate Fiber Laser Cutting Machine for Aluminum Stainless Steel is equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalized mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.
Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.

Factory Price 2000W IPG Tube Plate Fiber Laser Cutting Machine for Aluminum Stainless Steel features

A equipment can cut plates and tubes,cost-effective.
Adopting cyptube software,can import three-dimensional software,graphics can be directly displayed on the computer,convenient and intuitive.
The unique design of fixed grasping function can realize the rapid cutting of different pipes.
The unique material support design,ensure the smooth operation of cutting pipe.

Fuselage structure

★The main frame adopts the gantry structure and the whole bed is welded,to ensure the long term stability and no deformation of the machine. ★Machine tool bed is processed by gantry milling machine and is formed at one time.
★The whole machine is tempered at high temperature,the internal stress is eliminated with the furnace cooling.
★Using double rack rails,double servo drive structure.
★Improving the stability and rigidity of the Y axle beam
★The high precision and high dynamic performance of the Y axle beam movement is ensured.
★The Y axle beam runs at high speed and smoothly, greatly reducing the consumption of gas.

Gear, rack and guide line

      Between the guide and rack using       precision collimator to calibrate the
      accuracy of ±0.01mm

High precision laser cutting head

★The internal structure of the laser head is completely sealed, and the dustproof grade reaches 6 grade to 7 grade, which can avoid the dust pollution of the optical part; ★Magnetic protection against collision, flexible and convenient to reset and alarm function;
★The cutting height is set by panel operation or programmable CNC control;
★The height control can be realized through the Z axis servo motor and the drive system;
★Modular design, high precision, easy maintenance.

Water Chiller

★ Using domestic first-class brand, professional laser chiller, good stability, high precision. ★With two way temperature control, the laser and the cutting head can be controlled at different temperatures, the stability of the laser and the cutting head can be guaranteed more effectively.
★This function includes: pressure alarm, high and low temperature alarm, abnormal voltage alarm, and fault alarm etc.

The beam sliding table adopts integral cast aluminum parts, which can reduce the weight of the beam and ensure good stability, So that can meet the high-speed operation of the machine .X,Y, Z three-axis drive with full servo motor, high precision, fast response.

Control cabinet

 ★ A closed control design is adopted: a good closed effect ensures the control of the dust effect of the electrical apparatus. Provide security for long time work ★ Configuring constant temperature air conditioning: ensure the internal thermostat of the control cabinet, prevent temperature change and cause the laser and electrical components to be dampened
★ Waterproof design: the control cabinet has been designed for 2 layers. The bottom without any electrical appliances, can deal with sudden flood events.

SMC Proportional Valve

★ It can automatically control 3 types of gas (O2,N2,compressor air)★ By this auto pressure control of cutting gas, it can easily and precisely control the cutting gas for different cutting shapes, greatly improve the cutting precision of small hole, short line… such small parts.

Air compression system (optional)

A variety of laser power supply options

Cut sample

Model	RWLG-3015G	RWLG-4015G	RWLG-6015G	RWLG-6020G
Plate processing size(mm)	1520×3030	1520×4040	1520×6050	2030×6050
Pipe length(mm)	3000	4000	6000	6000
Machine installation dimensions(mm)	4600×3350×1750	5600×3350×1750	7600×3350×1750	7600×3850×1750

Packing&Shipping

Model	RWL-3015 Closed type
Working Table	1500*3000mm
Fiber Laser	Optional 1)3300W China Raycus laser source 2)3000W IPG laser source
Cutting Head	Auto Focus Raytool Cutting head
Lathe Bed	Made by our factory
X/Y axis Reducer	Taiwan APEX P2 flanged joint
X/Y axis Rack and Pinion	1 set YYC FROM Taiwan grinding din6 precision
Automatic Lubrication System	RW-Laser
Proportional Valve	SMC from Japan,or PARKER from USA
Focus Lens	ⅡⅥUSA
Drive Mode	Dual Drive
Electrical Control System	Siemens ,Schneider ,etc
Ball Screw and Guide Rail	1 set Ball Screw H grade precision HIWIN from TAIWAN for Z axis, Each 2 sets H grade precision Linear Guide HIWIN from TAIWAN for both X and Y axis
Servo Motor and Drive	4 set of YASKAWA from JAPAN
Cutting thickness (in the required cutting condition)	Upto 20mm thickness M.S---3000W/3300W Cutting speed 0.6-065m/min for 20mm thickness
Water Chiller	Hanli,China famous brand
CNC and software	Cypcut from SHANGHAI
Format Supported	AI,BMP,PLT,DXF,DST,etc
Power requirement	3 Phase ,50HZ, Customized Voltage
Gross Weight	Siemens ,Schneider ,etc
Packing Size	(7000x3350x1750mm)

Spare Parts for free together with the machine

NO.	Name	QTY.
1	Protection mirror	4 PCS
2	Laser head nozzle	10 PCS
NO.	Name	QTY.

Consumable Parts of 1 year Running

PRODUCT DESCRIPTION	QTY	Remark
Protection mirror (300 hours life)	10 PCS
Laser head nozzle (800 hours life)	10 PCS
Ceramic O-ring (3000 hours life)	3PCS

Cutting Samples

Remark: Real-time power consumption parameter: 1mm iron plate continuous cutting power consumption: 5 kWh/hour

Configuration for Fiber Laser Cutting Machine

Guideway , single piece structure

Precision ≤ ±0.02mm

X/Y axis Rack and gear，Taiwan HK brand, grinding DIN6 Grade precision

Taiwan HIWIN brand linear guide

* handheld wireless remote control *It can carry out follow-up control in all directions. The operation is simple and convenient. *Improve operator productivity.

Fume and dust extraction system (This machine price includes this System)

*The main frame adopts a gantry structure welded with all steel plate to guarantee long-term existence deformation.

*Machine bed is overall structure ,it is stable because of we do heat treatment

*The machine bed is milled by imported gantry milling in one time

*Adopting gantry rack double guide,double servo drive structure

*Improve the stability and rigidity of Y axis beam,to ensure the higher precision and higher dynamic performance of the beam movement.

*The high speed and smooth running of the shaft beam can reduce gas consumption.

The beam sliding table adopts integral casting aluminum parts, which can reduce the weight of the beam and ensure good stability, So that can meet the high-speed operation of the machine .

Water chiller

*Adopt domestic first-class brand, professional laser chiller, good stability, high precision

* With two-way temperature control, different temperature control can be performed on the laser and cutting head to ensure more stable laser and cutting head

*Functions include: water pressure alarm, high and low temperature alarm, voltage alarm, and various fault alarms.

*Use Original Germany precitec laser cutting head of top Germany Technology, Full sealed design , ensure long lifetime of mirrors.

* Laser beam is delivered to cutting head by original optical fiber cable

*Fiber cable is fixed to cutting head via QBH plug , realize easy plug in pull out of fiber cable .

*Laser beam goes through collimation lens to be aligned and achieve a better laser beam shape and quality

*Laser beam finds its focus via focusing lens unit.

* Protection lens prevents focus lens from cutting sprays and particle during cutting process.

*Height adjustment is a sensor unit inside cutting head , it can adjust height of laser cutting head automatically with high sense precision. It assists to achieve better cutting quality.

*Ceramic ring protects cutting head .

China famous brand Raycus laser source

*High beam quality output

* High reliability, long service life

*Can use air cutting to save costs

*High electro-optical conversion efficiency

* Compact design

*Optical output comes with a collimation output

*external computer control interface

Automatic lubrication system

Automatic lubrication system for Liner guide and Rack and pinion.which can easily lubricate smoothly and automatically, so that can ensure flexibility and stably of transmission system . Free maintenance and extend the lifetime of working tables.

SMC Proportional Valve

* It can automatically control 3 types of gas (O2,N2,compressor air)

*By this auto pressure control of cutting gas , it can easily and precisely control the cutting gas for different cutting shapes ,greatly improve the cutting precision of small hole ,short line… such small parts.

CYPCUT Control Software

*Nesting software optimized cutting path (read CAD drawing directly)

*Intuitive interface, perfect match with Auto CAD software.

*Software and height adjustment system communicate via net cable

*Flying cutting & Real-time power adjustment

*Cutting parameters material library

*PLC programming process

*Online troubleshooting recording

*Operational status recording

*Automatic boundary location function

*The use of closed control design: a good closed effect guarantees the control of the appliance's dust-free effect, providing protection for long hours of work.

*Configuration thermostatic air conditioning: to ensure constant temperature inside the control cabinet, to prevent the temperature changes caused by condensation in the control cabinet laser and electrical components.

*Waterproof design: The control cabinet is designed with 2 layers. There are no electrical appliances on the ground floor to deal with sudden flooding.
