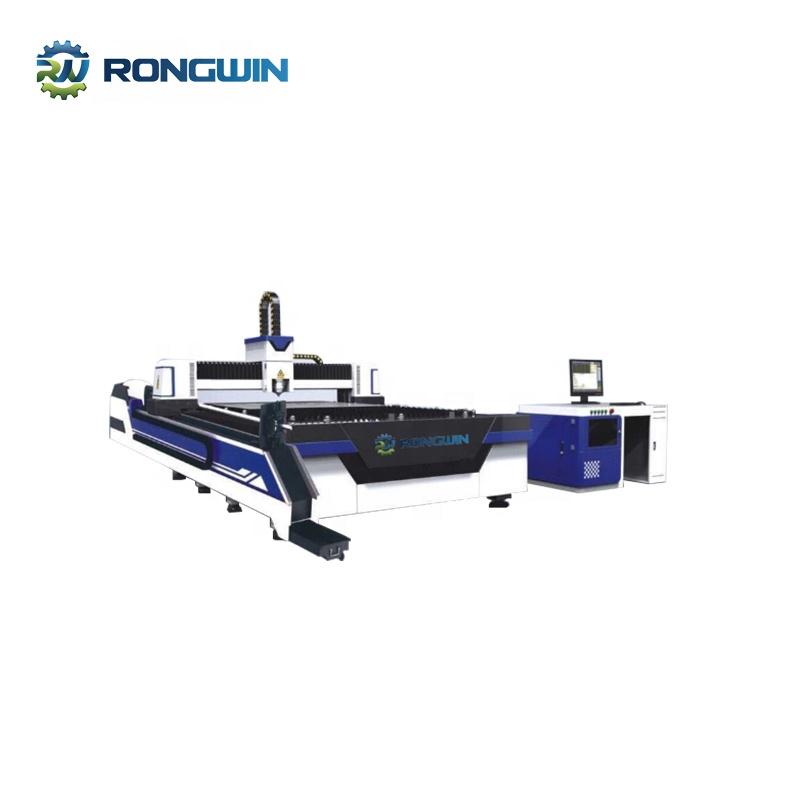

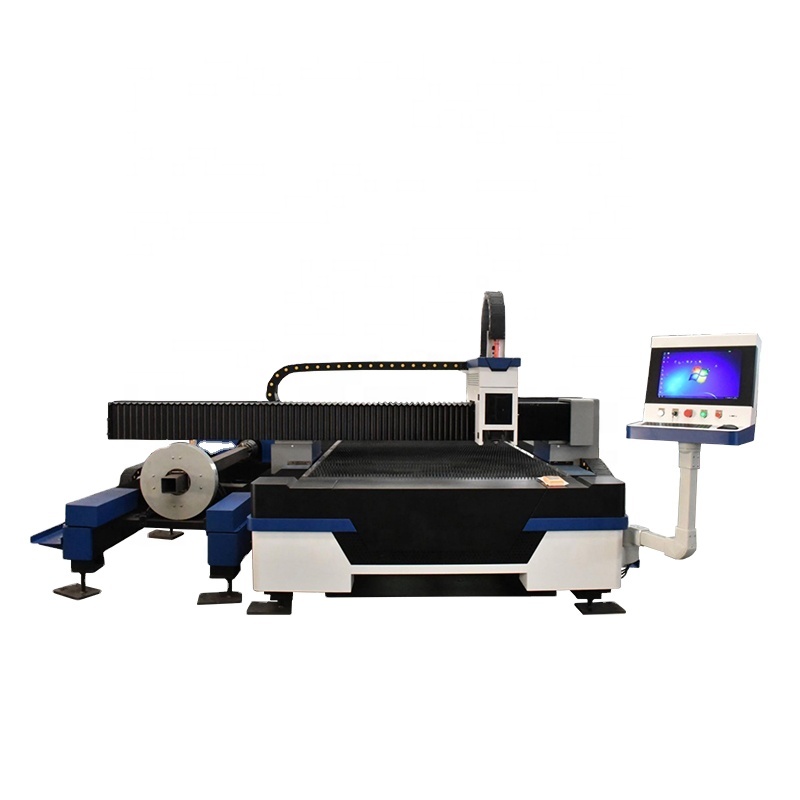

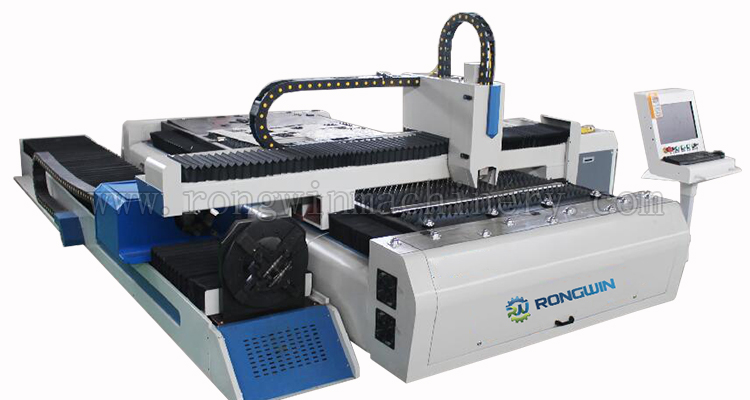

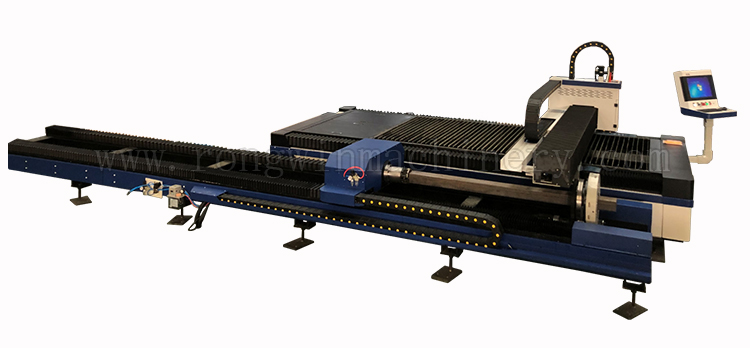

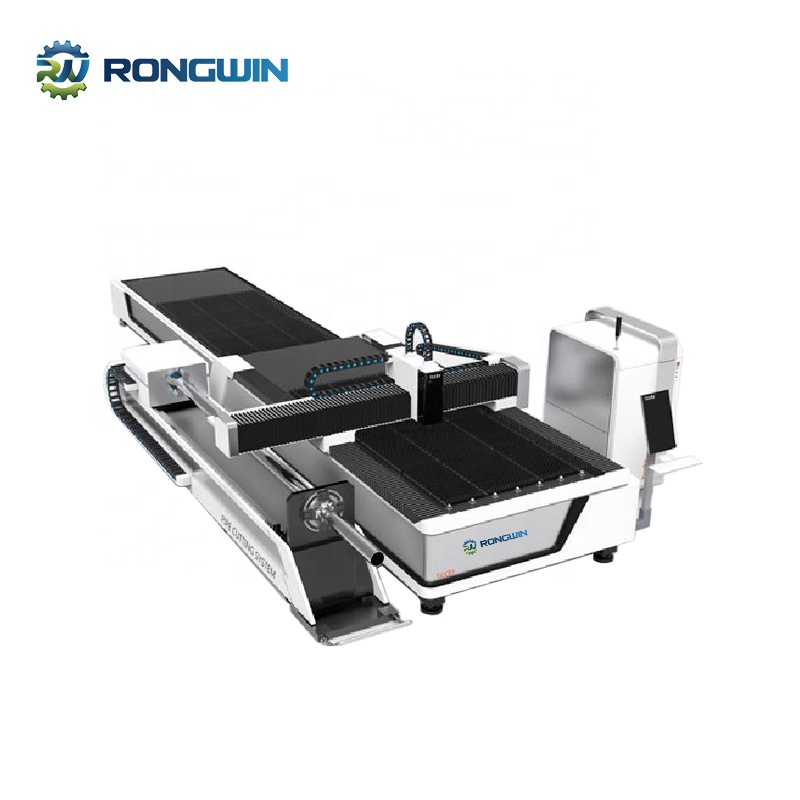

High quality double drive tube plate metal fiber laser cutting machine is equipped with the most
advanced international imported fiber laser source which generates powerful laser focused on objects
to cause instant melting and evaporation.Automatic cutting is controlled by digitalized mechanic system.
This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.
Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,
galvanized plate,alloy plate,rare metal.
Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical
equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.
High quality double drive tube plate metal fiber laser cutting machine features
A equipment can cut plates and tubes,cost-effective. Adopting cyptube software,can import three-dimensional software,graphics can be directly displayed on the
computer,convenient and intuitive. The unique design of fixed grasping function can realize the rapid cutting of different pipes. The unique material support design,ensure the smooth operation of cutting pipe.
★The main frame adopts the gantry structure and the whole bed is welded,to ensure the long term stability and no deformation
of the machine.
Gear, rack and guide line
Between the guide and rack using
Raytools high precision laser cutting head
★The internal structure of the laser head is completely sealed, and the dustproof grade reaches 6 grade to 7 grade,
which can avoid the dust pollution of the optical part;
★Modular design, high precision, easy maintenance.
★ Using domestic first-class brand, professional laser chiller, good stability, high precision.
★With two way temperature control, the laser and the cutting head can be controlled at different temperatures, the stability
of the laser and the cutting head can be guaranteed more effectively.
★This function includes: pressure alarm, high and low temperature alarm, abnormal voltage alarm, and fault alarm etc.
The beam sliding table adopts integral cast aluminum parts, which can reduce the weight of the
beam and ensure good stability, So that can meet the high-speed operation of the machine. X,Y,
Z three-axis drive with full servo motor, high precision, fast response.
SMC Proportional Valve
★ It can automatically control 3 types of gas (O2,N2,compressor air)
★ By this auto pressure control of cutting gas, it can easily and precisely control the cutting gas for different cutting shapes,
greatly improve the cutting precision of small hole, short line… such small parts.
★ A closed control design is adopted: a good closed effect ensures the control of the dust effect of the electrical apparatus.
Provide security for long time work
★ Configuring constant temperature air conditioning: ensure the internal thermostat of the control cabinet, prevent temperature
change and cause the laser and electrical components to be dampened
★ Waterproof design: the control cabinet has been designed for 2 layers. The bottom without any electrical appliances, can deal
with sudden flood events.
Air compression system (optional)
A variety of laser power supply options
